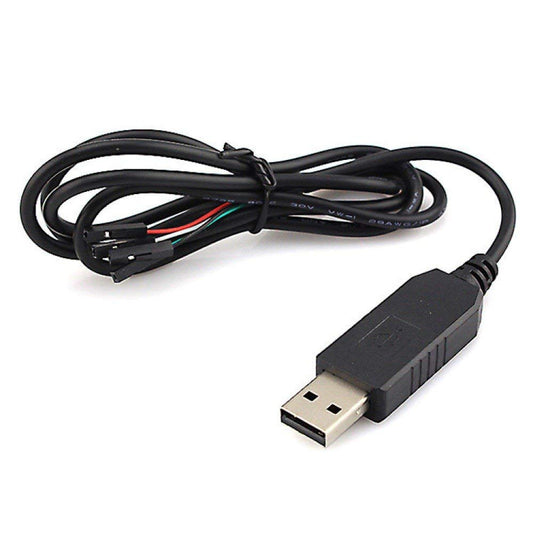

PL2303HX USB To TTL Converter Cable
PL2303HX USB To TTL Converter Cable
PL2303HX USB To TTL Converter Cable
Reliable USB to TTL serial converter cable powered by the Prolific PL2303HX chipset, enabling seamless UART communication between your PC and microcontrollers, routers, SBCs, and embedded devices. Ideal for flashing firmware, debugging serial consoles, and interfacing with Arduino, ESP8266, Raspberry Pi, and more. Available at The Tech Depot, Bengaluru with fast shipping and full technical support.
Specifications
| Chipset | Prolific PL2303HX |
| Interface | USB 2.0 (Type-A) to TTL Serial (UART) |
| Logic Level Output | 3.3V TTL |
| Supported Baud Rates | 75 bps to 6 Mbps |
| Signal Pins | TXD, RXD, GND, VCC (3.3V/5V), RTS, CTS (varies by version) |
| VCC Output | 5V (from USB bus) & 3.3V TTL logic |
| Cable Length | Approximately 1 meter |
| Connector Type | USB Type-A male to 4-pin DuPont female headers |
| OS Compatibility | Windows XP/7/8/10/11, Linux, macOS (driver dependent) |
| Driver | Prolific PL2303 driver (free download from Prolific website) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Mark, Space |
| Operating Temperature | -40 degreesC to 85 degreesC |
| Type | USB to Serial Converter Cable |
| Origin | Original/Authentic PL2303HX Chipset |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Prolific PL2303HX Chipset: Industry-standard USB-to-serial bridge IC ensuring stable, high-speed UART communication up to 6 Mbps.
- Plug-and-Play Convenience: Simple USB connection with standard DuPont female pin headers for quick hookup to breadboards, microcontrollers, and development boards.
- 3.3V/5V Dual Voltage Support: TTL logic operates at 3.3V while VCC pin supplies 5V from USB bus - compatible with both 3.3V and 5V target devices.
- Wide Baud Rate Range: Supports baud rates from 75 bps up to 6 Mbps, accommodating virtually any serial communication requirement.
- Cross-Platform Driver Support: Works with Windows, Linux, and macOS with freely available Prolific drivers; native support on most Linux distributions.
- Color-Coded Wires: Each wire is clearly color-coded (typically Red=VCC, Black=GND, White=RXD, Green=TXD) for easy and error-free wiring.
- Compact & Portable: Lightweight cable design with approximately 1-meter length - perfect for bench work, field debugging, and portable toolkits.
- Full UART Protocol Support: Configurable data bits, stop bits, and parity settings for maximum flexibility across different serial protocols.
Why Choose This?
- 100% authentic PL2303HX chipset sourced from trusted suppliers - no counterfeit clones
- 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse to most locations across India
- Expert technical support included - get help with driver installation, wiring, and troubleshooting
- Essential tool for every electronics workbench, maker space, and embedded development lab
- Proven reliability with thousands of units deployed in hobbyist and professional projects
Common Applications & Project Ideas
- Arduino Serial Programming: Upload sketches to Arduino Pro Mini, bare ATmega328P chips, and other boards lacking onboard USB - connect TXD, RXD, GND, and VCC, open Arduino IDE, select the COM port, and flash directly.
- ESP8266/ESP32 Firmware Flashing: Flash NodeMCU firmware, MicroPython, or custom binaries onto ESP modules. Pull GPIO0 low, connect serial lines, and use esptool.py for reliable uploads.
- Raspberry Pi Serial Console: Access the Raspberry Pi's UART console for headless setup, kernel debugging, and boot troubleshooting without needing a monitor or SSH connection.
- Router & Modem Serial Access: Tap into the serial debug console of OpenWrt routers, cable modems, and networking equipment for firmware recovery, configuration, and low-level diagnostics.
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
