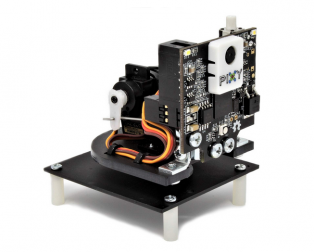

PIXY Pan and Tilt Mechanism for Pixy2.1 Smart Vision Camera

The PIXY Pan and Tilt Mechanism is a motorized servo-driven accessory designed to expand the field-of-view capabilities of the Pixy2.1 smart vision camera by enabling dynamic horizontal and vertical tracking. Professional roboticists, computer vision engineers, and automation specialists use this mechanism to create intelligent surveillance systems, autonomous mobile robots, and adaptive visual inspection platforms that require real-time object tracking and dynamic scene monitoring. This mechanism solves the critical limitation of fixed-camera vision systems by providing programmable pan and tilt control, allowing the camera to follow moving objects, scan large areas, and maintain target lock without requiring the entire robot chassis to reposition.

Product Overview

The PIXY Pan and Tilt Mechanism operates on a dual-servo architecture with independent horizontal and vertical axes of rotation, enabling 360-degree pan capability and approximately 180-degree tilt range. The mechanism integrates seamlessly with Pixy2.1 through a dedicated I2C interface and can be controlled via PWM signals from the camera's output pins or an external microcontroller. The servo motors provide smooth, continuous rotation with high positional accuracy, allowing the camera to track objects in real-time as detected by Pixy2.1's onboard vision processing engine. The mechanical design features a lightweight aluminum or composite frame that minimizes inertia, ensuring rapid response times critical for tracking fast-moving targets in robotics competitions and industrial applications.

This accessory leverages Pixy2.1's built-in object detection algorithms to create a closed-loop tracking system where detected objects trigger proportional servo adjustments. The mechanism supports both absolute positioning mode for scanning predetermined waypoints and continuous tracking mode for dynamic object following. The integrated mounting bracket is precision-engineered to maintain optical alignment while accommodating the mechanical stress of rapid pan-tilt movements. Power requirements are typically 5V at 500mA during active operation, making it compatible with standard robot power systems and development boards like Arduino and Raspberry Pi when used with appropriate servo drivers.

Key Specifications

Key Features

• 360-Degree Continuous Pan Rotation with high-torque servo motors enabling unlimited horizontal scanning for wide-area surveillance and perimeter monitoring applications
• 180-Degree Tilt Range providing vertical field-of-view adjustment from downward-facing inspection to upward-facing tracking scenarios in multi-level environments
• I2C and PWM Control Interface allowing direct integration with Pixy2.1 camera output pins or external microcontrollers like Arduino and Raspberry Pi for flexible system architecture
• Sub-100ms Tracking Latency delivering real-time object following performance critical for competitive robotics, autonomous navigation, and dynamic target acquisition
• Precision Servo Calibration with repeatable positional accuracy of plus-minus 2 degrees, ensuring stable camera framing and reliable object tracking in vision-guided applications
• Lightweight Aluminum Construction minimizing mechanical inertia and power consumption while maintaining structural rigidity under continuous servo operation
• Integrated Mounting Bracket with optical alignment features maintaining camera calibration integrity through repeated pan-tilt movements and mechanical stress cycles

Applications and Use Cases

• Competitive Robotics Platforms including FIRST Robotics and RoboCup competitions where autonomous vision-guided robots must track game pieces, opponents, and field targets in real-time for strategic gameplay
• Industrial Quality Inspection Systems using the mechanism to automate visual inspection of assembly lines, PCB manufacturing, and precision component verification with dynamic camera repositioning
• Autonomous Mobile Robot Navigation enabling self-driving platforms to maintain visual lock on navigation markers, obstacles, and environmental features while moving through complex indoor and outdoor environments
• Security and Surveillance Systems implementing intelligent video monitoring with object tracking capabilities for perimeter security, crowd monitoring, and incident detection in commercial and industrial facilities
• Educational Robotics Projects providing students and hobbyists with hands-on experience in computer vision integration, servo motor control, and real-time embedded systems programming using accessible hardware
• Drone and Aerial Platform Stabilization allowing unmanned aerial vehicles to maintain camera focus on ground targets during flight, enabling aerial photography, mapping, and reconnaissance applications

How to Use

Begin by securely mounting the PIXY Pan and Tilt Mechanism to your robot chassis or mounting structure using the provided bracket and fasteners, ensuring the mechanism is balanced and the camera optical axis is properly aligned with your target area. Connect the servo control pins to your microcontroller or directly to Pixy2.1 camera output pins if using I2C mode, and verify power supply connectivity to the 5V input with adequate current capacity. Upload or configure your control firmware to enable object detection and servo tracking logic, typically using Pixy2.1's PixyMon configuration software to set detection parameters for your specific target objects or color signatures.

For real-time tracking operation, configure the servo control loop to receive x-y coordinate data from Pixy2.1's detected objects and translate these coordinates into proportional pan and tilt servo commands using a PID control algorithm. Start with conservative servo speed settings and gradually increase responsiveness while monitoring for oscillation or overshoot in tracking performance. Test your system in controlled lighting conditions first, then expand to your operational environment. Calibrate the servo center positions using PixyMon or your microcontroller interface to ensure the camera points to the desired default direction. Perform regular mechanical inspection of servo gears and linkages for wear, especially in high-cycle applications, and apply appropriate lubrication to maintain smooth operation and extend component lifespan.
