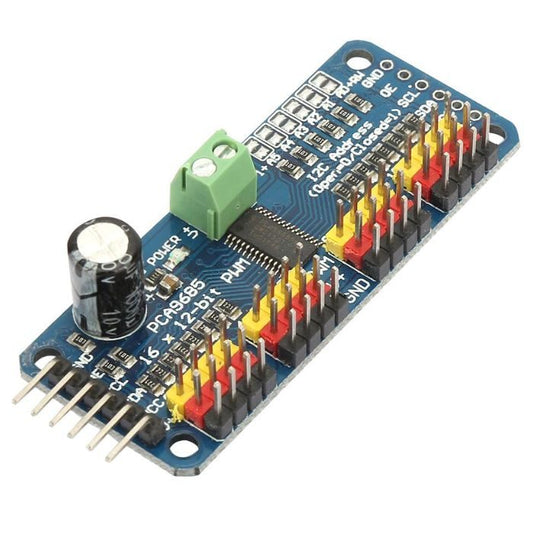

PCA9685 16 Channel Servo Motor Driver (Soldered)
Control up to 16 servo motors simultaneously using just two I2C pins with this pre-soldered PCA9685 PWM driver board from The Tech Depot, Bengaluru. Ready to use right out of the box - no soldering required. Ideal for robotic arms, hexapods, animatronics, and any project demanding precise multi-servo coordination. Fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Driver IC | PCA9685 (NXP) |
| PWM Channels | 16 independent channels |
| Resolution | 12-bit (4096 steps per channel) |
| PWM Frequency | Adjustable from 24 Hz to 1526 Hz |
| Communication | I2C interface (SDA/SCL) |
| I2C Addresses | Up to 62 stackable (default 0x40), supporting 992 servos total |
| Logic Voltage | 3.3V - 5V compatible |
| Servo Power Input | V+ terminal block, 5V - 6V recommended for standard servos |
| Max Current per Channel | ~25 mA (signal); external V+ supplies servo power |
| Output Type | Open-drain with 220Ohm series resistors & totem-pole option |
| Connector Type | Pre-soldered 3-pin male headers per channel (Signal/V+/GND) |
| Board Dimensions | ~62 mm x 25 mm |
| Assembly Status | Fully soldered - headers and terminal block pre-attached |
| Compatibility | Arduino, Raspberry Pi, ESP32, ESP8266, STM32, and any I2C-capable microcontroller |
| Library Support | Adafruit PWM Servo Driver Library (Arduino), adafruit-circuitpython-pca9685 (Python) |
| Origin | Original/Authentic PCA9685 IC |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose This?
- Pre-soldered and ready to go - skip the soldering iron and start building immediately
- 16 channels, 2 wires - free up precious GPIO pins by controlling all servos over a single I2C bus
- 12-bit precision - 4096-step resolution delivers smooth, jitter-free servo movement
- Stackable design - chain up to 62 boards for a staggering 992 PWM outputs on one bus
- Dedicated servo power input - external V+ terminal prevents brownouts and protects your microcontroller
- Universal compatibility - works seamlessly with Arduino, Raspberry Pi, ESP32, and more
- Extensive library support - well-documented Adafruit libraries for both Arduino IDE and Python
- 100% authentic PCA9685 IC sourced from trusted, authorized distributors
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse to most locations across India
- Expert technical support included to help you wire, code, and troubleshoot
Project Ideas
- Robotic Arm Control: Drive 6+ servo joints with precise angular positioning for pick-and-place robots or 3D-printed robotic arms.
- Hexapod & Quadruped Robots: Coordinate 12-18 leg servos simultaneously for smooth walking gaits and dynamic movement.
- Animatronics & Props: Build lifelike animatronic faces, Halloween props, or cosplay mechanisms with synchronized multi-servo motion.
- Pan-Tilt Camera Systems: Create smooth dual-axis camera mounts for surveillance, FPV tracking, or automated photography rigs.
- RC Vehicle Upgrades: Manage steering, throttle, and auxiliary servos in custom RC cars, boats, or aircraft builds.
- LED Dimming & Lighting: Use the 12-bit PWM channels to independently dim up to 16 LED strips or individual high-power LEDs.
- Home Automation: Automate window blinds, vent dampers, or door locks using servo-driven actuators controlled via Raspberry Pi or ESP32.
- Educational Kits: Perfect for classroom robotics courses, STEM workshops, and university embedded systems labs to teach I2C communication and PWM concepts.
How to Connect
| PCA9685 Pin | Microcontroller Pin (Arduino UNO Example) |
| VCC | 5V or 3.3V |
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
