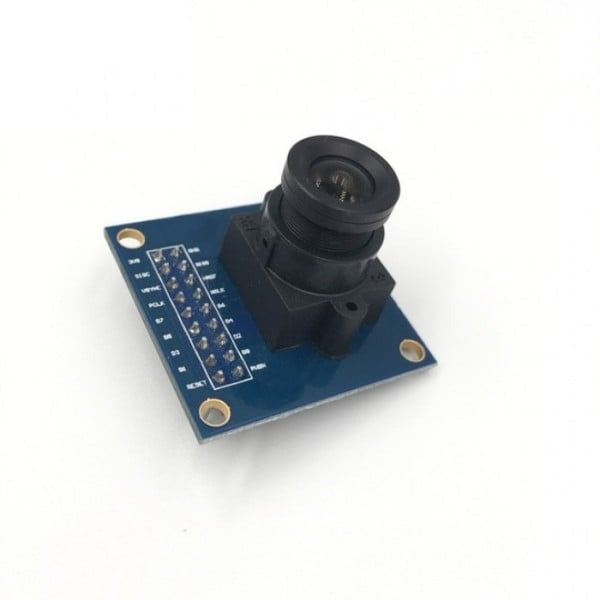

OV7670 640x480 VGA CMOS Camera Image Sensor Module

The OV7670 is a compact VGA CMOS image sensor module delivering 640x480 pixel resolution, widely used by embedded systems engineers, robotics developers, and IoT specialists for real-time video capture and image processing applications. This module integrates a complete optical system with CMOS sensor technology, providing low-power operation and straightforward digital interface connectivity for microcontroller-based projects. It solves the challenge of adding affordable, compact vision capabilities to Arduino, Raspberry Pi, and ARM-based embedded systems without requiring external lens assemblies or complex image processing pipelines.

Product Overview

The OV7670 operates on a single-chip CMOS architecture that converts optical images into digital signals through photodiode arrays arranged in a 640x480 grid. The sensor employs rolling shutter technology with on-chip color filter arrays (Bayer pattern) to capture full-color images. The module includes integrated timing control circuits, analog-to-digital conversion, and digital signal processing blocks that output data via parallel or I2C interfaces. This architecture enables direct integration with standard microcontroller platforms, eliminating the need for external image processing hardware and significantly reducing system complexity and power consumption.

What distinguishes the OV7670 is its exceptional balance of performance, cost-effectiveness, and ease of integration. The module operates at 3.3V with typical power consumption of 150mW during active image capture, making it suitable for battery-powered applications. The sensor features programmable exposure control, automatic white balance, automatic gain control, and color saturation adjustment through I2C register configuration. Its compact form factor (approximately 8mm x 8mm optical window) and standard pinout make it compatible with numerous development boards and custom PCB designs, while the extensive availability of open-source libraries and example code accelerates project development cycles.

Key Specifications

Key Features

• 640x480 VGA Resolution: Delivers crisp, detailed image capture suitable for surveillance, object detection, and visual odometry applications in robotics projects
• Low Power CMOS Architecture: Consumes only 150mW during operation, enabling extended battery life in portable and IoT-based vision systems
• Programmable Image Controls: I2C-based register configuration allows real-time adjustment of exposure, gain, white balance, and color saturation without hardware modifications
• Integrated Timing and Signal Processing: On-chip circuits eliminate external timing generators and analog signal conditioning requirements, reducing BOM complexity
• Compact Form Factor: 8mm x 8mm optical window with standard pinout fits directly into custom PCBs or development board camera connectors
• High Frame Rate Capability: Achieves 30 fps at full VGA resolution and up to 60 fps at QVGA or lower resolutions for real-time video streaming applications
• Wide Operating Temperature Range: Functions reliably from 0°C to 50°C, suitable for indoor and outdoor embedded vision deployments

Applications and Use Cases

• Robotics and Autonomous Navigation: Enables visual odometry, obstacle avoidance, and line-following algorithms on mobile robots using Arduino or Raspberry Pi platforms with real-time 30 fps video processing
• IoT Surveillance Systems: Provides affordable video capture for smart home security cameras, wildlife monitoring stations, and remote surveillance applications with low bandwidth requirements
• Machine Vision Inspection: Supports quality control systems in manufacturing environments for defect detection, barcode reading, and dimensional verification using embedded image processing
• Educational Embedded Systems Projects: Ideal for university-level courses in digital signal processing, computer vision, and embedded systems where students need hands-on experience with real image sensors
• Face and Gesture Recognition: Captures sufficient resolution for training and deploying OpenCV-based facial recognition and hand gesture detection algorithms on edge devices
• Agricultural Monitoring: Enables crop health assessment, pest detection, and environmental monitoring in precision agriculture IoT systems with minimal power overhead

How to Use

To integrate the OV7670 module with your embedded system, first establish electrical connections: connect VCC to 3.3V regulated supply, GND to system ground, and the I2C interface (SIOC for clock, SIOD for data) to your microcontroller's I2C pins. The 8-bit parallel data bus (D0-D7) connects directly to GPIO pins configured as inputs, while VSYNC, HSYNC, and PCLK signals synchronize data capture with your processor's interrupt handlers. Configure your microcontroller's I2C peripheral for 400kHz operation and initialize the OV7670 by writing default register values through the SCCB protocol to set resolution, frame rate, and image quality parameters.

Once hardware connections are verified, load the appropriate firmware library for your platform (ArduCAM libraries for Arduino, picamera alternatives for Raspberry Pi) and configure the image capture resolution, output format, and frame rate through register writes. Implement interrupt handlers for VSYNC and PCLK signals to synchronize data reading from the parallel bus into your system's memory buffer. Test image capture by saving raw frames to SD card or transmitting over UART for verification. Fine-tune exposure and white balance registers iteratively based on your lighting conditions and application requirements. For optimal performance in varying light conditions, enable automatic exposure control (AEC) and automatic white balance (AWB) features through register configuration while monitoring frame quality.
