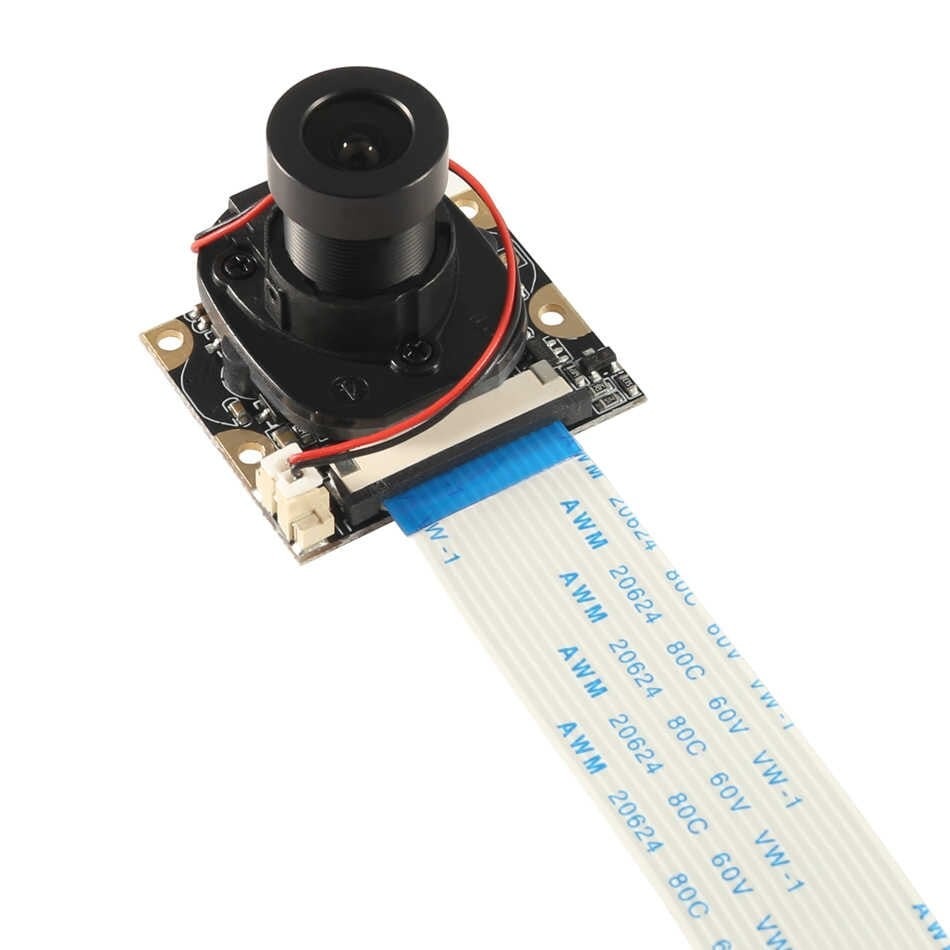

The OV5647 is a 5-megapixel camera module specifically engineered for Raspberry Pi 3 and Raspberry Pi 4 single-board computers, delivering 1080p full HD video recording at 30fps with integrated IR-cut filter technology. Professional developers, IoT engineers, and robotics enthusiasts rely on this module to build computer vision applications, surveillance systems, and automated monitoring solutions that require reliable image capture in varying light conditions. This camera solves the critical challenge of capturing accurate color imagery during daylight while seamlessly switching to infrared-sensitive mode for low-light and night-vision applications without manual hardware reconfiguration.
Specifications
| Specification | Details |
| Product Type | CSI Camera Module for Raspberry Pi |
| Brand | OmniVision OV5647 |
| Origin | Original/Authentic |
| Sensor Resolution | 5 Megapixel (2592x1944) |
| Video Resolution | 1080p Full HD at 30fps |
| Sensor Size | 1/4 inch OmniVision CMOS |
| Lens Aperture | f/2.0 fixed focus |
| IR-Cut Filter | Manual motorized switching mechanism |
| Interface | 15-pin CSI Ribbon Connector |
| Power Consumption | 250mA typical operation |
- Product Type: CSI Camera Module for Raspberry Pi
- Brand: OmniVision OV5647
- Origin: Original/Authentic
- Support: reliable via Email and WhatsApp
- Sensor Resolution: 5 Megapixel (2592x1944)
- Video Resolution: 1080p Full HD at 30fps
- Sensor Size: 1/4 inch OmniVision CMOS
Why Choose OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 34 with Manual Day Night Mode?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 34 with Manual Day Night Mode
- 5 Megapixel resolution with 1080p 30fps video recording capability delivers professional-grade image quality for surveillance, monitoring, and computer vision projects on Raspberry Pi platforms
- Motorized IR-cut filter with manual day-night mode switching allows seamless transitions between color daylight imaging and infrared-sensitive night vision without hardware modifications
- Native CSI interface with 15-pin ribbon connector provides direct integration to Raspberry Pi 3 and Pi 4 boards with minimal latency and maximum bandwidth utilization for real-time video processing
- Fixed f/2.0 lens with 25mm focal length optimized for 0.5 to 3-meter focusing range ensures sharp imagery in typical indoor surveillance and robotics applications
- Advanced Bayer color filter array processing with integrated noise reduction delivers accurate color reproduction during daylight operation while maintaining infrared sensitivity in darkness
- Low power consumption at 250mA typical operation enables extended battery-powered deployment for portable monitoring systems and remote IoT applications
- Payment Options: UPI, credit/debit cards, net banking, EMI available
Perfect For
- Home security and surveillance systems requiring reliable monitoring capability with automatic day-night mode switching for accurate color recording during business hours and infrared night vision for after-hours detection
- Robotics and autonomous vehicle projects utilizing computer vision for obstacle detection, line following, and environmental mapping with adaptive imaging across varying ambient light conditions
- Wildlife monitoring and nature observation stations deployed in remote locations where infrared capability captures nocturnal animal behavior while daylight mode records natural color imagery for species identification
- Industrial quality inspection and process monitoring applications requiring high-resolution image capture for defect detection, dimensional analysis, and production line verification with consistent performance across factory lighting conditions
- Agricultural IoT systems for crop health monitoring, pest detection, and environmental sensing where IR imaging reveals plant stress indicators invisible to human vision while color mode documents field conditions
- Research and educational projects in machine learning, image processing, and embedded systems development leveraging the OV5647's accessibility and extensive community support documentation
How to Use
Installation begins with powering down your Raspberry Pi and locating the Camera Serial Interface (CSI) ribbon connector, typically positioned between the USB ports and HDMI output. Gently lift the black retention clip on the CSI connector, insert the 15-pin ribbon cable from the OV5647 module with the blue tape facing toward the USB ports, then press the retention clip downward until it seats firmly. Enable the camera interface through raspi-config utility by navigating to Interfacing Options and selecting Camera, then reboot your Raspberry Pi to activate the CSI bus and load necessary kernel drivers.
Control the IR-cut filter switching through Python GPIO libraries or command-line tools by assigning a GPIO pin to trigger the motorized filter mechanism. Use raspistill or raspivid commands for basic image and video capture, or leverage advanced libraries like OpenCV and picamera for real-time video processing and computer vision applications. The manual day-night mode switching is typically controlled via GPIO pin 17 or 27, where a HIGH signal engages the IR-cut filter for daylight color imaging and a LOW signal retracts the filter for infrared night vision. Consult the detailed pinout documentation and community resources available on Raspberry Pi forums and GitHub repositories for project-specific implementation guidance and code examples.
Product Overview
The OV5647 camera module operates on the Raspberry Pi Camera Serial Interface (CSI), utilizing a 1/4-inch OmniVision sensor with 2592x1944 pixel native resolution and advanced Bayer color filter array processing. The integrated IR-cut filter mechanism uses a motorized sliding filter that blocks infrared wavelengths during daylight operation for accurate color reproduction, then retracts to allow full infrared spectrum capture in low-light conditions. This dual-mode capability is achieved through the manual day-night switching mechanism, which users control via GPIO pins or software commands, eliminating the need for separate camera modules for different lighting scenarios.
The module connects directly to the Raspberry Pi's 15-pin CSI ribbon connector, requiring minimal external circuitry while delivering exceptional image quality through advanced lens correction algorithms and noise reduction processing. The fixed-focus lens with f/2.0 aperture provides optimal depth-of-field for typical surveillance and monitoring distances of 0.5 to 3 meters, while the 25mm focal length ensures wide field-of-view capture suitable for room-scale monitoring and environmental sensing applications. Video output supports multiple formats including H.264 codec at various bitrates, making it ideal for bandwidth-constrained IoT deployments and edge computing scenarios.
Frequently Asked Questions
What is the difference between the OV5647 and OV5647 with IR-cut filter?
The standard OV5647 lacks infrared filtering and captures full spectrum including IR wavelengths, resulting in poor color accuracy under daylight due to excessive infrared contamination. The OV5647 with motorized IR-cut filter includes a mechanical sliding filter that blocks infrared during daylight operation for accurate color reproduction, then retracts in low-light conditions to enable infrared sensitivity. This dual-mode capability requires GPIO control for filter switching but eliminates the need for separate camera modules for day and night operation.
Is the OV5647 compatible with Raspberry Pi Zero and older Pi models?
The OV5647 requires a 15-pin CSI connector, which is present on Raspberry Pi 1 Model B+, Pi 2, Pi 3, and Pi 4. Raspberry Pi Zero and Zero W feature a smaller 22-pin CSI connector and require a ribbon cable adapter for compatibility. Older Raspberry Pi Model A and B lack CSI connectors entirely and cannot use this camera module. Always verify your Raspberry Pi model has the standard 15-pin CSI interface before purchasing.
How do I control the IR-cut filter switching in my Python code?
Import the RPi.GPIO library and configure a GPIO pin as output. Set the pin HIGH to engage the IR-cut filter for daylight color imaging, and set it LOW to retract the filter for infrared night vision. For example, GPIO.output(17, GPIO.HIGH) activates the filter, while GPIO.output(17, GPIO.LOW) deactivates it. You can automate switching based on ambient light sensor readings or time-of-day logic to create intelligent day-night mode transitions. Refer to the camera module documentation for the specific GPIO pin assignment and filter activation polarity for your hardware revision.
What video formats and codecs does the OV5647 support?
The OV5647 outputs raw Bayer sensor data to the Raspberry Pi's CSI interface, where the GPU performs real-time H.264 video encoding. Supported video formats include 1080p at 30fps, 720p at 60fps, and VGA resolution at higher frame rates. The picamera library abstracts codec selection, automatically using H.264 for video recording and MJPEG for streaming applications. Advanced users can access raw sensor data for custom processing pipelines using libraries like libcamera on newer Raspberry Pi OS distributions.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
