OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 34 with Automatic Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 34 with Automatic Day Night Mode
Shipping calculated at checkout.
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 34 with Automatic Day Night Mode
The OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 withAutomatic Day Night Mode Switchingis a custom designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the small sockets on the board upper surface. This uses the dedicated Raspberry Pi's onboard CSI interface, designed especially for interfacing to cameras.
The camera supports night vision. It is compatible with all revisions of the Pi. Powered with a 5-megapixel OV5647 sensor,its best resolution is 1080p.
Specifications
| Sensor | OV5647, 5 megapixel |
| Video | 1080p |
| Compatibility | Raspberry Pi 3 / 4 |
| Feature | IR-cut filter with automatic day/night switching |
Why Choose OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 34 with Automatic Day Night Mode?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 34 with Automatic Day Night Mode
- Raspberry Pi Camera, supports all revisions of the Pi
- Embedded IR-CUT filter, eliminating colour distortion due to IR light in the daylight
- Comes with infrared LED, supports night vision
- 5-megapixel OV5647 sensor
- Can Attach IR LEDs if Night Vision mode is required
- The screw hole on the camera is used to both fix the infrared lights and through the power for the lights.
- Automatic IR-cut switching removes the infrared filter at night for clearer low-light footage, then restores it in daylight for accurate colour
- OV5647 sensor delivers 1080p video suitable for surveillance-grade footage
- Connects to the Pi's standard CSI camera port for direct compatibility
- OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 34 with Automatic Day Night Mode
Perfect For
- Day/night home or workshop security cameras on Raspberry Pi
- Outdoor monitoring where lighting conditions change through the day
- Wildlife or driveway camera projects needing usable night footage
- Security and surveillance camera builds
- Computer-vision and object-detection projects on Raspberry Pi
- Robotics vision and line-following systems
Package Includes:
1 xOV5647 5MP 1080P IR-Cut Camera
1 x 15-pin FFC Ribbon cable Strip (opposite sides contact)
Why you need IR-Cut Sensor on Camera?
While normal cameras will take reddish pictures during the daylight because of lacking IR filter in the CCD, this RPi IR cut camera can take the much better quality picture at a resolution of up to 1080p during both day and night.

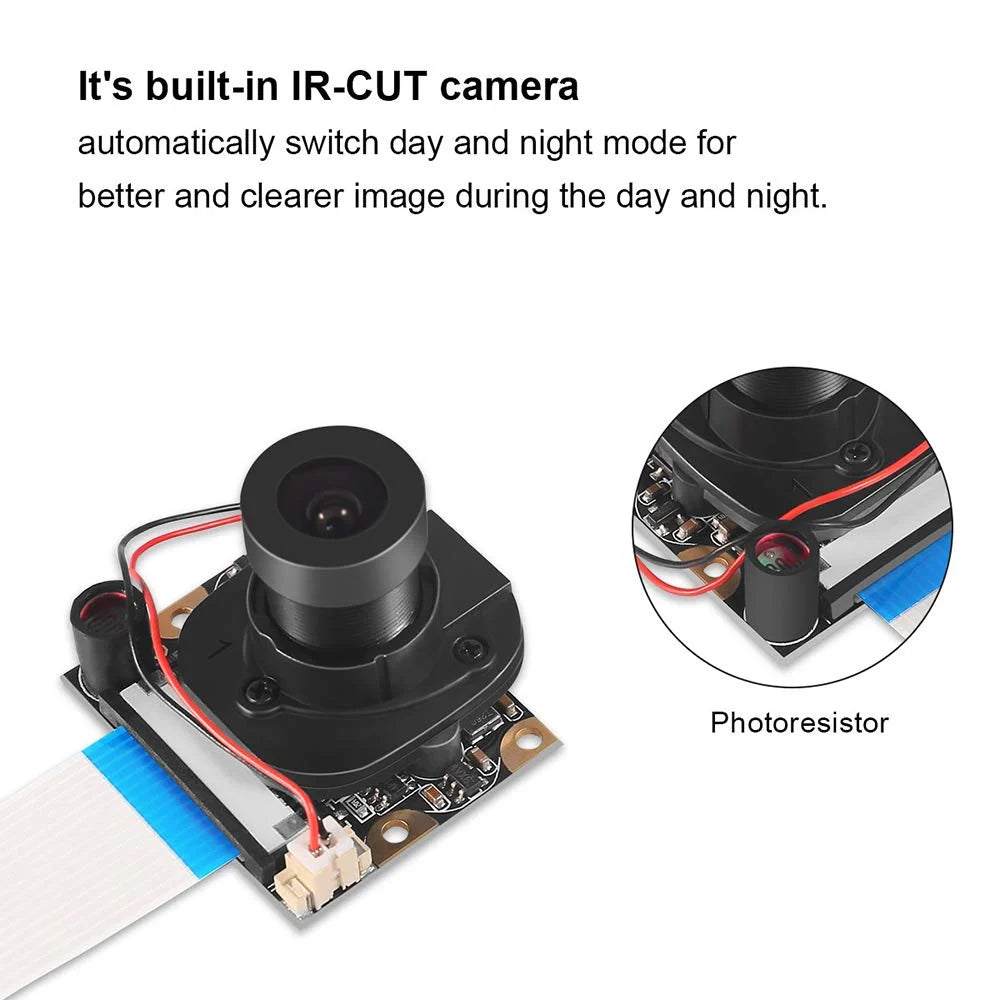

The Externally attachableIR LED that helps the night vision function. The Mounting HolesProvides 3.3V power output Supports connecting infrared LED and/or fill flash LED.It has onboard photoresistor, the ambient light detector to provide automaticday andnight mode Switching. An adjustable resistor is provided on it to control the ambient light threshold of toggling the infrared LED when ambient light is lower than the threshold value, the infrared LED is on, vice versa. Onboard screw holes are used for both attachment and power supply.
It connects to Raspberry Pi by way of a short ribbon cable. The sensor itself has a native resolution of 5 megapixels and has a fixed focus lens. In terms of still images, thecamera is capable of 2592 x 1944 pixel static images,and also supports 1080p 30, 720p 60 and 640x480p 60/90 video.
The camera is supported in the latest version of Raspbian, Raspberry Pi's preferred operating system.
We also haveManualDay/Night Mode switching camerawith same specifications, check it outhere
