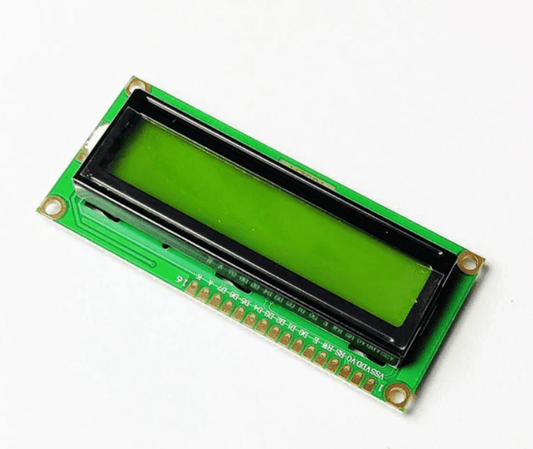

Original JHD 16x2 LCD Display - Green
Display text, data, and sensor readings with the trusted Original JHD 16x2 LCD Display with green backlight. Manufactured by JHD - one of the most recognized names in character LCD modules - this display offers a crisp green backlight with dark characters, delivering excellent readability for embedded projects, instruments, and DIY builds. Featuring the industry-standard HD44780-compatible controller, it integrates seamlessly with Arduino, Raspberry Pi, STM32, PIC, 8051, and virtually any microcontroller platform. Available now from The Tech Depot, Bengaluru with fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Key Features
- Genuine JHD Module: Authentic JHD-manufactured LCD - not a generic clone - ensuring consistent quality, reliable performance, and long operational life.
- 16 Characters x 2 Lines: Display up to 32 characters simultaneously across two rows, ideal for menus, status messages, sensor values, and real-time data.
- Green Backlight with Dark Characters: High-contrast green/yellow-green backlight with black text provides comfortable viewing in both well-lit and dimly lit environments.
- HD44780-Compatible Controller: Built-in controller supports the standard HD44780 command set, making it compatible with thousands of existing libraries and code examples.
- Dual Interface Modes: Operates in 4-bit or 8-bit parallel data mode - use 4-bit mode to save microcontroller I/O pins or 8-bit mode for faster data transfer.
- Built-in Character Generator: Pre-loaded with 208 standard characters (letters, numbers, symbols) plus the ability to define up to 8 custom characters (icons, special symbols, progress bars).
- Adjustable Contrast: Simple potentiometer connection on the V0 pin allows fine-tuning of display contrast for optimal readability at any viewing angle.
- Backlight Control: Dedicated LED anode (A) and cathode (K) pins allow you to switch the backlight on/off or dim it using PWM for power-saving applications.
- Standard 16-Pin Header Interface: Industry-standard pinout ensures drop-in compatibility with breadboards, PCB sockets, and LCD shield modules.
- Wide Operating Voltage: Operates on a standard 5V supply, with the display logic compatible with most 5V microcontrollers out of the box.
- The Tech Depot Construction: Durable PCB mounting with secure solder connections, sturdy bezel, and scratch-resistant LCD glass suitable for prototyping and permanent installations alike.
Specifications
| Manufacturer | JHD (Original) |
| Display Type | STN (Super Twisted Nematic) Character LCD |
| Display Format | 16 Characters x 2 Lines |
| Character Size | 5x8 dot matrix per character |
| Backlight Color | Green (Yellow-Green) |
| Character Color | Dark / Black |
| Controller / Driver | HD44780 compatible (SPLC780D or equivalent) |
| Interface | Parallel - 4-bit or 8-bit selectable |
| Number of Pins | 16 (standard pinout) |
| Operating Voltage (VDD) | 4.7V - 5.3V (Typical 5V) |
| Backlight Voltage | ~4.2V (with current-limiting resistor recommended) |
| Backlight Current | ~120mA (typical) |
| Operating Current (without backlight) | ~1.5mA |
| Contrast Adjustment | Via external potentiometer on V0 pin (10KOhm recommended) |
| Built-in Characters | 208 pre-programmed + 8 user-definable (CGRAM) |
| Viewing Angle | 6 o'clock (bottom viewing preferred) |
| Operating Temperature | 0 degreesC to +50 degreesC |
| Storage Temperature | -10 degreesC to +60 degreesC |
| Module Dimensions | ~80mm x 36mm x 12mm (L x W x H) |
| Viewing Area | ~64.5mm x 16mm |
| Mounting Holes | 4 corner holes for M2.5 screws |
| Weight |
