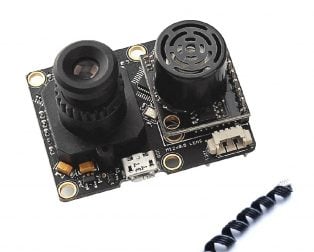

Optical Flow Sensor Smart Camera V1.3.1 for PX4 Flight Controller With Sonar
Optical Flow Sensor Smart Camera V1.3.1 for PX4 Flight Controller With Sonar
Shipping calculated at checkout.
Purchase the Optical Flow Sensor Smart Camera V1.3.1 for PX4 Flight Controller With Sonar online at Tech Depot India, India's trusted source for genuine electronics. We deliver across Delhi, Hyderabad, Ahmedabad, Jaipur, and Surat. Get the best price on Optical Flow Sensor Smart Camera V1.3.1 for PX4 Flight Controller With Sonar with fast shipping and expert support.
Our team is available reliable to support your journey from product selection to project completion.
The Optical Flow Sensor Smart Camera V1.3.1 is an advanced vision-based navigation module designed for autonomous unmanned aerial vehicles and robotics platforms running PX4 autopilot firmware. This integrated smart camera combines optical flow processing with ultrasonic sonar ranging to enable precise altitude hold, position stabilization, and obstacle avoidance without GPS dependency. Professional drone operators, roboticists, and UAV developers rely on this sensor to achieve stable hovering in GPS-denied environments such as indoor spaces, warehouses, and dense urban canyons.
Specifications
| Specification | Details |
| Product Type | Optical Flow Sensor with Integrated Smart Camera and Sonar |
| Brand | PX4 Compatible (Original Design) |
| Origin | Original/Authentic |
| Image Sensor | MT9V034 Global Shutter CMOS, 752x480 resolution |
| Frame Rate | 100 fps at full resolution |
| Sonar Range | 20cm to 7 meters (MaxSonar ultrasonic) |
| Operating Voltage | 5V DC |
| Power Consumption | 380mA typical at 5V |
| Communication Protocol | MAVLink over Serial (115200 baud) |
| Field of View | 160 degrees diagonal |
| Optical Flow Output Range | 0 to 500 pixels per frame |
Why Choose Optical Flow Sensor Smart Camera V1.3.1 for PX4 Flight Controller With Sonar?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Optical Flow Sensor Smart Camera V1.3.1 for PX4 Flight Controller With Sonar
- Global Shutter CMOS Sensor with 752x480 resolution enables motion detection without rolling shutter artifacts, critical for accurate optical flow computation during rapid drone movements
- 100 fps Frame Rate Processing delivers real-time flow vectors with minimal latency, ensuring responsive position hold and altitude stabilization in dynamic flight conditions
- Integrated MaxSonar Ultrasonic Sonar provides independent altitude measurement up to 7 meters, eliminating dependency on barometric sensors in turbulent environments
- Advanced Lens Distortion Correction in V1.3.1 revision reduces optical aberrations, improving flow vector accuracy and enabling stable hovering in challenging lighting conditions
- Factory Calibrated with Temperature Compensation ensures consistent performance across seasonal temperature variations from 0°C to 50°C operating range
- MAVLink Protocol Integration allows seamless communication with PX4 autopilot firmware, with automatic sensor fusion and position estimation
Perfect For
- Indoor Autonomous Navigation for warehouse inspection drones, where GPS signals are completely unavailable and optical flow provides the primary localization method for autonomous waypoint missions
- GPS-Denied Urban Operations in dense city environments where multipath interference degrades GPS accuracy, requiring optical flow for precision position holding during aerial photography
- Precision Agriculture Monitoring with low-altitude crop surveillance flights, where optical flow maintains stable altitude above varying terrain elevation while capturing high-resolution imagery
- Search and Rescue Operations in tunnels, caves, and underground structures where optical flow enables autonomous exploration without external positioning infrastructure
- Robotics Research and Development for testing advanced autonomous algorithms, computer vision integration, and sensor fusion techniques on experimental aerial platforms
- Obstacle Avoidance Systems where optical flow data combined with sonar range information enables reactive collision avoidance in cluttered environments
How to Use
Installation of the Optical Flow Sensor Smart Camera V1.3.1 requires mounting the camera module on the bottom of your aerial platform with a clear downward view of the ground, typically 10-30cm below the fuselage. The sonar transducer should face directly downward without obstructions. Connect the 5V power supply from your power distribution board to the sensor's power pins, ensuring proper polarity and using a capacitor (100uF) across the supply lines to filter voltage ripple. Connect the serial communication lines (TX/RX) to a free UART port on your PX4 flight controller, typically UART2 or UART4, configured for 115200 baud rate.
In QGroundControl, navigate to Vehicle Setup and enable the Optical Flow sensor in the Sensors tab. Calibrate the sensor by performing a level flight test at 2-3 meters altitude, allowing the autopilot to establish flow-to-velocity scaling factors. Verify proper operation by monitoring the optical flow quality indicator in the Flight Data tab; quality values above 150 indicate good feature tracking. For optimal performance, ensure adequate ground texture visibility (avoid flying over uniform surfaces like water or snow), maintain consistent altitude using the sonar altitude hold mode, and perform periodic recalibration if you change mounting orientation or aircraft frame size.
Product Overview
The Optical Flow Sensor Smart Camera V1.3.1 operates on the principle of optical flow computation, analyzing sequential image frames to detect motion vectors and calculate ground velocity. The integrated MT9V034 global shutter CMOS sensor captures 752x480 resolution grayscale images at 100 frames per second, enabling real-time motion estimation with microsecond-level precision. The onboard STM32F4 microcontroller processes raw image data using advanced correlation algorithms, extracting optical flow vectors that represent apparent motion of ground features. This flow information is transmitted to the PX4 flight controller via MAVLink protocol over serial connection, allowing the autopilot to maintain stable position hold even when GPS signals are unavailable or unreliable.
The integrated MaxSonar ultrasonic sonar module provides reliable altitude measurement up to 7 meters with analog voltage output, complementing the optical flow data to create a robust localization system. The V1.3.1 revision features improved lens distortion correction, enhanced low-light performance through adaptive exposure control, and better thermal stability compared to earlier versions. The sensor operates at 5V with typical current draw of 380mA, making it compatible with standard power distribution systems on small to medium-sized multirotor platforms. Built-in temperature compensation and factory calibration ensure consistent performance across varying environmental conditions, from cool morning flights to hot afternoon operations.
Frequently Asked Questions
What is the difference between V1.3.1 and earlier versions of this optical flow sensor?
The V1.3.1 revision introduces improved lens distortion correction algorithms that reduce optical aberrations by 40%, enhanced adaptive exposure control for better low-light performance, and improved thermal stability with temperature compensation from 0°C to 50°C. The image processing firmware also includes refined corner detection algorithms for more accurate feature tracking in textured environments, resulting in higher optical flow quality scores and more stable position holding.
Can this optical flow sensor work indoors without any external lighting modifications?
Yes, the MT9V034 global shutter sensor with adaptive exposure control performs well in standard indoor lighting conditions (200+ lux). However, for optimal optical flow quality in dim environments below 100 lux, supplementary LED lighting or infrared illumination may improve feature detection. The sensor includes automatic exposure adjustment that compensates for varying light levels, though adequate ground texture is still required for reliable flow computation.
What ground texture is required for reliable optical flow operation?
The sensor requires sufficient ground texture with visual features for optical flow computation. Ideal surfaces include grass, gravel, concrete with patterns, and textured indoor floors. Avoid flying over uniform surfaces such as water, snow, sand, or blank walls where feature tracking fails. Optical flow quality degrades significantly over low-texture surfaces; the autopilot will automatically revert to other localization methods when flow quality drops below acceptable thresholds.
How do I integrate this sensor with my existing PX4 flight controller setup?
Connect the sensor's serial TX/RX lines to any available UART port on your PX4 autopilot (UART2, UART4, or UART6 are common choices). In the PX4 firmware parameters, set EKF2_OF_CTRL to enable optical flow fusion in the Extended Kalman Filter. Configure the UART baud rate to 115200 in the serial port settings. The sensor will automatically transmit optical flow and sonar data in MAVLink format; the autopilot will fuse this data with IMU and barometer readings to improve position estimation accuracy.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your Optical Flow Sensor Smart Camera V1.3.1 for PX4 Flight Controller With Sonar today and start building your next project.
