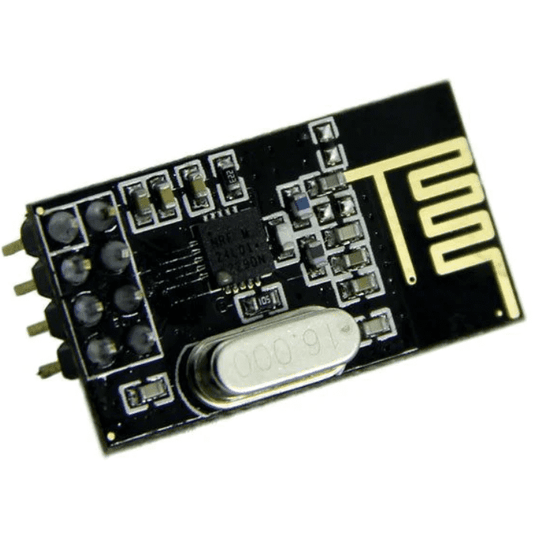

NRF24L01 Ultra Low Power 2.4GHz RF Wireless Transceiver
NRF24L01 Ultra Low Power 2.4GHz RF Wireless Transceiver
NRF24L01 Ultra Low Power 2.4GHz RF Wireless Transceiver
Enable reliable wireless communication in your projects with the NRF24L01 transceiver module from The Tech Depot, Bengaluru. Operating in the globally unlicensed 2.4GHz ISM band, this ultra-low-power module delivers robust data transfer at speeds up to 2Mbps over distances of 100+ meters in open air. Its SPI interface makes it effortless to connect with Arduino, ESP32, STM32, Raspberry Pi, and virtually any microcontroller. Whether you're building a remote-controlled robot, a wireless sensor network, or a home automation system, the NRF24L01 is the go-to solution trusted by hobbyists and professionals worldwide. Fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support included.
Specifications
| Module | NRF24L01 Wireless Transceiver |
| Chipset | Nordic Semiconductor nRF24L01+ |
| Operating Frequency | 2.4GHz ISM Band (2.400-2.525GHz) |
| Data Rate | 250Kbps / 1Mbps / 2Mbps (selectable) |
| Modulation | GFSK (Gaussian Frequency Shift Keying) |
| Operating Voltage | 1.9V - 3.6V (3.3V recommended) |
| I/O Pins | 5V tolerant (logic-level compatible) |
| Max Output Power | 0 dBm (1mW) |
| Receive Sensitivity | -85 dBm at 1Mbps / -82 dBm at 2Mbps |
| Communication Range | ~100m open air / ~30m indoors (with onboard antenna) |
| Communication Interface | 4-pin SPI (SCK, MOSI, MISO, CSN) + CE & IRQ |
| Number of Channels | 126 RF channels |
| Multi-Receiver Support | Up to 6 data pipes (multiceiver mode) |
| Packet Handling | Auto acknowledgment, auto retransmit, CRC error detection |
| FIFO Buffers | 3-level 32-byte TX and RX FIFO |
| Current Consumption (TX) | ~11.3mA at 0 dBm output |
| Current Consumption (RX) | ~13.5mA at 2Mbps |
| Standby Current | ~26uA (Standby-I mode) |
| Power Down Current | ~900nA |
| Antenna | Onboard PCB trace antenna (2.4GHz) |
| Pin Count | 8-pin (2x4) header, 1.27mm/2.54mm pitch |
| Module Dimensions | ~29mm x 15.5mm |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Payload Size | 1-32 bytes (dynamic or static) |
| Compatibility | Arduino, ESP32, ESP8266, STM32, Raspberry Pi, PIC, MSP430 |
| Library Support | RF24 (Arduino), pigpio (Raspberry Pi), CircuitPython |
| Origin | Original/Authentic Nordic nRF24L01+ chipset |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose the NRF24L01?
- Ultra-Low Power Consumption: Sub-1uA power-down current and ~11mA transmit current make it ideal for battery-powered and energy-harvesting applications lasting months on a single coin cell.
- High-Speed Data Transfer: Selectable data rates of 250Kbps, 1Mbps, or 2Mbps let you optimize for range, throughput, or power efficiency based on your application needs.
- 126 Selectable Channels: Easily avoid interference from Wi-Fi, Bluetooth, and other 2.4GHz devices by choosing from 126 independent RF channels.
- Built-In Packet Engine: Hardware-level auto acknowledgment, auto retransmit, and CRC error checking ensure reliable data delivery without burdening your microcontroller.
- Multiceiver Mode (6 Data Pipes): A single receiver can simultaneously communicate with up to 6 transmitters, perfect for star-network topologies like sensor arrays.
- Universal Microcontroller Compatibility: Standard SPI interface works with Arduino, ESP32, STM32, Raspberry Pi, PIC, and more with well-maintained open-source libraries.
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
