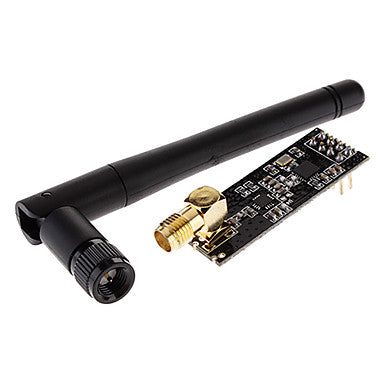

NRF24L01+PA+LNA Wireless Transceiver Module
Long-range 2.4GHz wireless communication module with built-in Power Amplifier (PA) and Low Noise Amplifier (LNA) for extended range up to 1000m. Available at The Tech Depot, Bengaluru. Fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Module | NRF24L01+PA+LNA |
| Chipset | Nordic Semiconductor nRF24L01+ |
| Frequency Band | 2.4GHz ISM Band (2.400-2.4835GHz) |
| Data Rate | 250kbps / 1Mbps / 2Mbps selectable |
| Communication Range | Up to 1000m (open air, line of sight) |
| Transmit Power | +20dBm (with PA) |
| Receive Sensitivity | -95dBm (with LNA at 1Mbps) |
| Operating Voltage | 1.9V-3.6V (3.3V recommended) |
| Logic Pins | 5V tolerant SPI interface |
| Number of Channels | 126 RF channels |
| Modulation | GFSK (Gaussian Frequency Shift Keying) |
| Antenna | External SMA antenna (included) |
| Interface | SPI (Serial Peripheral Interface) |
| Operating Current (TX) | ~115mA at max power |
| Operating Current (RX) | ~45mA |
| Standby Current | ~26uA |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Board Dimensions | ~41mm x 15mm |
| Pin Count | 8 pins (2x4 header) |
| Origin | Original/Authentic Nordic nRF24L01+ chipset |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Pin Configuration
| VCC | Power Supply (1.9V-3.6V, use 3.3V) |
| GND | Ground |
| CE | Chip Enable (active high, RX/TX control) |
| CSN | SPI Chip Select (active low) |
| SCK | SPI Clock |
| MOSI | SPI Master Out Slave In |
| MISO | SPI Master In Slave Out |
| IRQ | Interrupt Output (active low, optional) |
Why Choose the NRF24L01+PA+LNA?
- Extreme Range: PA boosts transmit power to +20dBm and LNA enhances receive sensitivity, achieving up to 1000m range - 10x farther than the standard NRF24L01+ module
- External SMA Antenna: Included high-gain antenna provides reliable, directional communication over long distances
- Multi-Device Networking: Supports up to 6 simultaneous data pipes for multi-node mesh or star networks
- Auto Acknowledgment & Retransmit: Built-in hardware protocol ensures reliable data delivery without extra coding
- Ultra-Low Standby Power: ~26uA standby current makes it ideal for battery-powered remote sensor applications
- Arduino & Microcontroller Compatible: Works seamlessly with Arduino, ESP32, STM32, Raspberry Pi, and any SPI-capable microcontroller
- Extensive Library Support: Fully supported by the popular RF24 library with well-documented examples
- 100% Authentic: Genuine Nordic nRF24L01+ chipset sourced from trusted, authorized suppliers
- Fast Shipping: 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse across India
Project Ideas
- Long-Range Remote Control: Build wireless RC controllers for drones, robots, or vehicles with reliable communication up to 1km
- Wireless Sensor Network: Deploy remote weather stations, soil moisture monitors, or environmental sensors across large farms or campuses
- Home Automation System: Create a wireless mesh network to control lights, fans, appliances, and door locks throughout your home
- Telemetry & Data Logging: Transmit real-time sensor data (temperature, pressure
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
