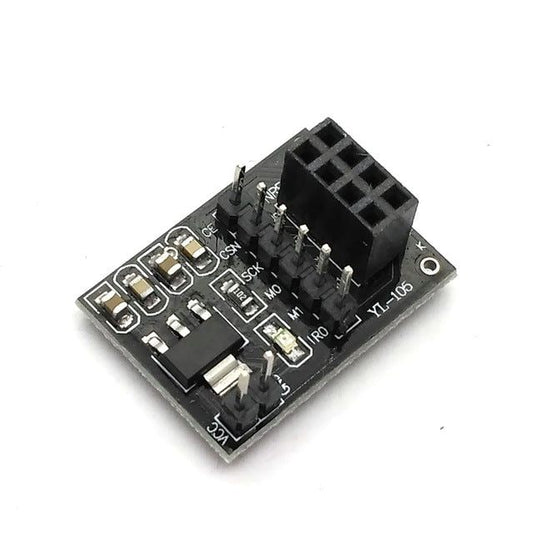

NRF24L01 Adapter Board
NRF24L01 Adapter Board
NRF24L01 Adapter Board
Simplify your NRF24L01 wireless module integration with this dedicated adapter board from The Tech Depot, Bengaluru. This board provides stable 3.3V regulated power, proper decoupling, and convenient pin breakouts, eliminating the most common issues faced when connecting NRF24L01 modules directly to Arduino, ESP32, or other microcontrollers. Fast shipping, 7-day warranty on manufacturing defects, and expert support included.
Specifications
| Type | Wireless Module Adapter / Breakout Board |
| Compatible Module | NRF24L01 / NRF24L01+PA+LNA (all variants) |
| Input Voltage | 5V (from microcontroller) |
| Regulated Output | 3.3V onboard voltage regulator for NRF24L01 |
| Decoupling Capacitors | Onboard filter capacitors (10uF + 100nF) for power stability |
| Pin Interface | 8-pin header (VCC, GND, CE, CSN, SCK, MOSI, MISO, IRQ) |
| Module Socket | 2x4 female header (standard NRF24L01 footprint) |
| PCB Material | FR4 quality board |
| Board Dimensions | Approx. 30mm x 17mm |
| Mounting | Breadboard-friendly pin spacing |
| Operating Temperature | -20 degreesC to +70 degreesC |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose This?
- Solves power instability: Onboard 3.3V regulator and decoupling capacitors prevent the most common NRF24L01 communication failures caused by noisy or insufficient power
- Universal compatibility: Works with all NRF24L01 variants including standard, +PA+LNA long-range, and SMD versions with the 2x4 pin header
- Plug-and-play convenience: Simply plug your NRF24L01 module into the socket and connect the labeled pins to your microcontroller - no external capacitors or regulators needed
- Breadboard-friendly: Pin spacing designed for direct insertion into standard breadboards for rapid prototyping
- Clearly labeled pins: All 8 pins (VCC, GND, CE, CSN, SCK, MOSI, MISO, IRQ) are clearly marked for error-free wiring
- 100% authentic from trusted suppliers
- 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse
- Expert technical support included
Pin Connection Guide
| Adapter Pin | Arduino UNO | Arduino Mega | ESP32 |
| VCC | 5V | 5V | 5V (VIN) |
| GND | GND | GND | GND |
| CE | D9 | D9 | GPIO4 |
| CSN | D10 | D53 | GPIO5 |
| SCK | D13 | D52 | GPIO18 |
| MOSI | D11 | D51 | GPIO23 |
| MISO | D12 | D50 | GPIO19 |
| IRQ | Not connected (optional) | Not connected (optional) | Not connected (optional) |
Project Ideas
- Wireless Remote Control: Build a reliable 2.4GHz remote control system for robots, drones, or RC cars with stable communication up to 1km using the PA+LNA module variant
- Wireless Sensor Network: Create a mesh of temperature, humidity, or motion sensors that transmit data wirelessly to a central hub for home automation or agriculture monitoring
- Arduino-to-Arduino Communication: Establish bidirectional wireless data links between two or more Arduino boards for distributed projects without Wi-Fi dependency
- Wireless Weather Station: Deploy outdoor sensor nodes that wirelessly transmit weather data to an indoor display unit using the NRF24L01 protocol
- IoT Gateway Projects: Use NRF24L01 as a low-power local wireless link paired with an ESP32 for internet connectivity, creating efficient hybrid IoT systems
- Learning & Education: Ideal for students learning SPI communication, wireless protocols, and embedded
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
