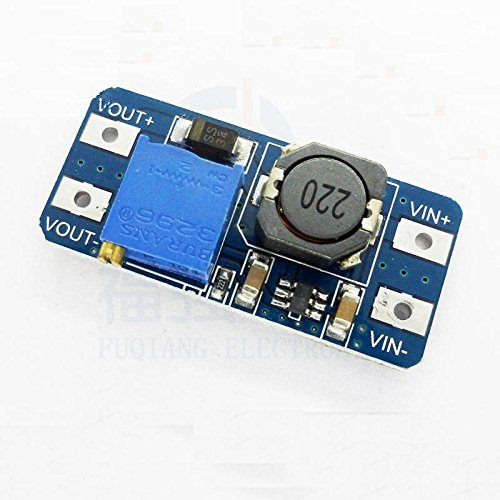

MT3608 DC-DC Boost Module (2V-24V)
MT3608 DC-DC Boost Module (2V-24V)
MT3608 DC-DC Boost Module (2V-24V)
Step up your voltage effortlessly with the MT3608 DC-DC Boost Converter Module. This compact, high-efficiency module converts a lower input voltage (as low as 2V) to a higher adjustable output voltage (up to 28V), making it ideal for battery-powered projects, portable electronics, and power supply prototyping. Available at The Tech Depot, Bengaluru with fast shipping, 7-day warranty on manufacturing defects, and dedicated support.
Specifications
| Module IC | MT3608 Step-Up Converter |
| Input Voltage Range | 2V to 24V DC |
| Output Voltage Range | 5V to 28V DC (Adjustable via Potentiometer) |
| Maximum Output Current | 2A (recommended continuous <=1.5A with heatsinking) |
| Conversion Efficiency | Up to 93% |
| Switching Frequency | 1.2 MHz |
| Output Adjustment | Onboard multi-turn trimmer potentiometer |
| Module Dimensions | Approx. 36mm x 17mm x 14mm |
| Connection | Solder pads (VIN+, VIN, VOUT+, VOUT) |
| Protection | Over-temperature shutdown, current limiting |
| Operating Temperature | 40 degreesC to +85 degreesC |
| Type | DC-DC Boost (Step-Up) Converter Module |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose the MT3608 Boost Module?
- Wide Input Range: Accepts inputs from 2V to 24V, perfect for single-cell lithium batteries, USB power, or multi-cell packs
- Adjustable Output: Precisely tune output voltage from 5V up to 28V using the onboard multi-turn potentiometer
- High Efficiency: Up to 93% conversion efficiency minimizes heat and maximizes battery life
- Ultra-Compact Size: Tiny 36mm x 17mm footprint fits easily into space-constrained enclosures and projects
- High Switching Frequency: 1.2 MHz operation allows use of small external inductors and capacitors with low output ripple
- Easy to Use: Simple 4-pin connection - solder input and output wires, adjust the potentiometer, and you're ready
- 100% authentic modules from trusted suppliers
- 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse
- Expert technical support included for your projects
Project Ideas
- Battery-Powered LED Drivers: Boost a 3.7V lithium cell to 12V for driving LED strips, flashlights, or indicator panels
- Portable USB Power Banks: Step up single-cell Li-ion voltage to a stable 5V or 9V for charging phones and tablets
- Solar Energy Harvesting: Boost low solar panel output voltage to a usable level for charging batteries or powering sensors
- Arduino & Microcontroller Projects: Generate 9V, 12V, or custom voltages from a 5V USB supply for motors, relays, and displays
- Robotics Power Distribution: Provide higher voltage rails for servo motors or motor drivers from a lower-voltage battery pack
- Amateur Radio & RF Projects: Create stable higher-voltage supplies for RF amplifier stages from compact battery sources
- Bench Power Supply Prototyping: Use as a variable boost stage in a DIY adjustable power supply
- Learning & Education: Ideal for students studying switch-mode power supply design, PWM regulation, and energy conversion principles
How to Use
- Step 1: Solder your input power source (2V-24V DC) to the VIN+ and VIN pads on the module
- Step 2: Solder your output load wires to the VOUT+ and VOUT pads
- Step 3: Before connecting your load, power the module and use a multimeter on the output pads
- Step 4: Carefully turn the onboard trimmer potentiometer (clockwise to increase, counter-clockwise to decrease) until your desired output voltage is displayed on the multimeter
- Step 5: Connect your load and verify the output voltage remains stable under operating current
- Tip: Always set the output voltage before connecting sensitive loads. Keep continuous current draw below 1.5A for reliable long-term operation, and ensure adequate ventilation or add a small heatsink for higher current applications
