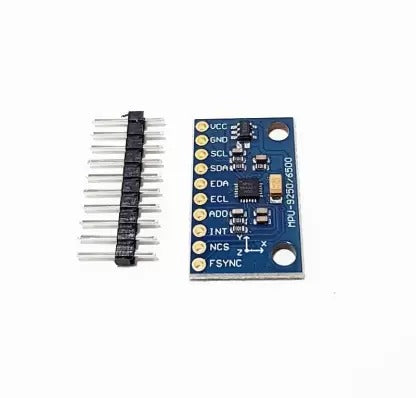

MPU9250
The MPU9250 is a 9-axis inertial measurement unit (IMU) that combines a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer in a single compact package, enabling precise motion tracking and orientation sensing. Roboticists, drone manufacturers, autonomous vehicle engineers, and motion capture system developers rely on the MPU9250 for accurate real-time attitude determination and stabilization control. This sensor solves the critical challenge of capturing complex 6-DOF (degrees of freedom) motion data with minimal latency and power consumption, essential for applications requiring dynamic balancing, navigation, and spatial awareness.
Specifications
| Specification | Details |
| Product Type | 9-Axis Inertial Measurement Unit (IMU) |
| Brand | InvenSense (TDK) |
| Origin | Original/Authentic |
| Accelerometer Range | ±2g, ±4g, ±8g, ±16g selectable |
| Gyroscope Range | ±250°/s, ±500°/s, ±1000°/s, ±2000°/s |
| Magnetometer Resolution | 14-bit, ±4800µT range |
| Communication Interface | I2C (400kHz) or SPI (up to 20MHz) |
| Sampling Rate | Up to 4kHz for accelerometer and gyroscope |
| Operating Voltage | 2.4V to 3.6V (3.3V nominal) |
| Standby Current | 8µA typical |
| Package | 24-pin QFN (4mm x 4mm x 0.9mm) |
Why Choose MPU9250?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of MPU9250
- 9-Axis Sensor Fusion: Integrated accelerometer, gyroscope, and magnetometer eliminate the need for multiple discrete sensors, reducing PCB footprint and design complexity
- Digital Motion Processor (DMP): Onboard quaternion calculation engine delivers real-time 3D orientation data with automatic gyroscope drift compensation
- Ultra-Low Power Architecture: Achieves 8µA standby current with intelligent power management modes, ideal for battery-powered IoT and wearable applications
- Programmable Interrupt Outputs: Motion detection, zero-motion detection, and FIFO overflow interrupts enable event-driven microcontroller designs with minimal polling overhead
- High-Speed Data Acquisition: 4kHz sampling rate with 512-byte FIFO buffer accommodates burst data collection for advanced motion analysis and gesture recognition
- Dual Communication Protocols: Flexible I2C and SPI interfaces support both synchronous and asynchronous data transfer modes for diverse embedded system architectures
Perfect For
- Quadcopter and Drone Stabilization: Real-time gyroscope and accelerometer data feeds flight control algorithms for precise attitude hold and autonomous navigation with magnetic heading reference
- Robotics and Humanoid Motion Capture: 9-axis sensor fusion tracks joint angles and limb orientation in bipedal robots, enabling dynamic balance correction and coordinated movement
- Wearable Fitness and Health Monitoring: Accelerometer captures step count and activity classification while gyroscope detects fall events and posture anomalies in elderly care applications
- Autonomous Vehicle Inertial Navigation: Gyroscope and accelerometer provide dead-reckoning data between GPS updates, with magnetometer compass heading for lane-keeping and turn detection
- Virtual Reality and Motion Gaming: Low-latency 9-axis data enables head-tracking controllers and motion-responsive game mechanics with minimal gimbal lock artifacts
- Industrial Equipment Vibration Monitoring: High-frequency accelerometer sampling detects bearing wear patterns and mechanical faults in rotating machinery through spectral analysis
How to Use
To integrate the MPU9250 into your project, establish I2C communication by connecting SDA and SCL lines to your microcontroller (Arduino, STM32, or Raspberry Pi) with 10kΩ pull-up resistors, then power the sensor with 3.3V through a 100nF decoupling capacitor. Initialize the sensor by writing to the power management register (0x6B) to exit sleep mode, configure the accelerometer and gyroscope ranges via registers 0x1C and 0x1B respectively, and optionally enable the Digital Motion Processor by setting bit 7 of register 0x6A for automatic quaternion computation. Read raw sensor data from registers 0x3B through 0x48 at your desired sampling rate, or enable the FIFO buffer (register 0x23) to accumulate samples and reduce interrupt overhead in time-critical applications.
For optimal accuracy, perform sensor calibration by measuring gyroscope bias with the device stationary for 1-2 seconds, then subtract these offsets from all subsequent gyroscope readings to eliminate drift. The magnetometer requires a one-time calibration routine where you rotate the sensor through all spatial orientations to map hard-iron and soft-iron distortions, then apply the resulting transformation matrix to compass readings. Implement sensor fusion using a complementary filter or Kalman filter algorithm to combine accelerometer, gyroscope, and magnetometer data, leveraging the DMP's quaternion output to avoid Euler angle singularities and gimbal lock in applications requiring full 3D orientation tracking.
Product Overview
The MPU9250 operates on the principle of MEMS (Micro-Electro-Mechanical Systems) technology, integrating three distinct sensor types on a single silicon die with a dedicated motion processing engine. The accelerometer measures linear acceleration across three axes with selectable ranges from ±2g to ±16g, the gyroscope captures angular velocity up to ±2000°/s, and the integrated AK8963 magnetometer provides compass heading data with 14-bit resolution. The onboard Digital Motion Processor (DMP) handles complex sensor fusion algorithms, reducing computational burden on the host microcontroller and enabling real-time quaternion output for seamless 3D orientation tracking without gimbal lock issues.
What distinguishes the MPU9250 from earlier generations is its ultra-low power consumption architecture, achieving standby current as low as 8µA while maintaining high-speed data acquisition at up to 4kHz sampling rates. The sensor communicates via I2C or SPI protocols with configurable interrupt outputs for event-driven applications, making it ideal for battery-powered systems like wearables and portable robotics. The tight sensor fusion between accelerometer, gyroscope, and magnetometer provides superior heading accuracy even in the presence of magnetic interference, a critical advantage over single-axis sensors in real-world deployment scenarios.
Frequently Asked Questions
What is the difference between MPU9250 and MPU6050?
The MPU9250 is a 9-axis IMU that includes a built-in magnetometer (AK8963), whereas the MPU6050 is a 6-axis sensor with only accelerometer and gyroscope. The MPU9250 provides absolute heading reference through compass data, making it superior for applications requiring full 3D orientation tracking and navigation. Additionally, the MPU9250 features a more advanced Digital Motion Processor with quaternion output, lower power consumption, and higher sampling rates compared to the older MPU6050.
How do I calibrate the MPU9250 magnetometer?
Magnetometer calibration requires rotating the sensor through all three axes in a figure-eight pattern for approximately 30-60 seconds to collect hard-iron and soft-iron compensation data. Use calibration libraries available in Arduino and Python ecosystems that compute transformation matrices, then apply these offsets to raw magnetometer readings. Hard-iron calibration corrects permanent magnetic field distortions from nearby electronics, while soft-iron calibration accounts for ferrous materials that distort Earth's magnetic field. Without proper calibration, heading accuracy can drift by 10-20 degrees in the presence of electronic components.
Can I use MPU9250 for GPS-denied indoor navigation?
The MPU9250 alone cannot provide absolute position, but it excels at dead-reckoning navigation when integrated with visual odometry or UWB (Ultra-Wideband) systems. The gyroscope provides accurate heading reference for 1-2 minutes before drift becomes significant, while the accelerometer estimates displacement through double integration (though acceleration bias limits accuracy). For reliable indoor navigation, combine MPU9250 with additional sensors like optical flow cameras, LiDAR, or Bluetooth beacons to correct accumulated drift and provide absolute position updates.
What is the maximum I2C communication speed supported?
The MPU9250 supports I2C standard mode at 100kHz and fast mode at 400kHz. For applications requiring higher data rates, use the SPI interface which operates at speeds up to 20MHz, enabling 4kHz sampling with minimal latency. I2C is preferred for simple prototyping and breadboard applications due to fewer required connections, while SPI is recommended for production systems where high-speed data transfer and noise immunity are critical.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
