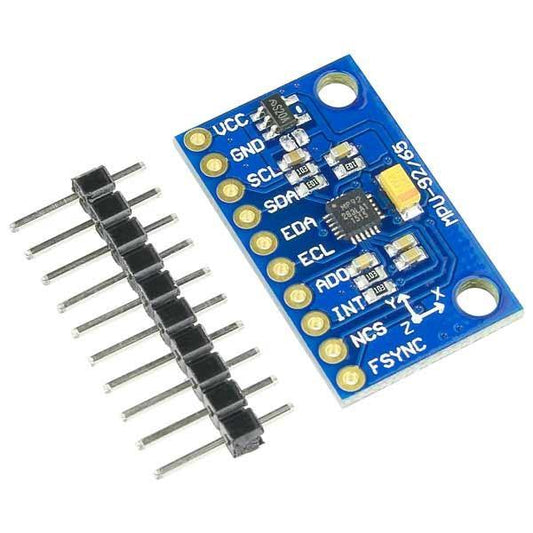

MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module
MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module
Shipping calculated at checkout.
Looking to buy MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
Specifications
| Sensor IC | InvenSense MPU-9250 (9-axis SiP) |
| Gyroscope | 3-axis, +/-250 / +/-500 / +/-1000 / +/-2000 degrees/s selectable full-scale range |
| Accelerometer | 3-axis, +/-2g / +/-4g / +/-8g / +/-16g selectable full-scale range |
| Magnetometer | 3-axis (AK8963), +/-4800 uT, 14-bit or 16-bit output |
| Communication Interface | I2C (up to 400 kHz) and SPI (up to 1 MHz) |
| I2C Address | 0x68 (default) / 0x69 (AD0 pin HIGH) |
| ADC Resolution | 16-bit for gyroscope & accelerometer |
| On-Board DMP | Digital Motion Processor for sensor fusion & gesture recognition |
| Operating Voltage | 3.3V - 5V (on-board voltage regulator) |
| Operating Current | ~3.5 mA (all sensors active) |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Board Dimensions | ~15 mm x 25 mm (compact breakout) |
| Pin Header | 8-pin (VCC, GND, SCL, SDA, EDA, ECL, AD0, INT) |
| Mounting | Breadboard-compatible with 2.54 mm pitch headers |
| Type | IMU / Motion Tracking Sensor Module |
| Origin | Original/Authentic |
Why Choose MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module
- True 9-Axis Sensing: Combines gyroscope, accelerometer, and magnetometer in one module for complete motion and orientation tracking without needing separate sensors
- Built-In Digital Motion Processor (DMP): On-chip sensor fusion engine offloads complex calculations from your microcontroller, delivering ready-to-use quaternion and Euler angle data
- Dual Interface Support: Communicate via I2C or SPI - flexible integration with Arduino, ESP32, STM32, Raspberry Pi, and virtually any microcontroller platform
- Selectable Measurement Ranges: Configurable full-scale ranges for both gyroscope and accelerometer let you optimize sensitivity for your specific application
- Ultra-Low Power Consumption: Draws only ~3.5 mA with all sensors active; supports low-power accelerometer mode at just 8.4 uA for battery-powered projects
- On-Board Voltage Regulator: Accepts 3.3V to 5V input, making it directly compatible with both 3.3V and 5V logic microcontrollers
- Auxiliary I2C Master Interface: EDA/ECL pins allow connection of external sensors (e.g., barometer) directly to the MPU-9250's auxiliary bus
- Programmable Interrupt Pin: Configurable INT output for data-ready, FIFO overflow, and motion detection events - enables efficient interrupt-driven programming
- 512-Byte FIFO Buffer: Reduces host processor intervention by buffering sensor data, critical for power-sensitive and real-time applications
- Self-Test Capability: Built-in self-test function for all three sensors allows you to verify module health during production or in the field
- All-in-One IMU Solution: Replaces three separate sensor modules - saves board space, reduces wiring complexity, and simplifies your BOM
- Magnetometer Adds Absolute Heading: Unlike 6-axis IMUs, the integrated compass provides magnetic north reference for drift-free yaw estimation and true heading calculation
- Arduino & ESP32 Ready: Plug directly into a breadboard, connect four wires (VCC
MPU-9250 9-Axis Attitude Gyro, Accelerometer & Magnetometer Sensor Module
The MPU-9250 is a world-leading 9-axis MEMS sensor module combining a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer (compass) into a single compact package. Built around InvenSense's MPU-9250 SiP (System in Package), this breakout board delivers precise motion tracking, orientation sensing, and heading detection - making it the go-to IMU for drones, robotics, VR controllers, and navigation systems.
