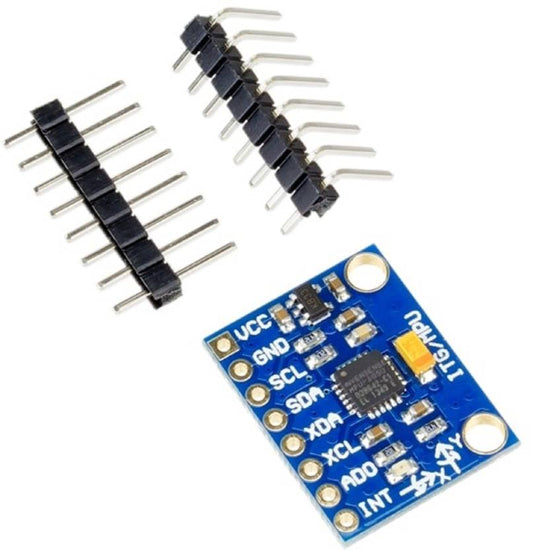

MPU-6050 Triple-Axis Accelerometer & Gyroscope Module
MPU-6050 Triple-Axis Accelerometer & Gyroscope Module
MPU-6050 Triple-Axis Accelerometer & Gyroscope Module
Unlock precise 6-axis motion sensing with the MPU-6050 module - combining a 3-axis accelerometer and 3-axis gyroscope on a single chip. Ideal for drones, robotics, gesture control, and IMU-based navigation projects. Available now from The Tech Depot, Bengaluru, with fast shipping, expert support, and a 7-day warranty on manufacturing defects.
Specifications
| Sensor IC | InvenSense MPU-6050 (6-axis MEMS) |
| Accelerometer Range | +/-2g, +/-4g, +/-8g, +/-16g (selectable) |
| Gyroscope Range | +/-250, +/-500, +/-1000, +/-2000 degrees/s (selectable) |
| Communication Interface | I2C (default address 0x68 / 0x69) |
| ADC Resolution | 16-bit per axis for both accelerometer & gyroscope |
| On-Chip Features | Digital Motion Processor (DMP), temperature sensor, FIFO buffer (1024 bytes) |
| Operating Voltage | 3.3 V - 5 V (on-board voltage regulator) |
| Logic Level | 3.3 V (5 V tolerant via on-board level shifter on most breakout boards) |
| Operating Current | ~3.9 mA (all sensors active) |
| Board Dimensions | ~20 mm x 16 mm |
| Header Pins | VCC, GND, SCL, SDA, XDA, XCL, AD0, INT (8 pins) |
| Auxiliary I2C Bus | Yes - connect external magnetometer (e.g., HMC5883L) for 9-axis fusion |
| Compatibility | Arduino, ESP32, ESP8266, STM32, Raspberry Pi, PIC, and more |
| Origin | Original / Authentic IC on quality breakout PCB |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- 6 Degrees of Freedom: Simultaneous 3-axis acceleration + 3-axis angular velocity measurement in a single compact module.
- Digital Motion Processor (DMP): On-chip processor offloads complex sensor-fusion calculations from your microcontroller, delivering orientation quaternions directly.
- Configurable Ranges: Adjust accelerometer (+/-2g to +/-16g) and gyroscope (+/-250 to +/-2000 degrees/s) full-scale ranges to match your application's sensitivity and dynamic requirements.
- 16-Bit ADC Resolution: High-resolution digital output on every axis ensures smooth, accurate motion data for precision applications.
- I2C Interface (Up to 400 kHz): Simple 2-wire connection - only SCL and SDA needed. Supports two selectable addresses for dual-sensor setups.
- Auxiliary I2C Master: Dedicated secondary I2C bus lets the MPU-6050 directly read an external magnetometer, enabling full 9-axis IMU fusion without extra MCU overhead.
- Interrupt Output: Programmable INT pin triggers on data-ready, motion detection, or free-fall events - perfect for low-power wake-on-motion designs.
- Built-In Temperature Sensor: On-die temperature reading useful for thermal compensation and environmental monitoring.
- On-Board Voltage Regulator & Level Shifting: Plug directly into 5 V Arduino boards or 3.3 V ESP32 systems without external components.
- Breadboard-Friendly: Compact breakout with standard 2.54 mm pitch header pins - solder and start prototyping in minutes.
Why Choose The MPU-6050 from The Tech Depot?
- 100% authentic InvenSense MPU-6050 IC - sourced from trusted, authorized distributors
- Quality breakout PCB with proper decoupling capacitors and voltage regulation
- 1-5 day shipping, 7-8 day delivery across India from our Bengaluru warehouse; same-day delivery within Bengaluru
- Expert technical support included - wiring help, code examples, troubleshooting via WhatsApp & email
- Tested before dispatch to ensure every module works out of the box
- Competitive pricing with bulk discounts for classroom, lab, and production orders
Pin Configuration
| Pin | Function | Description |
| VCC | Power Supply | 3.3 V - 5 V input (regulated on-board) |
| GND | Ground | Common ground connection |
| SCL |
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
