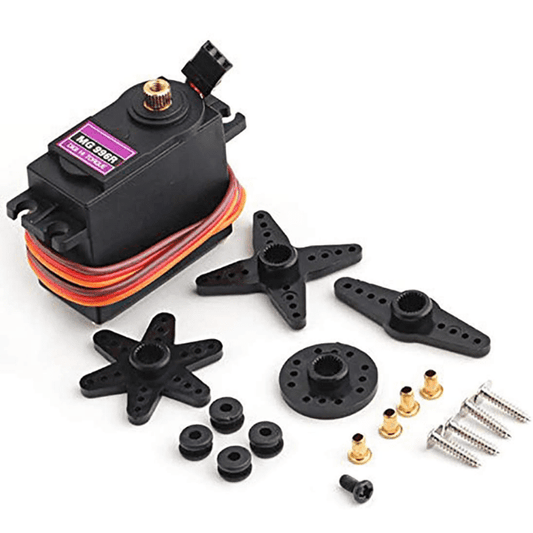

MG996R Servo Motor - 180 Degree
MG996R Servo Motor - 180 Degree
Shipping calculated at checkout.
Looking to buy MG996R Servo Motor - 180 Degree at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
The MG996R is a high-torque digital servo motor with metal gears, delivering reliable 180-degree rotational control for robotics, RC vehicles, and automation projects. Trusted by hobbyists and engineers alike, this servo offers exceptional strength and precision at an affordable price point.
Specifications
| Motor Type | Digital Servo Motor (Metal Gear) |
| Rotation Range | 0 degrees to 180 degrees |
| Stall Torque | 9.4 kgcm (4.8V) / 11 kgcm (6.0V) |
| Operating Voltage | 4.8V - 7.2V DC |
| Operating Speed | 0.17 sec/60 degrees (4.8V) / 0.14 sec/60 degrees (6.0V) |
| Control Signal | PWM (Pulse Width Modulation) |
| PWM Pulse Range | 500 us - 2500 us |
| Dead Band Width | 5 us |
| Gear Type | All-Metal Gears |
| Bearing Type | Dual Ball Bearing |
| Motor Weight | ~55 g |
| Dimensions | 40.7 x 19.7 x 42.9 mm |
| Wire Length | ~30 cm (standard 3-pin connector) |
| Connector Pinout | Brown (GND), Red (VCC), Orange (Signal) |
| Operating Temperature | 0 degreesC to 55 degreesC |
| Compatibility | Arduino, Raspberry Pi, ESP32, PIC, STM32, and all standard microcontrollers |
| Origin | Original / Authentic |
Why Choose MG996R Servo Motor - 180 Degree?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of MG996R Servo Motor - 180 Degree
- High Torque Output: Delivers up to 11 kgcm at 6V, making it powerful enough for robotic arms, pan-tilt mechanisms, and heavy-duty actuation tasks.
- All-Metal Gear Train: Durable metal gears resist stripping and wear, providing significantly longer lifespan compared to plastic-geared servos under load.
- Dual Ball Bearings: Ensures smooth, precise rotation with reduced friction, improving accuracy and extending operational life.
- Precise 180 degrees Control: Accurately positions to any angle within the 0-180 degrees range using standard PWM signals from any microcontroller.
- Universal Compatibility: Standard 3-pin servo connector works directly with Arduino, Raspberry Pi, ESP32, STM32, PIC, and virtually any development board.
- Compact & Tech Depot India Design: Industry-standard form factor fits most servo brackets, robotic chassis, and mounting hardware without modification.
- Fast Response Speed: 0.14 sec/60 degrees at 6V ensures quick, responsive movement for real-time control applications.
- Drop-in Upgrade: Pin-compatible replacement for the SG90 and MG995, offering significantly more torque and durability in the same mounting footprint.
- One of the most widely used and well-documented servo motors in the maker community
- Excellent price-to-performance ratio for both prototyping and production use
How It Works
The MG996R is a closed-loop servo motor controlled via Pulse Width Modulation (PWM). A control signal with a pulse width between 500 us and 2500 us is sent to the signal pin at a frequency of approximately 50 Hz. The internal control circuitry reads the pulse width, compares it to the current position from the built-in potentiometer, and drives the motor to the corresponding angle. A 500 us pulse moves the shaft to 0 degrees, a 1500 us pulse centers it at 90 degrees, and a 2500 us pulse drives it to 180 degrees. The metal gear train and dual ball bearings ensure the output shaft moves smoothly and holds position firmly even under load.
Wiring Guide
| Servo Wire Color | Connection | Description |
| Brown | GND | Ground - connect to microcontroller GND and power supply GND |
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your MG996R Servo Motor - 180 Degree today and start building your next project.
