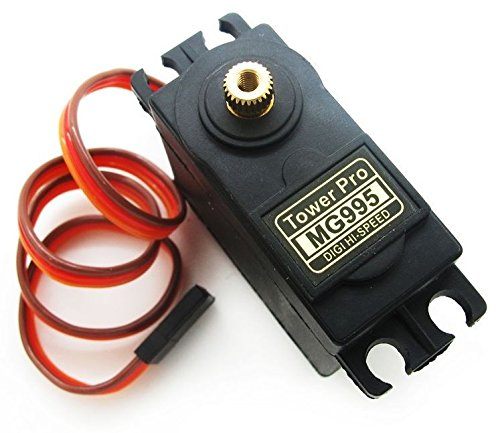

MG995 High Speed Servo Motor(180 Degree)
MG995 High Speed Servo Motor(180 Degree)
Shipping calculated at checkout.
Looking to buy MG995 High Speed Servo Motor(180 Degree) at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
High-torque metal gear servo motor from Tech Depot India, Bengaluru. The MG995 delivers powerful, precise 180-degree rotation with metal gears for durability - ideal for robotics, RC vehicles, robotic arms, and pan-tilt mechanisms.
Specifications
| Motor Type | Analog Servo Motor (Metal Gear) |
| Rotation Range | 0 degrees - 180 degrees |
| Operating Voltage | 4.8V - 7.2V DC |
| Stall Torque (4.8V) | ~10 kgcm |
| Stall Torque (6.0V) | ~13 kgcm |
| Operating Speed (4.8V) | ~0.17 sec / 60 degrees |
| Operating Speed (6.0V) | ~0.13 sec / 60 degrees |
| Gear Type | All-Metal Gears |
| Control Signal | PWM (pulse width 500 us - 2500 us) |
| Dead Band Width | ~4 us |
| Dimensions | 40.7 x 19.7 x 42.9 mm (approx.) |
| Weight | ~55 g |
| Connector | Standard 3-pin (Signal / VCC / GND) - JR compatible |
| Wire Length | ~30 cm |
| Bearing Type | Dual Ball Bearing |
| Compatibility | Arduino, Raspberry Pi, ESP32, PCA9685, RC receivers |
| Origin | Original / Authentic |
Why Choose MG995 High Speed Servo Motor(180 Degree)?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of MG995 High Speed Servo Motor(180 Degree)
- High Torque, Metal Gears: Up to 13 kgcm stall torque at 6V with all-metal gear train - handles heavier loads without stripping.
- Fast Response: 0.13 sec/60 degrees at 6V ensures snappy, responsive positioning for real-time control applications.
- Dual Ball Bearings: Smooth, low-friction output shaft rotation for longer life and consistent performance.
- Universal PWM Control: Standard 50 Hz PWM input works directly with Arduino Servo library, PCA9685 boards, and RC receivers.
- Plug-and-Play Connector: JR-compatible 3-pin cable connects to servo headers without soldering.
- Tech Depot India Build: Tough plastic housing with metal gear internals - built for demanding hobby and prototyping environments.
Perfect For
- Robotic Arm / Gripper: Use multiple MG995 servos for multi-joint robotic arms - the high torque handles gripping and lifting with ease.
- Pan-Tilt Camera Mount: Build a two-axis camera or sensor gimbal for surveillance, FPV, or object-tracking projects.
- RC Car Steering: Replace weak stock servos with the MG995 for reliable, high-speed steering in RC vehicles and boats.
- Humanoid / Walking Robot: Power leg and arm joints in bipedal or hexapod robots requiring strong, precise joint control.
- Automated Door / Lock Mechanism: Create IoT-controlled latches, pet doors, or access systems with Arduino or ESP32.
- Solar Tracker: Drive a dual-axis solar panel mount to follow the sun and maximize energy harvesting efficiency.
- Sorting Machine: Actuate gates, flaps, or conveyor diverters in color-sorting or object-classification projects.
- Learning & Education: Ideal first servo for students learning PWM, microcontroller interfacing, and closed-loop control concepts.
How to Connect (Quick Start)
- Brown Wire -> GND on Arduino / power supply ground.
- Red Wire -> 5V-6V from an external power supply (do NOT power from Arduino 5V pin alone - the servo draws high current).
- Orange Wire -> Signal Pin (e.g., Arduino digital pin 9).
- Use the Arduino
Servo.hlibrary:myServo.attach(9); myServo.write(90)
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your MG995 High Speed Servo Motor(180 Degree) today and start building your next project.
