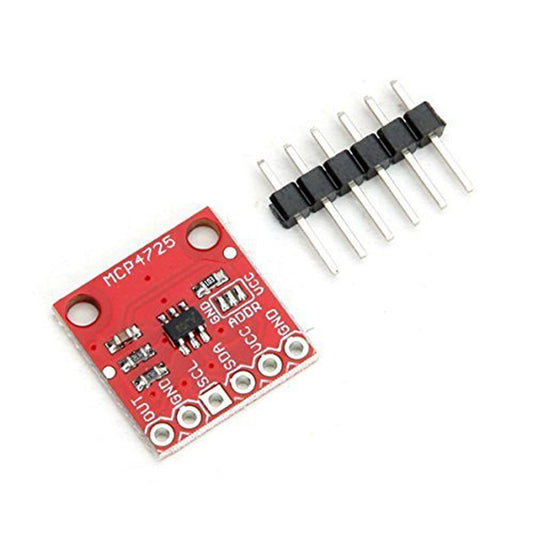

MCP4725 I2C DAC Breakout Module
MCP4725 I2C DAC Breakout Module
MCP4725 I2C DAC Breakout Module
Premium quality digital-to-analog converter breakout board from The Tech Depot, Bengaluru. Fast shipping, 7-day warranty on manufacturing defects, and expert support included.
Key Features
- 12-bit Resolution - Precise analog output conversion
- I2C Interface - Easy integration with microcontrollers (Arduino, Raspberry Pi, STM32, etc.)
- Single Supply Operation - Works with 2.7V to 5.5V
- Low Power Consumption - Ideal for battery-powered applications
- Onboard Decoupling Capacitors - Ready to use out of the box
- Compact Breakout Board - Easy prototyping and integration
Technical Specifications
| Parameter | Details |
| Component | MCP4725 DAC IC |
| Resolution | 12-bit |
| Interface | I2C (Two-wire) |
| Supply Voltage | 2.7V to 5.5V |
| Output Voltage Range | 0V to VDD |
| I2C Address | Configurable (0x60/0x61) |
| Settling Time | <6 us |
| Type | Electronics Component |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose This?
100% Authentic - Sourced from authorized distributors with verification
Fast Shipping - 1-5 days from Bengaluru warehouse, delivered in 7-8 days
Expert Support - Technical assistance via email and WhatsApp
Quality Assured - Tested before dispatch
Beginner Friendly - Pre-assembled and ready to use
Applications & Project Ideas
DIY & Hobbyist Projects
- Audio signal generation and synthesis
- LED brightness control with smooth PWM alternatives
- Analog sensor simulation and testing
- Music and tone generation
Professional & Industrial Use
- Precision instrumentation
- Calibration and testing equipment
- Process control systems
- Data acquisition systems
Learning & Education
- Microcontroller interfacing tutorials
- I2C protocol learning
- Digital signal processing projects
- Embedded systems development
What's Included
In the Box:
- MCP4725 I2C DAC Breakout Module (pre-assembled)
- Pin headers (soldered or unsoldered options available)
- Quick start guide and documentation
- Technical datasheet and code examples
- Support contact information
Pin Configuration
| Pin | Function |
| GND | Ground |
| VCC | Power Supply (2.7V-5.5V) |
| SDA | I2C Data Line |
| SCL | I2C Clock Line |
| VOUT | Analog Output (0V-VDD) |
Getting Started
- Connect Power - Supply 3.3V or 5V to VCC and GND
- I2C Connection - Connect SDA and SCL to your microcontroller
- Load Code - Use provided Arduino/Python libraries
- Set Output - Control analog voltage via I2C commands
- Measure Results - Monitor VOUT with multimeter or oscilloscope
Compatibility
Arduino (Uno, Mega, Nano, Pro Mini)
Raspberry Pi (all models) STM32 microcontrollers ESP8266 / ESP32Any I2C-capable microcontroller
Frequently Asked Questions
Is this 100% authentic?
Yes, absolutely. We source directly from authorized distributors with authentication verification. Every unit is tested before dispatch to ensure quality.
What warranty coverage is included?
7-day warranty on manufacturing defects covering all manufacturing defects. If you experience any issues, contact us for replacement or refund.
How fast is the shipping?
7-8 days to most locations in India from our Bengaluru warehouse. Express shipping available for urgent orders.
Do you provide technical support?
Yes, full technical support available 24/7 via email and WhatsApp. Our team can help with setup, troubleshooting, and coding assistance.
What's your return policy?
7-day returns on manufacturing defects only with full refund or replacement. applicable on manufacturing defects only if the product is damaged on arrival.
Are bulk discounts available?
Yes! Wholesale pricing available on orders of 10+ units. Contact us for custom quotes.
Do I need to solder anything?
The module comes pre-assembled. Pin headers are included - choose between pre-soldered or unsoldered versions based on your preference.
Which I2C address does it use?
The default address is 0x60, with option to configure to 0x61 using the address selection pins for multiple DACs on one bus.
Can I use this with 3.3V logic?
Yes, the MCP4725 operates from 2.7V to 5.5V, making it compatible with both 3.3V and 5V systems.
