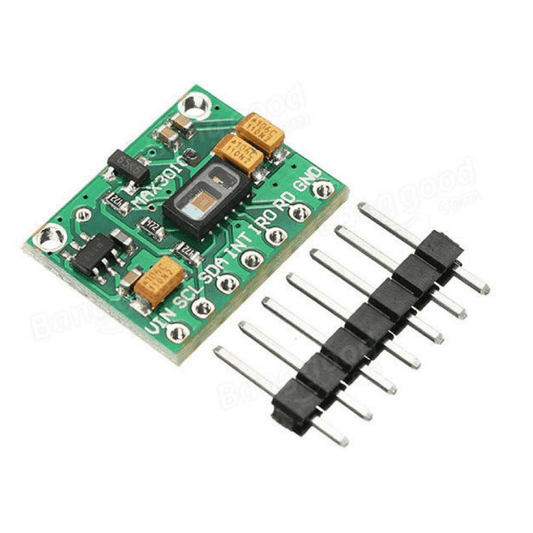

MAX30102 Pulse Oximeter Heart Rate Sensor Module
MAX30102 Pulse Oximeter Heart Rate Sensor Module
MAX30102 Pulse Oximeter Heart Rate Sensor Module
Monitor heart rate and blood oxygen saturation (SpO2) with the MAX30102 sensor module - a compact, integrated pulse oximetry and heart-rate solution from Maxim Integrated. Designed for wearable health devices, fitness trackers, and medical prototyping, this module features built-in red and infrared LEDs, a photodetector, and advanced low-noise analog signal processing. Communicates via standard I2C interface for seamless integration with Arduino, ESP32, Raspberry Pi, and other microcontrollers. Available now from The Tech Depot, Bengaluru with fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Sensor IC | MAX30102 (Maxim Integrated) |
| Measurement Type | Heart Rate (BPM) & Blood Oxygen Saturation (SpO2) |
| Light Sources | Integrated Red LED (660nm) + Infrared LED (880nm) |
| Photodetector | High-sensitivity photodiode with low-noise analog front-end |
| Operating Voltage | 1.8V (core) / 3.3V-5V (module with onboard regulator) |
| Communication Interface | I2C (up to 400kHz), I2C Address: 0x57 |
| ADC Resolution | 18-bit with programmable sample rate |
| Sample Rate | 50Hz to 3200Hz (configurable) |
| LED Drive Current | 0-50mA (programmable in 0.2mA steps) |
| Operating Current | ~600uA during measurement, ~0.7uA in shutdown mode |
| FIFO Buffer | 32-sample deep internal FIFO for data buffering |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Module Dimensions | Approx. 14mm x 14mm (compact breakout board) |
| Connector | Standard 2.54mm pitch header pins for breadboard use |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and more |
| Origin | Original / Authentic MAX30102 IC |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Dual-Wavelength Sensing: Integrated red (660nm) and infrared (880nm) LEDs enable accurate pulse oximetry and heart rate detection using photoplethysmography (PPG).
- Ultra-Low Power Consumption: Draws only ~600uA during active measurement and drops to 0.7uA in shutdown mode - ideal for battery-powered wearables and portable health monitors.
- High-Resolution 18-Bit ADC: Built-in analog-to-digital converter captures fine signal variations for precise BPM and SpO2 calculations.
- Programmable Sample Rate & LED Current: Configure sample rates from 50Hz to 3200Hz and LED drive current from 0-50mA to optimize performance for your specific application.
- Internal 32-Sample FIFO: Onboard data buffer reduces microcontroller interrupt overhead and allows efficient batch data reads over I2C.
- Standard I2C Interface: Simple two-wire communication (SDA, SCL) at up to 400kHz - requires only 4 connections (VCC, GND, SDA, SCL) for basic operation.
- Ambient Light Cancellation: Built-in ambient light rejection and signal processing reduce noise from external light sources for reliable indoor and outdoor readings.
- Compact Breakout Board Design: Tiny module with onboard voltage regulator, level shifting, and standard 2.54mm header pins - plug directly into a breadboard or solder into custom PCBs.
- Interrupt Output Pin: Configurable INT pin alerts the microcontroller when new data is ready, FIFO is nearly full, or temperature reading is complete.
- Built-In Die Temperature Sensor: Internal temperature sensor (+/-1 degreesC accuracy) enables calibration compensation for improved SpO2 accuracy.
Why Choose the MAX30102 Module from The Tech Depot?
- 100% Authentic MAX30102 IC: Sourced directly from authorized distributors - no clones, no counterfeits. Verified genuine Maxim Integrated silicon.
- Reliable Module Design: Quality breakout board with onboard 1.8V regulator, bypass capacitors, and proper decoupling for stable, noise-free operation out of the box.
- Extensive Library Support: Works seamlessly with popular Arduino libraries (SparkFun MAX3010x, DFRobot Heart Rate) - get readings in minutes with example code.
- 1-5 days shipping Across India: Ships from our Bengaluru warehouse. Same-day delivery available within Bengaluru city.
- Expert Technical Support: Our
