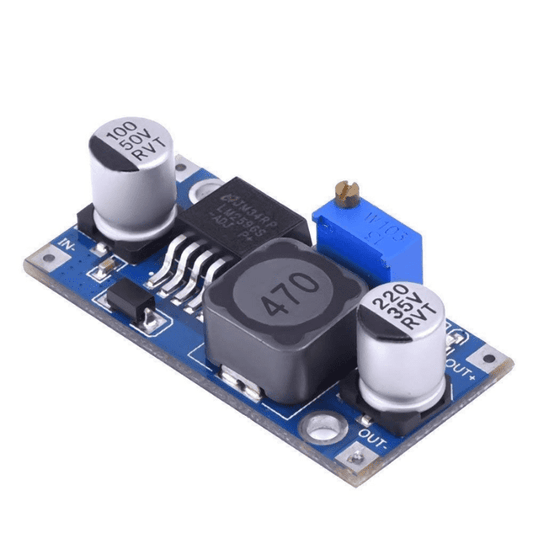

Efficiently step down DC voltage with this versatile LM2596-based buck converter module from The Tech Depot, Bengaluru. Featuring an onboard potentiometer for precise output voltage adjustment, this compact module delivers up to 3A of continuous current - ideal for powering microcontrollers, sensors, LED strips, and embedded systems from higher-voltage sources. Fast shipping, 7-day warranty on manufacturing defects, and dedicated support.
Specifications
| Regulator IC | LM2596S DC-DC Buck Converter |
| Input Voltage Range | 4.5V - 40V DC |
| Output Voltage Range | 1.25V - 37V DC (Adjustable via Potentiometer) |
| Output Current | 3A (Max Continuous), 4A (Peak) |
| Conversion Efficiency | Up to 92% |
| Switching Frequency | 150 kHz |
| Output Ripple | <= 30mV (Typical) |
| Voltage Regulation | Potentiometer (Multi-Turn Trimpot) |
| Protection Features | Overcurrent, Thermal Shutdown, Short-Circuit Protection |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Module Dimensions | Approx. 43mm x 21mm x 14mm |
| Weight | Approx. 10g |
| Input/Output Connection | Solder Pads / Pin Headers |
| Type | DC-DC Step Down (Buck) Power Supply Module |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Wide Input Range (4.5V-40V): Accept power from batteries, solar panels, laptop adapters, or automotive 12V/24V systems with ease.
- Adjustable Output (1.25V-37V): Dial in your exact target voltage using the onboard multi-turn potentiometer - from 1.25V for low-power logic up to 37V for motor drivers.
- High Efficiency (Up to 92%): Switching regulator topology generates significantly less heat than linear regulators, reducing wasted energy and eliminating the need for bulky heatsinks in most applications.
- 3A Continuous Output: Comfortably powers Arduino, Raspberry Pi, ESP32, servo motors, relay modules, LED strips, and other moderate-load devices.
- Built-In Protection: Overcurrent limiting, thermal shutdown, and short-circuit protection safeguard both the module and your connected circuit.
- Ultra-Compact Form Factor: Tiny PCB footprint (43mm x 21mm) fits into enclosures, breadboard setups, and tight project spaces without difficulty.
- Low Output Ripple: Clean regulated output (<=30mV ripple) suitable for powering noise-sensitive analog circuits and microcontrollers.
- Drop-In Replacement: Direct substitute for inefficient 7805/78xx linear regulators in existing designs - simply swap and adjust.
Why Choose This LM2596 Module?
- 100% authentic LM2596S IC sourced from trusted semiconductor suppliers - no counterfeit or remarked chips.
- Quality PCB with proper filtering capacitors, Schottky diode, and inductor rated for full load operation.
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse to most locations across India.
- Expert technical support included - get help with wiring, voltage setting, and integration into your project.
- Tested and verified before dispatch for correct regulation and output stability.
How It Works
The LM2596 is a monolithic integrated circuit that functions as a step-down (buck) switching voltage regulator. It rapidly switches the input voltage on and off at 150 kHz, and the onboard inductor and capacitor smooth this pulsed energy into a stable DC output. By turning the potentiometer, you adjust the feedback voltage divider ratio, which changes the regulated output voltage. This switching approach is far more efficient than linear regulation - instead of burning excess voltage as heat, the buck converter only draws the energy actually needed by your load.
How to Use
- Connect Input Power: Wire your DC source (4.5V-40V) to the IN+ and IN- pads on the module. Observe correct polarity - reverse polarity can damage the module.
- Adjust Output Voltage BEFORE Connecting Load: With input power applied and NO load connected, use a multimeter on the OUT+ and OUT- pads. Turn the potentiometer (small brass screw) clockwise or counterclockwise until the multimeter reads your desired output voltage.
- Connect Your Load: Once the output voltage is confirmed, wire your target device or circuit to the OUT+ and OUT- pads.
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
