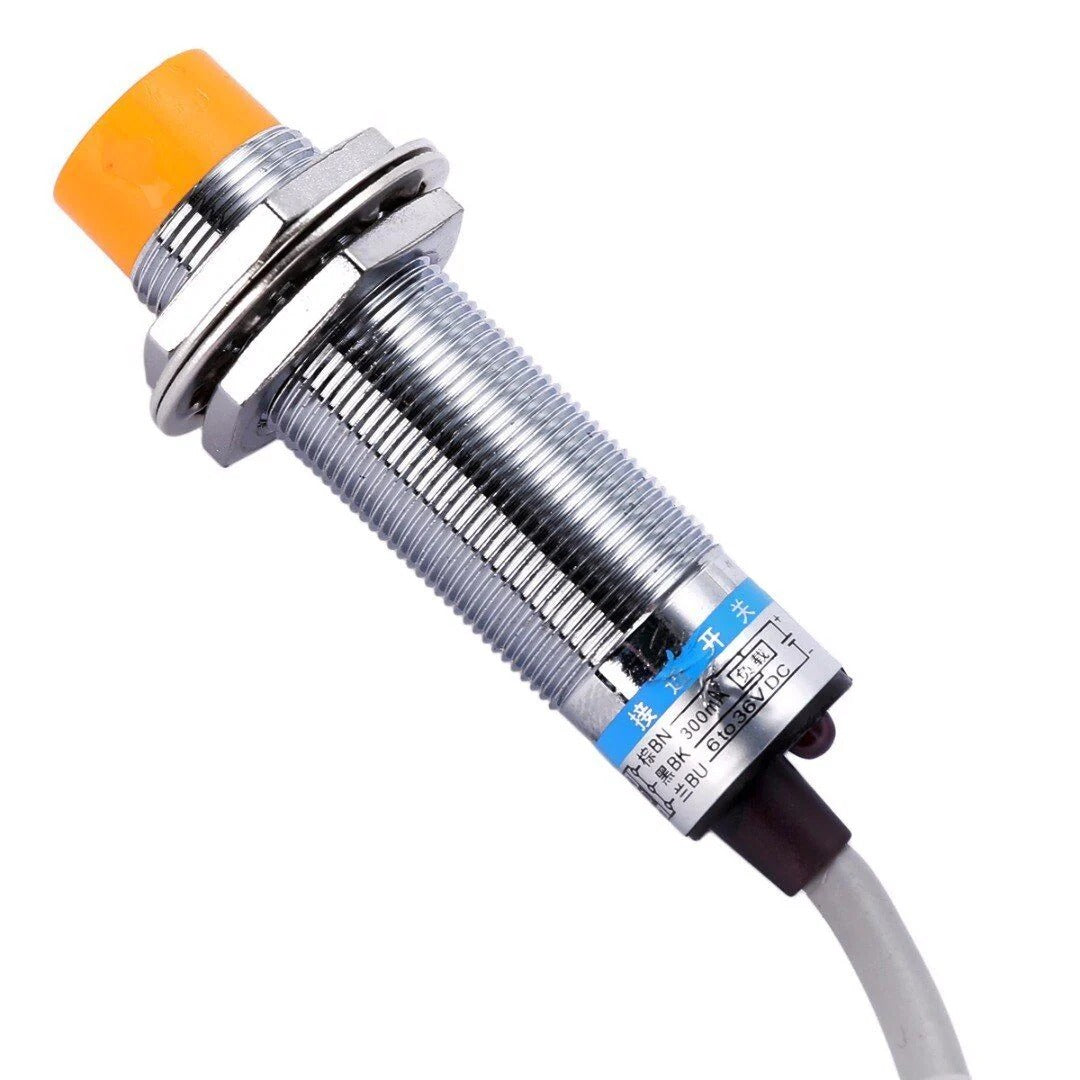

LJ18A3-8-ZBX 8mm Approach Sensor Inductive Proximity
LJ18A3-8-ZBX 8mm Approach Sensor Inductive Proximity
Shipping calculated at checkout.
Looking to buy LJ18A3-8-ZBX 8mm Approach Sensor Inductive Proximity at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
Specifications
| Model | LJ18A3-8-ZBX |
| Sensor Type | Inductive Proximity Sensor (Non-Contact) |
| Detection Distance | 8mm (adjustable) |
| Output Type | NPN Normally Open (NO) - 3-Wire DC |
| Operating Voltage | DC 6V-36V |
| Output Current | <=300mA |
| Thread Size | M18 x 1 (18mm diameter barrel) |
| Housing Material | Nickel-plated brass body |
| Sensing Face | Non-shielded (flush mounting not required) |
| Detectable Materials | Ferrous metals (iron, steel); reduced range for non-ferrous (aluminum, copper, brass) |
| Switching Frequency | <=500Hz |
| Response Time | <=1ms |
| Protection Rating | IP67 (dust-tight and water-resistant) |
| Operating Temperature | -25 degreesC to +70 degreesC |
| Indicator | Built-in LED for detection status |
| Cable Length | Approximately 1.2m (3-wire: Brown = V+, Blue = V, Black = Signal) |
| Origin | Original / Authentic |
Why Choose LJ18A3-8-ZBX 8mm Approach Sensor Inductive Proximity?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of LJ18A3-8-ZBX 8mm Approach Sensor Inductive Proximity
- Generous 8mm sensing range - detects metal objects reliably without physical contact, reducing mechanical wear
- Wide voltage compatibility (6V-36V DC) - works seamlessly with Arduino (via pull-up), PLC inputs, industrial controllers, and 12V/24V automation systems
- IP67-rated rugged construction - nickel-plated brass barrel withstands dust, moisture, vibration, and harsh workshop environments
- Fast 500Hz switching - suitable for high-speed counting, RPM measurement, and rapid position detection
- Built-in LED indicator - instantly confirms detection status during installation and troubleshooting
- Standard M18 thread with nuts included - easy panel or bracket mounting with precise distance adjustment
- 100% authentic from trusted, verified suppliers
Perfect For
- 3D Printer Auto Bed Leveling & Homing: Use as an endstop or Z-probe for precise metal bed detection on printers like Ender 3, Prusa, and custom CoreXY builds.
- CNC Machine Home & Limit Switches: Replace mechanical limit switches with this wear-free sensor for reliable axis homing on CNC routers, mills, and laser cutters.
- Industrial Conveyor Object Counting: Detect and count metal parts on production lines with the fast 500Hz response for accurate throughput monitoring.
- Robotic Arm Position Feedback: Integrate into robotic joints or end-effectors for non-contact position confirmation and collision avoidance.
- RPM & Speed Measurement: Mount near a rotating shaft with a metal target to measure motor RPM for tachometer or closed-loop speed control projects.
- Automated Door & Gate Systems: Detect vehicle or metal gate positions for automatic opening/closing systems in parking and access control.
- Arduino & Raspberry Pi
LJ18A3-8-ZBX 8mm Inductive Proximity Approach Sensor
Reliable non-contact metal detection for automation, CNC machines, and robotics projects. This M18-threaded inductive proximity sensor from Tech Depot India, Bengaluru offers an 8mm sensing distance with NPN normally open output - ideal for industrial control, 3D printer homing, and DIY automation.
Wiring Guide
| Wire Color | Connection |
| Brown | V+ (6-36V DC positive supply) |
| Blue | V (DC ground / GND) |
| Black (Signal) | NPN NO output - connects to PLC input, microcontroller digital pin (with pull-up resistor), or relay module |
Note: NPN output sinks current to ground when activated. For Arduino use, connect the signal wire to a digital input pin with a 10kOhm pull-up resistor to 5V. The pin reads LOW when metal is detected and HIGH when no metal is present.
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your LJ18A3-8-ZBX 8mm Approach Sensor Inductive Proximity today and start building your next project.
