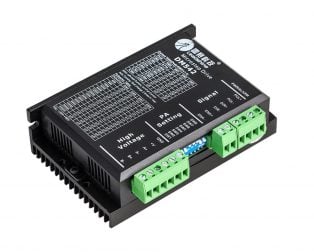

Leadshine DM542 Digital Stepper Motor Driver
Leadshine DM542 Digital Stepper Motor Driver
Leadshine DM542 Digital Stepper Motor Driver
The Leadshine DM542 is a high-performance digital stepper motor driver designed for precise motion control in CNC machines, 3D printers, laser engravers, and industrial automation systems. Featuring advanced digital signal processing and anti-resonance technology, this driver delivers ultra-smooth, low-noise stepper motor operation across a wide range of speeds. Available now at The Tech Depot, Bengaluru - trusted by makers, engineers, and professionals across India. Fast shipping, 7-day warranty on manufacturing defects, and expert technical support included.
Key Features
- Advanced Digital Signal Processing: Built-in DSP technology ensures smooth motor movement with minimal vibration and noise.
- Anti-Resonance Technology: Eliminates mid-range resonance for consistent torque delivery at all speeds.
- Wide Input Voltage Range: Operates from 20V to 50V DC, compatible with a variety of power supply configurations.
- Adjustable Output Current: Selectable peak current from 1.0A to 4.2A via DIP switches to match your motor's requirements.
- Micro-Stepping Up to 25,600 Steps/Rev: Configurable micro-stepping resolution for ultra-precise positioning and smooth motion.
- Auto Idle Current Reduction: Automatically reduces current to the motor when idle, lowering heat generation and power consumption.
- Pulse Input Modes: Supports PUL/DIR, CW/CCW, and dual-pulse input signal modes for flexible controller compatibility.
- Compact & The Tech Depot Design: Aluminum heat-dissipating enclosure built for reliable operation in demanding environments.
Specifications
| Brand | Leadshine |
| Model | DM542 |
| Type | Digital Stepper Motor Driver |
| Compatible Motors | 2-phase & 4-phase hybrid stepper motors (NEMA 17, NEMA 23) |
| Input Voltage | 20-50V DC |
| Output Current (Peak) | 1.0A - 4.2A (DIP switch selectable) |
| Micro-Step Resolution | 400 - 25,600 steps/rev (DIP switch selectable) |
| Pulse Input Frequency | Up to 300 kHz |
| Signal Input Modes | PUL/DIR, CW/CCW, Dual Pulse |
| Signal Input Type | Single-ended or differential (5V optically isolated) |
| Idle Current Reduction | Automatic (reduces to ~50% after 0.4s idle) |
| Operating Temperature | -10 degreesC to +45 degreesC |
| Dimensions | Approx. 118 x 75.4 x 34.2 mm |
| Weight | Approx. 200g |
| Protection | Over-voltage, over-current, short-circuit protection |
| Origin | Original / Authentic Leadshine Product |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
DIP Switch Configuration
| Function | Switches | Options |
|---|---|---|
| Micro-Step Resolution | SW5, SW6, SW7, SW8 | 400, 800, 1600, 3200, 6400, 12800, 25600 steps/rev and more |
| Output Current (Peak) | SW1, SW2, SW3 | 1.0A, 1.5A, 2.0A, 2.5A, 3.0A, 3.5A, 4.0A, 4.2A |
| Idle Current Reduction | SW4 | ON: 50% reduction / OFF: Full current maintained |
Why Choose the Leadshine DM542?
- 100% Authentic Leadshine Product: Sourced directly from authorized distributors - no clones or counterfeits.
- Industry-Proven Reliability: The DM542 is one of the most widely used stepper drivers in CNC and automation worldwide.
- Superior Motion Quality: Digital signal processing and anti-resonance technology outperform traditional analog drivers.
- Easy Setup: Simple DIP switch configuration - no software required for basic operation.
- Wide Motor Compatibility: Drives NEMA 17 and NEMA 23 stepper motors commonly used in CNC, 3D printing, and robotics.
- Built-In Protections: Over-voltage, over-current, and short-circuit protection safeguard your driver and motor.
- 1-5 days shipping:
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
