L298 motor driver module
L298 motor driver module
Shipping calculated at checkout.
Looking to buy L298 motor driver module at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.

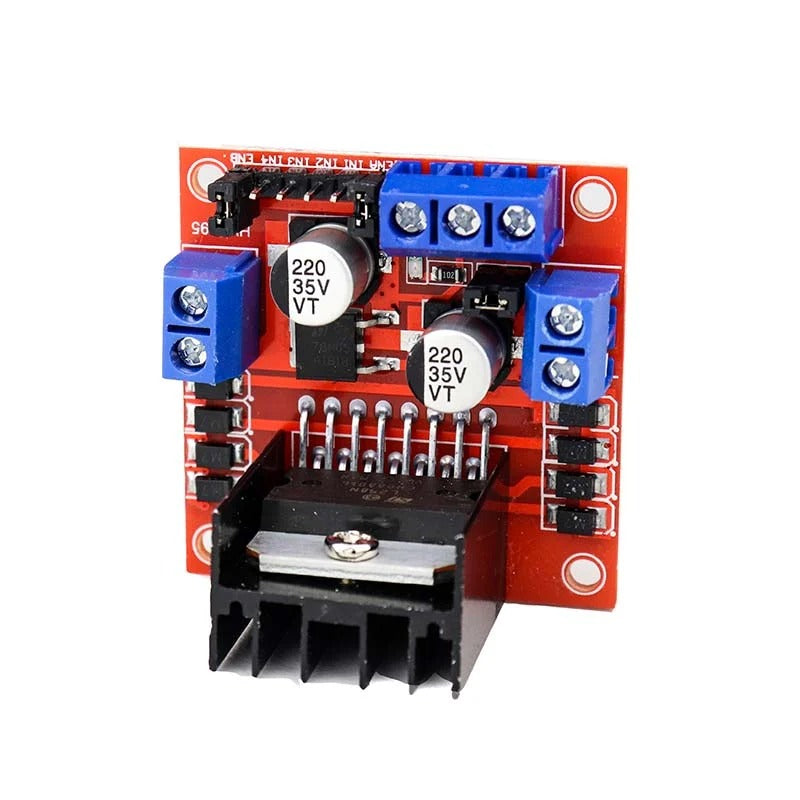

Drive DC motors and stepper motors with precision using the L298 Motor Driver Module from Tech Depot India, Bengaluru. This dual H-bridge module delivers up to 2A per channel, making it the go-to choice for robotics, automation, and motor control projects.
Specifications
| Driver IC | L298N Dual H-Bridge |
| Motor Channels | 2 DC Motors or 1 Stepper Motor |
| Logic Voltage | 5V |
| Drive Voltage | 5V - 35V |
| Max Current per Channel | 2A (peak), 1.5A (continuous) |
| Control Inputs | IN1, IN2, IN3, IN4 (TTL compatible) |
| Speed Control | ENA & ENB PWM-capable enable pins |
| On-board Regulator | 78M05 - provides 5V output for MCU |
| Protection | Built-in flyback diodes for back-EMF protection |
| Board Dimensions | Approx. 43 mm x 43 mm x 27 mm |
| Mounting | 4 x M3 screw holes |
| Connector Type | Screw terminals for motor & power; pin headers for logic |
| Compatibility | Arduino, Raspberry Pi, ESP32, STM32, PIC & more |
| Origin | Original / Authentic |
Why Choose L298 motor driver module?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of L298 motor driver module
- Dual H-Bridge Power: Independently control two DC motors - forward, reverse, brake, and coast - or drive one bipolar stepper motor with a single module.
- PWM Speed Control: Adjust motor speed smoothly by feeding PWM signals to the ENA/ENB enable pins from any microcontroller.
- Wide Voltage Range: Accepts 5V to 35V motor supply, accommodating everything from small hobby motors to larger 24V industrial actuators.
- Built-in 5V Regulator: The on-board 78M05 regulator can power your Arduino or other logic board directly - no extra power supply needed for prototyping.
- Back-EMF Protection: Integrated flyback diodes safeguard the driver IC from voltage spikes generated when motors start, stop, or reverse direction.
- Universal Compatibility: TTL-level logic inputs work seamlessly with Arduino Uno/Mega/Nano, ESP32, ESP8266, Raspberry Pi GPIO, STM32, and virtually any 3.3V/5V microcontroller.
- Easy Wiring: Screw terminals for motor and power connections ensure secure, solderless hookup; standard 2.54 mm pin headers for logic connections.
- Heatsink Included: The aluminum heatsink on the L298N IC helps dissipate heat during continuous high-current operation.
Perfect For
- Line-Following Robot: Pair with IR sensors and an Arduino to build a robot that autonomously tracks a line - a classic robotics starter project.
- Obstacle-Avoiding Robot: Combine with an ultrasonic sensor (HC-SR04) to create a smart car that detects and navigates around obstacles in real time.
- Bluetooth / Wi-Fi Controlled Car: Use an HC-05 Bluetooth module or ESP32 to wirelessly control a two-wheel-drive or four-wheel-drive chassis from your smartphone.
- CNC Pen Plotter: Drive stepper motors to build a compact pen plotter or mini CNC machine for drawing or PCB etching.
- Automated Conveyor Belt: Control belt speed and direction for a miniature conveyor system - ideal for industrial automation prototypes and college projects.
- Smart Irrigation Pump Control: Use soil moisture sensor data to automatically turn a water pump on and off, controlling flow direction and speed.
- Robotic Arm Base Rotation: Drive the base motor of a robotic arm with precise forward/reverse and speed control for pick-and-place applications.
- Educational Lab Experiments: Demonstrate H-bridge theory, PWM motor control, and embedded systems concepts in engineering coursework.
Pin Configuration & Wiring Guide
| VMS (Motor Supply) | Connect 5V-35V external power for motors |
| GND | Common ground - connect to MCU ground and power supply ground |
