L298 2A Dual Motor Driver Module with PWM Control
L298 2A Dual Motor Driver Module with PWM Control
L298 2A Dual Motor Driver Module with PWM Control

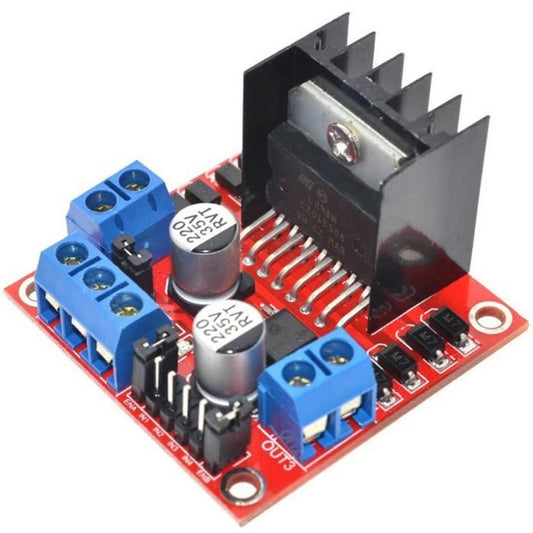

Drive two DC motors or one stepper motor with precise speed and direction control using this robust L298-based dual H-bridge motor driver module. Featuring onboard PWM control inputs, screw terminal connections, and a peak current capacity of 2A per channel, this module is the go-to choice for robotics, automation, and mechatronics projects. Designed for seamless integration with Arduino, Raspberry Pi, ESP32, and other popular microcontrollers.
Specifications
| Driver IC | L298N Dual Full-Bridge |
| Motor Channels | 2 (DC Motors) or 1 (Stepper Motor) |
| Logic Voltage | 5V (onboard regulator available) |
| Motor Supply Voltage | 5V - 35V DC |
| Peak Current per Channel | 2A |
| Continuous Current per Channel | 1A (recommended with heatsink) |
| Control Inputs | IN1, IN2, IN3, IN4 (direction) + ENA, ENB (PWM speed) |
| PWM Frequency Range | Up to 25 kHz |
| Onboard 5V Regulator | Yes (78M05, enabled via jumper when Vs <= 12V) |
| Protection | Built-in flyback diodes for back-EMF protection |
| Connections | Screw terminals (motor & power), pin headers (logic) |
| Board Dimensions | Approx. 43 mm x 43 mm x 27 mm |
| Mounting | 4x M3 mounting holes |
| Operating Temperature | 20 degreesC to +135 degreesC |
| Weight | ~30 g |
| Compatibility | Arduino, Raspberry Pi, ESP32, STM32, PIC, and more |
| Origin | Original/Authentic L298N IC |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Dual H-Bridge Architecture: Independently control two DC motors in forward, reverse, brake, or coast modes simultaneously.
- PWM Speed Control: Dedicated ENA and ENB enable pins accept PWM signals for smooth, variable speed regulation from 0-100%.
- Wide Voltage Range: Supports motor supply voltages from 5V to 35V, accommodating everything from small hobby motors to larger 24V industrial motors.
- Onboard 5V Regulator: When the motor supply is 12V or below, the built-in 78M05 regulator provides a convenient 5V output to power your microcontroller directly from the module.
- Stepper Motor Compatible: Wire both channels together to drive a single bipolar stepper motor with full-step or half-step control.
- The Tech Depot Screw Terminals: Secure, vibration-resistant connections for motor wires and power supply - ideal for mobile robots and moving platforms.
- Heatsink Included: Pre-mounted aluminum heatsink on the L298N IC helps dissipate heat during sustained high-current operation.
- Back-EMF Protection: Onboard flyback diodes safeguard the driver IC against voltage spikes generated when motors start, stop, or reverse.
- Logic-Level Compatible: 5V TTL-compatible control inputs work directly with Arduino, ESP32, STM32, and other 3.3V/5V logic platforms.
- Compact & Mountable: Four M3 mounting holes allow secure attachment to robot chassis, enclosures, or prototyping boards.
Pin & Terminal Description
| +12V (Vs) | Motor power supply input (5V-35V DC) |
| GND | Common ground (must be shared with microcontroller) |
| +5V | 5V output from onboard regulator (or 5V logic input if jumper removed) |
| ENA | Enable/PWM input for Motor A (HIGH = run, PWM = speed control) |
| IN1 | Direction control input 1 for Motor A |
| IN2 | Direction control input 2 for Motor A |
| IN3 | Direction control input 1 for Motor B |
| IN4 | Direction control input 2 for Motor B |
| ENB | Enable/PWM input for Motor B (HIGH = run, PWM = speed control) |
