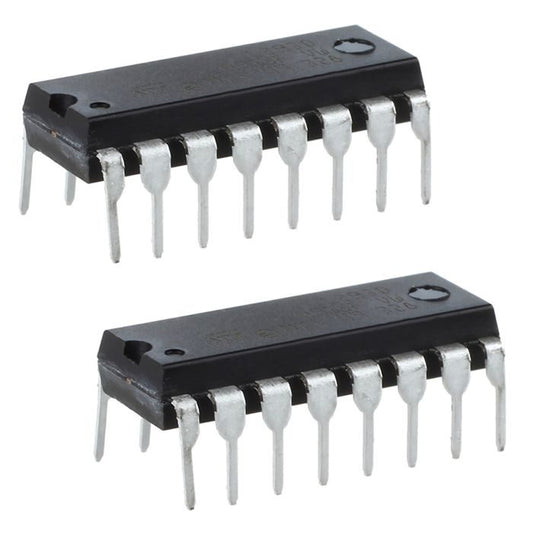

L293D Motor Driver IC (2 Pcs)
L293D Motor Driver IC (2 Pcs)
L293D Motor Driver IC (2 Pcs)
Drive DC motors, stepper motors, and other inductive loads with ease using the L293D Motor Driver IC - a versatile, quad half-H-bridge driver with built-in flyback diodes for motor protection. This pack of 2 ICs from The Tech Depot, Bengaluru, gives you everything you need for dual-motor robotics projects, CNC builds, and automation systems. Fast shipping, 7-day warranty on manufacturing defects, and expert support included.
Specifications
| IC Model | L293D (Texas Instruments compatible) |
| Package | DIP-16 (Dual In-line Package, 16 pins) |
| Quantity | 2 Pcs |
| Output Channels | 4 half-H drivers (2 full H-bridges) |
| Motor Drive Capability | 2 DC motors or 1 stepper motor per IC |
| Supply Voltage (VSS - Logic) | 4.5V to 7V |
| Motor Supply Voltage (VS) | 4.5V to 36V |
| Output Current per Channel | 600 mA continuous |
| Peak Output Current | 1.2A per channel (non-repetitive) |
| Built-in Protection Diodes | Yes - internal clamp diodes on all outputs |
| Logic Input Compatibility | TTL / CMOS (works with 3.3V & 5V logic) |
| Enable Pins | 2 enable pins for independent channel control & PWM speed control |
| Thermal Shutdown | Yes - built-in overtemperature protection |
| Operating Temperature | 0 degreesC to 70 degreesC |
| Breadboard Compatible | Yes - standard 0.1" DIP-16 pin spacing |
| Compatible Platforms | Arduino, Raspberry Pi, ESP32, ESP8266, STM32, PIC, 8051 |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose This?
- Built-in flyback diodes: The "D" in L293D means internal clamp diodes are included - no need to add external protection diodes, simplifying your circuit and protecting the IC from back-EMF spikes generated by motors.
- Drive 2 motors per IC: Each L293D contains two independent full H-bridge drivers, allowing you to control two DC motors in both forward and reverse directions, or drive one bipolar stepper motor.
- PWM speed control ready: Use the enable pins with PWM signals from Arduino or any microcontroller to achieve smooth, variable-speed motor control without additional components.
- Wide voltage range: Motor supply voltage up to 36V makes this IC suitable for everything from small hobby motors to larger 12V and 24V industrial motors.
- Pack of 2 ICs: Get a spare or drive up to 4 DC motors by using both ICs - ideal for 4-wheel-drive robot chassis and multi-axis projects.
- Breadboard & perfboard friendly: Standard DIP-16 package plugs directly into breadboards, perfboards, and IC sockets for easy prototyping and replacement.
- 100% authentic: Sourced directly from authorized distributors with verified authenticity.
- 1-5 day shipping, 7-8 day delivery: Fast delivery from our Bengaluru warehouse to most locations across India.
- Expert technical support: Full guidance on wiring, coding, and troubleshooting included via email and WhatsApp.
Project Ideas
- Line-Following Robot: Pair with IR sensors and an Arduino to build a robot that autonomously follows a black line on a white surface - a classic robotics competition project.
- Obstacle-Avoiding Robot: Combine with an ultrasonic sensor (HC-SR04) and Arduino to create a robot that detects and navigates around obstacles in real time.
- Bluetooth/Wi-Fi Controlled Car: Use with an HC-05 Bluetooth module or ESP32 to build a smartphone-controlled RC car with forward, reverse, left, and right movement.
- Bipolar Stepper Motor Controller: Drive a bipolar stepper motor for CNC machines, 3D printer prototypes, or precision positioning systems using a single L293D.
- 4WD Robot Chassis: Use both ICs to independently control four DC motors on a 4-wheel-drive robot platform for superior traction and maneuverability.
- Automated Curtain/Blind System: Build a home automation project that opens and closes curtains using a DC motor controlled via Arduino and a timer or IoT trigger.
- Conveyor Belt Prototype: Drive a small DC motor to power a miniature conveyor belt system for industrial automation learning and demonstrations.
- Learning & Education: Ideal for understanding H-
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
