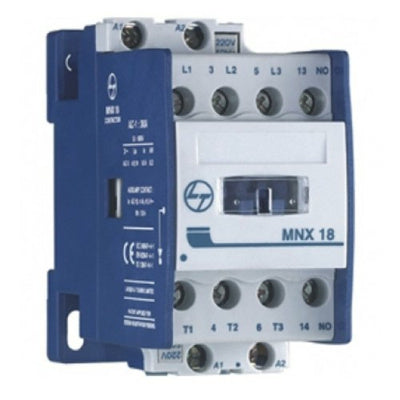

L&T Larsen & Toubro MNX 18 Power Contactors 220-240V AC, 3 Pole
L&T Larsen & Toubro MNX 18 Power Contactors 220-240V AC, 3 Pole
L&T Larsen & Toubro MNX 18 Power Contactors 220-240V AC, 3 Pole
The L&T MNX 18 Power Contactor is a robust electromagnetic switching device designed for three-phase AC motor control applications operating at 220-240V supply voltage. Industrial electricians, automation engineers, and plant maintenance professionals rely on this contactor for reliable load switching in motors up to 18A rated current capacity. This device solves critical challenges in motor circuit protection and control by providing safe electromagnetic isolation, arc suppression, and fail-safe operation in demanding industrial environments.
Product Overview
The MNX 18 Power Contactor operates on the principle of electromagnetic attraction, where an AC coil generates a magnetic field that pulls an armature to engage three main contacts simultaneously. When the coil is energized, the movable contacts connect with stationary contacts to complete the motor circuit, and when de-energized, spring tension rapidly separates the contacts to interrupt the circuit. This design ensures synchronized three-phase switching with minimal contact bounce, critical for preventing voltage imbalance and protecting connected equipment. The 220-240V AC coil rating makes it compatible with standard Indian single-phase control circuits while managing three-phase motor loads efficiently.
The MNX 18 model incorporates advanced arc suppression technology with silver-cadmium alloy contacts that withstand thousands of switching cycles without degradation. The robust pole structure provides mechanical durability against vibration and thermal stress in harsh industrial settings. Built-in overload protection features and emergency stop compatibility make this contactor suitable for both manual and automated control systems. The compact DIN rail mounting design allows space-efficient installation in control panels, while the modular construction enables easy maintenance and contact replacement without complete unit replacement.
Key Specifications
| Specification | Details |
| Product Type | 3 Pole Power Contactor |
| Brand | L&T Larsen & Toubro |
| Model | MNX 18 |
| Coil Voltage | 220-240V AC |
| Rated Current | 18 Amperes |
| Number of Poles | 3 Pole |
| Contact Configuration | 3NO (Normally Open) |
| Frequency | 50/60 Hz |
| Contact Material | Silver-Cadmium Alloy |
| Mechanical Life | 5 Million Cycles |
| Electrical Life | 500,000 Cycles at Rated Load |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
Key Features
- Three-phase synchronized switching with simultaneous contact engagement across all poles ensuring balanced load distribution and preventing single-phase motor operation
- 220-240V AC coil voltage compatible with standard Indian control circuits and emergency stop systems without additional transformers
- 18A rated current capacity suitable for small to medium industrial motors ranging from 2-5 HP depending on load characteristics and duty cycle
- Silver-cadmium alloy contacts provide superior arc suppression and extended contact life even under frequent switching conditions
- Compact DIN rail mounting design saves valuable control panel space while maintaining accessibility for maintenance and troubleshooting
- Integrated mechanical interlocking prevents simultaneous contact closure preventing short circuits in complex control schemes
Applications and Use Cases
- Three-phase pump motor control in water distribution systems where 18A contactors manage start-stop cycles for submersible and centrifugal pumps
- Industrial fan and blower speed control in HVAC systems where reliable electromagnetic switching maintains consistent air circulation in manufacturing facilities
- Conveyor belt motor switching in production lines requiring frequent start-stop operations with minimal electrical noise and arc generation
- Compressor motor management in pneumatic systems where the contactor handles inrush currents during motor startup and provides safe isolation during maintenance
- Machine tool spindle motor control in CNC and lathe applications requiring precise switching synchronization and thermal stability
- Textile machinery motor operation where the contactor manages multiple spindle motors simultaneously with coordinated three-phase switching
How to Use
Installation of the MNX 18 Power Contactor begins with mounting on a standard 35mm DIN rail within your control panel, ensuring adequate spacing from other components for heat dissipation. Connect the three-phase motor load to the main contacts using appropriately sized copper conductors, typically 2.5-4 square millimeter cross-section for 18A loads. The 220-240V AC coil terminals must be connected to your control circuit through a control transformer or direct single-phase supply, with a protective 16A circuit breaker in the coil circuit to prevent nuisance tripping.
For safe operation, always install the contactor in series with an overload relay rated between 15-20A to protect the motor from sustained overcurrent conditions. Connect the control circuit through an emergency stop button and manual start-stop pushbuttons, ensuring the contactor coil is de-energized immediately upon emergency stop activation. During commissioning, verify three-phase continuity across all poles with a multimeter to confirm proper contact engagement, and perform a no-load test cycle to ensure smooth mechanical operation before connecting the actual motor load. Maintenance requires periodic visual inspection of contacts for pitting or discoloration every 6 months, and complete contact replacement after approximately 500,000 electrical cycles or visible contact erosion exceeding 1mm.
Frequently Asked Questions
What is the maximum motor horsepower rating for the MNX 18 contactor?
The MNX 18 rated at 18A can safely control three-phase motors up to approximately 4-5 HP at 220-240V depending on motor efficiency class and power factor. For exact sizing, multiply the motor nameplate current by 1.25 and ensure it does not exceed 18A. Always verify with motor specifications and local electrical codes before installation.
Can the MNX 18 be used for DC motor applications?
No, the MNX 18 is specifically designed for AC applications at 50/60 Hz frequency. Using it for DC loads will cause severe contact arcing and rapid erosion because DC current lacks the natural zero-crossing points that help extinguish arcs. For DC applications, you must use DC-rated contactors with different contact materials and arc suppression designs.
What is the difference between MNX 18 and other L&T contactor models?
The MNX 18 is designed for 18A rated current, while other models like MNX 9 handle 9A and MNX 32 handles 32A. The MNX series shares similar construction and reliability but differ in contact size, coil power consumption, and thermal dissipation capacity. Choose based on your exact motor current requirement with a safety margin of 20-25 percent.
How do I know if the contactor contacts need replacement?
Inspect contacts annually for visible pitting, discoloration, or erosion. If contacts show erosion exceeding 1mm thickness, voltage drop across closed contacts increases above 0.5V per pole, or the contactor fails to engage reliably, replace the contact assembly immediately. Contact replacement is straightforward and costs significantly less than complete unit replacement.
Is the MNX 18 compatible with variable frequency drives?
The MNX 18 can work with VFDs when used as a bypass contactor in soft-starter configurations, but it is not suitable for direct VFD motor switching due to high dV/dt transients that cause premature contact wear. For VFD applications, use specialized solid-state contactors or ensure proper RC snubber networks across the contactor coil.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
