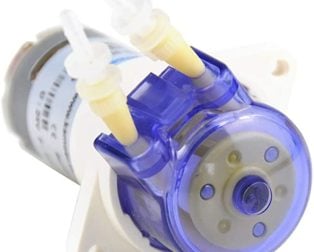

Kamoer KFS-HA2-B04P Peristaltic Pump
Kamoer KFS-HA2-B04P Peristaltic Pump
Kamoer KFS-HA2-B04P Peristaltic Pump
The Kamoer KFS-HA2-B04P is a precision peristaltic pump designed for accurate micro-dosing and fluid transfer applications requiring contamination-free operation. Laboratory technicians, pharmaceutical manufacturers, and aquaculture specialists rely on this pump for precise liquid metering with flow rates up to 4 ml/min and minimal pulsation. This pump solves the critical challenge of delivering consistent, bubble-free fluid transfer without contact between the liquid and pump components, making it ideal for sensitive chemical and biological applications.
Product Overview
The Kamoer KFS-HA2-B04P operates on the peristaltic principle, where a rotating cam mechanism compresses and releases silicone tubing in sequence, creating a smooth pumping action that moves fluid forward without any metallic contact. This design eliminates contamination risk and allows the pump to handle corrosive chemicals, viscous solutions, and sterile liquids with equal efficiency. The B04P variant features a compact form factor with integrated stepper motor control, making it suitable for both standalone operation and integration into automated laboratory systems.
What distinguishes the KFS-HA2-B04P is its exceptional flow accuracy of plus-minus 2 percent, achieved through precision-engineered rotor mechanics and high-quality silicone tubing. The pump operates silently at low noise levels below 60 decibels, making it suitable for sensitive laboratory environments. Its brushless DC motor design ensures long operational life with minimal maintenance, while the compact housing allows installation in space-constrained applications. The pump delivers consistent performance across a wide temperature range and is compatible with multiple tubing sizes for flexible application scaling.
Key Specifications
| Specification | Details |
| Product Type | Peristaltic Pump with Stepper Motor Control |
| Brand | Kamoer |
| Model | KFS-HA2-B04P |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Maximum Flow Rate | 4 ml/min at 60 rpm |
| Flow Accuracy | Plus-minus 2 percent |
| Motor Type | Brushless DC Stepper Motor |
| Operating Voltage | 12V DC |
| Tubing Compatibility | Silicone tubing 1.6mm inner diameter |
| Noise Level | Below 60 decibels |
| Operating Temperature | 0 to 50 degrees Celsius |
Key Features
- Precision Peristaltic Design: Delivers accurate micro-dosing with plus-minus 2 percent flow accuracy, eliminating measurement errors in critical pharmaceutical and research applications
- Contamination-Free Operation: Silicone tubing eliminates metal-to-liquid contact, ensuring sterile transfer of sensitive biological samples and chemical solutions
- Brushless DC Motor: Provides silent, reliable operation with extended lifespan and minimal maintenance requirements compared to traditional brush motors
- Compact Form Factor: Space-efficient design allows installation in laboratory benchtops, automated systems, and portable analytical equipment
- Wide Compatibility: Works with standard silicone tubing and integrates seamlessly with external control systems via stepper motor interface
- Low Pulsation Output: Smooth fluid delivery minimizes pressure spikes, protecting delicate samples and ensuring consistent results in sensitive applications
Applications and Use Cases
- Pharmaceutical Dosing: Precise metering of active pharmaceutical ingredients and reagents in drug formulation and quality control laboratories where accuracy directly impacts product efficacy
- Aquaculture and Hydroponics: Automated nutrient and medication delivery systems for fish farming and plant cultivation, maintaining optimal chemical concentrations without contamination
- Laboratory Automation: Integration into automated analysis systems, chromatography setups, and sample preparation workflows requiring reliable micro-fluid transfer
- Chemical Processing: Safe handling and transfer of corrosive, toxic, or volatile chemicals in research and industrial settings where pump material compatibility is critical
- Medical Device Manufacturing: Sterile fluid transfer in medical device assembly and testing, maintaining ISO cleanroom standards and preventing cross-contamination
- Environmental Testing: Water quality analysis and sample collection automation in environmental monitoring laboratories requiring precise volume measurement
How to Use
Begin by inserting the silicone tubing into the pump head, ensuring the tubing sits properly within the compression chamber. Connect the pump to a 12V DC power supply and attach your control interface to the stepper motor terminals. Prime the pump by running it for 10-15 seconds to remove air bubbles from the tubing before beginning actual fluid transfer. Adjust the rotation speed using your control system, starting at lower speeds for initial testing and gradually increasing to the desired flow rate.
For optimal performance, replace the silicone tubing every 3-6 months depending on usage intensity and chemical exposure, as tubing degradation affects accuracy over time. Always ensure the pump operates within the specified temperature range of 0 to 50 degrees Celsius, and keep the motor and tubing area clean from chemical residue. When transferring corrosive chemicals, flush the tubing with distilled water immediately after use to prevent material degradation. Store the pump in a dry environment when not in use, and avoid prolonged operation without load, as this can damage the motor bearings.
Frequently Asked Questions
What is the maximum flow rate and how do I control it?
The Kamoer KFS-HA2-B04P delivers a maximum flow rate of 4 ml/min at 60 rpm. You control the flow rate by adjusting the motor rotation speed through your control interface, typically using PWM signals or stepper motor drivers. Lower speeds produce proportionally lower flow rates, allowing precise micro-dosing from 0.1 ml/min upward. The linear relationship between motor speed and flow rate makes it easy to calculate exact volumes for time-based dispensing.
Can this pump handle corrosive chemicals and solvents?
Yes, the peristaltic design ensures the liquid contacts only the silicone tubing, not any metal components. This makes the pump suitable for corrosive chemicals, organic solvents, and aggressive reagents that would damage traditional pump materials. However, verify that silicone tubing is compatible with your specific chemical. Some aggressive solvents like acetone or strong bases may degrade silicone over time, so monitor tubing condition regularly and replace as needed.
How often should I replace the silicone tubing?
Silicone tubing typically requires replacement every 3-6 months depending on usage frequency and chemical exposure. High-volume continuous operation or exposure to aggressive chemicals accelerates degradation. Signs of wear include reduced flow accuracy, visible tubing cracks, or discoloration. Replace tubing immediately if you notice these symptoms, as degraded tubing directly impacts the pump's accuracy and can introduce contamination. Keep spare tubing on hand for uninterrupted operation.
Is this pump suitable for sterile pharmaceutical applications?
The Kamoer KFS-HA2-B04P is excellent for pharmaceutical applications due to its contamination-free peristaltic design. The pump itself can be sterilized by replacing the tubing with autoclaved silicone tubing, and the non-contact design prevents product contamination. However, for GMP-regulated manufacturing, verify that the pump meets your facility's validation requirements and consider calibration certificates for regulatory compliance. Our technical team can guide you through validation procedures.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India. You will receive tracking information via email and SMS once your order ships. Express delivery options may be available for urgent requirements, so contact our sales team for expedited shipping quotes.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse. The pump includes a 7-day warranty covering manufacturing defects in motor, tubing, and mechanical components. Extended warranty options are available upon request.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote. We offer special pricing for educational institutions, research laboratories, and manufacturing facilities. Volume discounts increase with order quantity, and we can arrange customized delivery schedules for large orders.
