Kamoer 24V 1A 32ml/min BTP Tube Liquid Pump
Kamoer 24V 1A 32ml/min BTP Tube Liquid Pump
Kamoer 24V 1A 32ml/min BTP Tube Liquid Pump

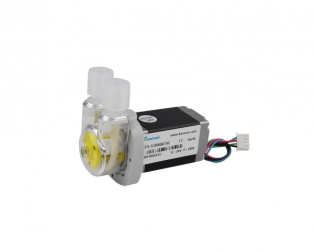

The Kamoer 24V 1A 32ml/min BTP Tube Liquid Pump is a compact peristaltic pump designed for precise liquid transfer and metering applications in laboratory, industrial, and DIY electronics projects. This pump is extensively used by researchers, automation engineers, and hobbyists who require accurate volumetric flow control without contaminating the pumped liquid. It solves the critical challenge of maintaining consistent flow rates while protecting sensitive fluids from contact with pump mechanisms through its tube-based peristaltic design.
Product Overview
The Kamoer peristaltic pump operates on the principle of progressive cavity displacement, where rotating rollers compress a flexible silicone tube in a cyclic motion to move liquid forward without direct contact between the fluid and internal pump components. This 24V DC powered pump delivers a steady flow rate of 32ml per minute at 1 ampere current draw, making it ideal for applications requiring low-to-medium flow rates with exceptional accuracy. The pump features a compact form factor that integrates seamlessly into automated systems, laboratory setups, and embedded electronics projects where space is constrained but reliability is paramount.
What distinguishes this Kamoer model is its BTP tube compatibility, which refers to the standard silicone tubing size that ensures consistent performance and easy replacement. The 24V DC operating voltage makes it compatible with standard power supplies and industrial automation systems, while the 1A current specification allows for safe integration with microcontroller-based control systems and relay circuits. The peristaltic mechanism eliminates backflow issues, prevents liquid siphoning, and allows the pump to run dry without damage, making it exceptionally versatile for diverse liquid handling scenarios from nutrient dosing to chemical dispensing.
Key Specifications
| Specification | Details |
| Product Type | Peristaltic Tube Liquid Pump |
| Brand | Kamoer |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Operating Voltage | 24V DC |
| Current Rating | 1A maximum |
| Flow Rate | 32ml per minute |
| Pump Type | Peristaltic (Tube-based) |
| Tube Compatibility | BTP standard silicone tubing |
| Pressure Rating | Low pressure applications up to 0.3 MPa |
Key Features
- Precise 32ml/min flow rate with minimal pulsation, ensuring accurate liquid metering for chemical dosing, nutrient injection, and laboratory automation applications
- 24V DC operation with 1A current draw enables direct integration with Arduino, PLC systems, and industrial automation controllers without additional power conditioning
- Peristaltic tube design eliminates cross-contamination as liquid contacts only the silicone tube, making it suitable for food-grade, pharmaceutical, and sensitive chemical applications
- Dry-run capable design allows the pump to operate without liquid without internal damage, providing flexibility in system design and emergency scenarios
- Compact form factor with standard BTP tube connections simplifies installation into existing systems and allows quick tube replacement without tools
- Reversible operation capability enables bidirectional flow control when powered with polarity reversal, useful for priming and backflushing applications
Applications and Use Cases
- Aquaponics and hydroponic systems for automated nutrient solution dosing at precise intervals, maintaining optimal plant growth conditions with consistent fertilizer delivery
- Laboratory automation and analytical instruments for reagent dispensing in automated titration, chromatography, and sample preparation workflows
- DIY electronics projects including Arduino-based smart watering systems, aquarium auto-feeders, and IoT-enabled chemical dosing stations
- Industrial process automation for controlled liquid transfer in small-scale manufacturing, coating applications, and precision chemical mixing operations
- Medical and pharmaceutical applications for IV drip rate control, medication infusion systems, and laboratory sample distribution requiring sterile, contamination-free operation
- Environmental monitoring systems for automated water sampling and chemical treatment in water quality testing and purification applications
How to Use
Begin by selecting appropriate BTP silicone tubing compatible with your liquid type and flow requirements. Insert the tubing into the pump inlet and outlet ports, ensuring secure seating. Connect the 24V DC power supply to the pump terminals, observing correct polarity to prevent damage. For initial operation, prime the pump by running it briefly without load to fill the tubing with liquid and remove air pockets. This ensures smooth operation and prevents air locks that could interrupt flow.
For integration with microcontroller systems, connect the pump positive terminal to a relay or MOSFET switch controlled by your Arduino or PLC, with the negative terminal grounded. Implement PWM control if variable flow rates are needed by modulating the voltage between 0-24V. Always use appropriate tubing material for your specific liquid to prevent degradation or contamination. Monitor pump performance regularly and replace tubing every 6-12 months depending on usage intensity and liquid compatibility. For reversible operation, simply reverse the polarity of the power supply connections using a DPDT relay.
Frequently Asked Questions
What is the maximum pressure this pump can handle?
The Kamoer 24V 32ml/min peristaltic pump is rated for low-pressure applications up to approximately 0.3 MPa (3 bar). It is designed for gravity-fed or low-resistance liquid transfer applications. Do not use this pump for high-pressure applications or against significant back-pressure, as this will reduce flow rate accuracy and may damage the pump mechanism.
Can I use this pump with corrosive chemicals or solvents?
The pump itself is compatible with most aqueous solutions and food-grade liquids. However, the BTP silicone tubing has specific chemical compatibility limits. For corrosive chemicals, solvents, or aggressive liquids, verify tubing compatibility before operation. You may need to upgrade to specialized tubing materials like PTFE or PharMed BPT tubing, which offer broader chemical resistance while maintaining BTP port compatibility.
How do I control the flow rate of this pump?
The pump delivers a fixed 32ml/min flow rate at full 24V DC operation. To achieve variable flow rates, implement PWM control using a microcontroller or variable voltage supply to modulate the voltage between 0-24V. Alternatively, use a relay-based on/off control to pulse the pump at different duty cycles. Note that flow rate is approximately proportional to voltage, so 12V will deliver roughly 16ml/min.
Can the pump run dry without damage?
Yes, one of the key advantages of peristaltic pump design is that it can operate without liquid without internal damage. This makes it ideal for priming operations, emergency scenarios, or applications where occasional dry-run conditions occur. However, extended dry operation may accelerate tubing wear, so minimize dry-run duration when possible.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
