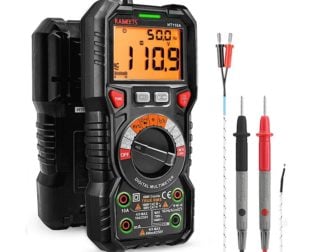

Kaiweets HT118A Multimeter
Kaiweets HT118A Multimeter
Kaiweets HT118A Multimeter
The Kaiweets HT118A is a professional-grade digital multimeter designed for precise measurement of voltage, current, and resistance across AC and DC circuits. Electrical technicians, HVAC professionals, automotive technicians, and maintenance engineers rely on this instrument for troubleshooting complex electrical systems and ensuring circuit integrity. This multimeter solves critical diagnostic challenges by providing accurate readings in demanding field conditions, eliminating guesswork in electrical fault detection and component testing.
Product Overview
The Kaiweets HT118A operates on the principle of digital signal conversion, transforming analog electrical parameters into precise numerical displays through its advanced measurement circuitry. The device features automatic range selection capability that intelligently detects the measurement range, reducing operator error and accelerating troubleshooting workflows. Its true RMS (Root Mean Square) technology ensures accurate AC voltage and current measurements even on non-sinusoidal waveforms, making it exceptionally reliable for testing variable frequency drives, power supplies, and modern electronic equipment where harmonic distortion is present.
What distinguishes the HT118A is its combination of robust build quality, intuitive interface, and comprehensive measurement functions within a compact form factor. The meter incorporates a bright LCD display with excellent readability in both indoor and outdoor environments, dual measurement ranges for flexibility, and overload protection circuits that safeguard internal components against accidental misuse. The ergonomic design with rubberized grip ensures comfortable handling during extended diagnostic sessions, while the integrated test lead storage compartment maintains organization on job sites.
Key Specifications
| Specification | Details |
| Product Type | Digital Multimeter |
| Brand | Kaiweets |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| DC Voltage Range | 0-600V with 0.5% accuracy |
| AC Voltage Range | 0-600V with 1.2% accuracy |
| DC Current Range | 0-10A with 1.5% accuracy |
| Resistance Range | 0-40 Megohm with 1.0% accuracy |
| Display Type | 3.5 digit LCD with backlight |
| Sampling Rate | 2 times per second |
Key Features
- True RMS Measurement Technology: Delivers accurate AC voltage and current readings on complex waveforms, essential for testing modern switching power supplies and variable frequency motor drives
- Automatic Range Selection: Intelligently detects optimal measurement range, eliminating manual range switching and reducing measurement errors during rapid diagnostics
- Overload Protection: Dual fused protection on current measurement circuits prevents permanent damage from accidental connection to high-voltage sources
- Large Backlit LCD Display: 3.5-digit display with automatic backlight activation ensures readability in dimly lit panels, crawl spaces, and outdoor installation sites
- Continuity Testing with Audible Alert: Integrated buzzer provides instant feedback for circuit continuity checks, accelerating wiring verification tasks
- Diode Testing Function: Enables forward voltage drop measurement for semiconductor diagnostics and component verification
Applications and Use Cases
- Automotive Electrical Diagnostics: Test battery voltage, alternator output, starter motor current draw, and sensor signal integrity in vehicle electrical systems during troubleshooting
- Industrial Control Systems: Verify PLC input/output signals, measure transformer secondary voltages, and test motor winding resistance in manufacturing facilities
- HVAC System Maintenance: Diagnose compressor motor current, measure thermostat control voltages, and verify heating element resistance in commercial climate control systems
- Residential Electrical Installations: Validate circuit breaker operation, measure outlet voltage for safety compliance, and test switch continuity during home wiring projects
- Power Supply Troubleshooting: Measure DC rail voltages, verify load current distribution, and test capacitor leakage in electronic equipment repair scenarios
How to Use
Begin by selecting the appropriate measurement function using the rotary selector dial, positioning it toward the measurement type you require: DC voltage, AC voltage, DC current, AC current, or resistance. Insert the black test lead into the common terminal and the red test lead into either the voltage/resistance terminal or the current terminal depending on your measurement. For voltage measurements, connect the probes in parallel across the component or circuit node without interrupting current flow. For current measurements, break the circuit path and insert the multimeter in series, ensuring the red probe connects toward the positive supply.
When measuring AC voltage on unknown circuits, always start with the highest range setting and work downward to prevent display overflow and potential meter damage. For resistance measurements, ensure the circuit is completely de-energized before connecting probes to prevent false readings and internal component damage. The automatic range selection feature will adjust the display scale automatically, but you can manually select specific ranges by rotating the dial to fixed range positions for precise measurement control. Always verify the selected range matches your expected measurement value before taking readings, and disconnect the test leads immediately after completing measurements to preserve battery life.
Frequently Asked Questions
What is the difference between True RMS and average RMS measurement in the HT118A?
True RMS technology measures the actual root mean square value of AC waveforms regardless of their shape, providing accurate readings on distorted or non-sinusoidal signals like those from variable frequency drives and switching power supplies. Average RMS meters assume sinusoidal waveforms and calculate readings based on peak voltage, producing significant errors when measuring non-linear loads. The HT118A uses True RMS, making it suitable for modern electronic equipment diagnostics where harmonic distortion is common.
Can the HT118A measure both AC and DC current simultaneously?
No, the HT118A measures either AC or DC current, not both simultaneously. You must select the appropriate current measurement mode using the rotary dial before connecting the test leads. This design ensures measurement accuracy and prevents internal circuit confusion. Always verify the correct mode is selected before inserting the meter into a circuit path to avoid incorrect readings.
What precautions should I take when measuring high voltages above 300V?
When measuring voltages above 300V, always use the 600V range setting to ensure adequate safety margin. Keep one hand in your pocket or behind your back to prevent accidental two-hand contact with live circuits. Never touch the metal probe tips while they are connected to energized circuits. Ensure the test leads are in good condition with no exposed wire or damaged insulation. Consider using insulated probe covers for additional safety when working in high-voltage industrial environments.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
