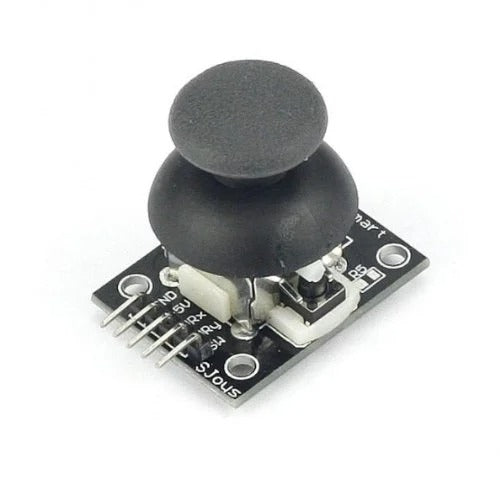

Joystick Module - Dual-Axis Analog Controller for Arduino, ESP32 & Robotics
Navigate your projects with precision using this Dual-Axis Joystick Module from The Tech Depot, Bengaluru. This compact thumb-stick controller outputs analog X and Y axis values along with a digital push-button switch, making it ideal for controlling robots, game consoles, camera gimbals, and menu-driven interfaces. Plug-and-play compatible with Arduino, ESP32, Raspberry Pi, and virtually any microcontroller with ADC inputs. Fast shipping across India with a 7-day warranty on manufacturing defects and dedicated technical support.
Specifications
| Module Type | Dual-Axis Analog Joystick with Push Button |
| Axes | 2 (X-Axis & Y-Axis) - Independent Analog Outputs |
| Output Signal | Analog (0-5 V proportional) on VRx & VRy pins |
| Push Button | Integrated tactile switch (SW pin, active LOW) |
| Operating Voltage | 3.3 V - 5 V DC |
| Resting Output (Center) | ~2.5 V (512 on 10-bit ADC) |
| Potentiometer Value | 10 KOhm per axis |
| Interface Pins | GND, +5V, VRx, VRy, SW (5-pin header) |
| Joystick Travel | Full 360 degrees rotation with spring-loaded self-centering |
| PCB Dimensions | ~34 mm x 26 mm (compact breakout board) |
| Mounting | Two M2 mounting holes for secure installation |
| Compatibility | Arduino Uno/Nano/Mega, ESP32, ESP8266, STM32, Raspberry Pi (with ADC), PIC, MSP430 |
| Connector Type | Standard 2.54 mm pin header (breadboard-friendly) |
| Operating Temperature | -20 degreesC to +70 degreesC |
| Origin | Original / Authentic Component |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp - 24/7 Technical Assistance |
Key Features
- Dual-Axis Precision Control: Two independent 10 KOhm potentiometers deliver smooth, proportional analog signals for X and Y movement - perfect for fine-grained directional control.
- Integrated Push Button (Z-Axis): Built-in tactile switch activated by pressing the joystick knob down, adding a third input channel for selection, confirmation, or mode toggling.
- Spring-Loaded Self-Centering: Automatically returns to the neutral center position when released, ensuring consistent and predictable behavior in control applications.
- Wide Voltage Compatibility: Operates reliably at both 3.3 V and 5 V logic levels, making it natively compatible with Arduino, ESP32, STM32, and other popular platforms without level shifting.
- Breadboard & Perfboard Friendly: Standard 2.54 mm pitch pin header plugs directly into breadboards or connects easily with Dupont jumper wires - zero soldering required for prototyping.
- Compact Breakout Design: Small PCB footprint with clearly labeled pins (GND, +5V, VRx, VRy, SW) simplifies wiring and integration into enclosures or chassis.
- Comfortable Thumb-Stick Cap: Ergonomic knob provides a comfortable grip for extended use in gaming controllers, RC transmitters, and assistive devices.
Why Choose This Joystick Module?
- 100% Authentic: Sourced directly from trusted, authorized component distributors - no clones or counterfeits.
- Beginner-Friendly: Extensive code examples and tutorials available for Arduino IDE - get analog readings in under 5 minutes.
- Versatile Input Device: Replaces complex button arrays with a single intuitive controller for robots, menus, games, and pan-tilt systems.
- Reliable & Durable: High-cycle potentiometers and robust tactile switch rated for thousands of operations.
- Fast Shipping from Bengaluru: 1-5 day shipping, 7-8 day delivery across India; same-day dispatch available in Bengaluru.
- Expert Technical Support: Dedicated engineering support via email and WhatsApp to help with wiring, code, and project integration.
Pin Configuration & Wiring Guide
| Module Pin | Function |
