IRF520 MOSFET Driver Module for Arduino ARM Raspberry pi
IRF520 MOSFET Driver Module for Arduino ARM Raspberry pi
Shipping calculated at checkout.
Quality electronics from Tech Depot India, Bengaluru.
Specifications
| Feature | Details |
| Type | MOSFET Driver Module |
| Compatible Platforms | Arduino, ARM, Raspberry Pi |
| Main Component | IRF520 N-Channel MOSFET |
| Input Voltage | 3.3V - 5V (Logic Level) |
| Output Voltage | Up to 24V DC |
| Maximum Current | 9.2A (Continuous) |
| Peak Current | 24A (Pulse) |
| Gate Resistance | 1.35Ohm |
| Operating Temperature | -55 degreesC to +175 degreesC |

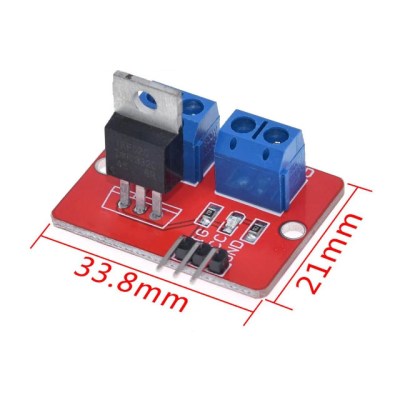

| PCB Size | ~30 x 20 mm |
| Origin | Original/Authentic |
| Parameter | Value |
| Input Logic Levels | TTL/CMOS Compatible |
| Input Current | ~10mA |
| Switching Frequency | Up to 100 kHz |
| Gate Charge | 41 nC |
| Rise/Fall Time | ~20 ns |
| On-State Resistance (RDS) | 0.27Ohm @ 25 degreesC |
| Isolation | Optoisolated option available |
| Protection | Built-in flywheel diode |
- Type: MOSFET Driver Module
- Compatible Platforms: Arduino, ARM, Raspberry Pi
- Main Component: IRF520 N-Channel MOSFET
- Input Voltage: 3.3V - 5V (Logic Level)
- Output Voltage: Up to 24V DC
- Maximum Current: 9.2A (Continuous)
- Peak Current: 24A (Pulse)
- Gate Resistance: 1.35Ohm
- Operating Temperature: -55 degreesC to +175 degreesC
- PCB Size: ~30 x 20 mm
Why Choose IRF520 MOSFET Driver Module for Arduino ARM Raspberry pi?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of IRF520 MOSFET Driver Module for Arduino ARM Raspberry pi
Wide Voltage Compatibility - Works with 3.3V and 5V logic levels
High Current Capacity - Handles up to 9.2A continuous current
Fast Switching - Ideal for PWM and high-frequency applications
Compact Design - Small footprint for space-constrained projects
Heat Resistant - Reliable performance across temperature ranges
Easy Integration - Simple pin connections (IN, OUT, GND)
Perfect For
- DC motor speed control
- LED brightness adjustment
- Relay switching modules
- Custom automation projects
How to Use
Product Description
The IRF520 MOSFET Driver Module is a compact, high-performance switching module designed to control high-power devices using low-voltage microcontroller signals. It acts as an interface between your Arduino, Raspberry Pi, or ARM board and high-power loads like motors, heaters, and LED arrays.
DIY Electronics & Hobbyist Projects
- DC motor speed control
- LED brightness adjustment
- Relay switching modules
- Custom automation projects
Professional & Industrial Applications
- Industrial equipment control
- Automated machinery
- Power distribution systems
- Commercial lighting control
Learning & Education
- Microcontroller training
- Electronics prototyping
- IoT project development
- Embedded systems learning
What's Included in the Box
1x IRF520 MOSFET Driver Module
Quick Start Guide & Pinout Diagram
Technical DatasheetSupport Contact Information
Pin Configuration
- IN - Input signal from microcontroller (3.3V/5V)
- OUT - Output to load (up to 24V)
- GND - Ground (common reference)
Basic Connection
Arduino Pin -> IN (Module) Arduino GND -> GND (Module) Module OUT -> Load (+) Load (-) -> Power Supply GNDFrequently Asked Questions
Is this 100% authentic?
Yes, absolutely. Each unit comes with proper documentation and manufacturer credentials.
Do you provide technical support?
Yes! Our expert team provides free technical support via email and WhatsApp reliable. We help with circuit design, troubleshooting, and project implementation.
Can I use this with Raspberry Pi?
Yes! The IRF520 works perfectly with Raspberry Pi GPIO pins (3.3V logic). Simply connect the input pin to any GPIO pin and control via Python or other languages.
What loads can I control?
You can control DC motors, solenoids, heaters, LED arrays, and other inductive/resistive loads up
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your IRF520 MOSFET Driver Module for Arduino ARM Raspberry pi today and start building your next project.
