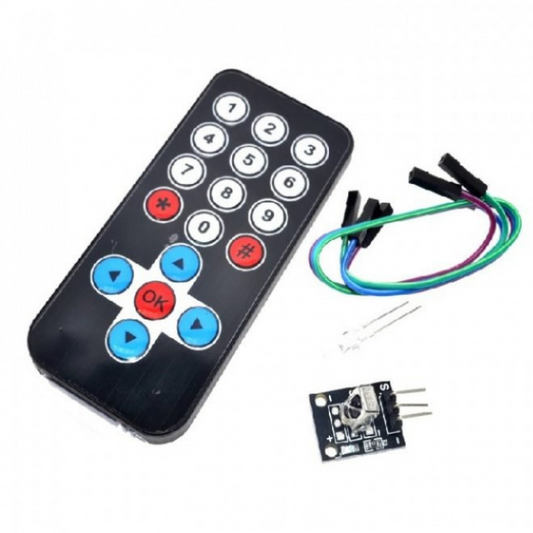

Infrared IR Wireless Remote Control Module Kit for Arduino
Infrared IR Wireless Remote Control Module Kit for Arduino
Shipping calculated at checkout.
Add wireless infrared control to your Arduino projects with this complete IR Remote Control Module Kit. Featuring a compact IR receiver module and a multi-button remote control, this kit enables you to wirelessly control LEDs, motors, servos, relays, and countless other devices. Ideal for home automation, robotics, and embedded systems - simply decode the IR signals using popular Arduino libraries and bring remote-controlled functionality to any project. Premium electronics from Tech Depot India, Bengaluru.
Specifications
| Kit Contents | IR Receiver Module + IR Remote Control |
| IR Receiver Chip | VS1838B / HX1838 (38 kHz) |
| Carrier Frequency | 38 kHz |
| Receiver Operating Voltage | 2.7V - 5.5V DC |
| Remote Battery | CR2025 Coin Cell (included) |
| Remote Buttons | 17-21 keys (numeric, directional, function) |
| Effective Range | Up to 8 metres (line of sight) |
| Receiving Angle | +/-45 degrees |
| Interface | 3-pin header - Signal, VCC, GND |
| Compatible Platforms | Arduino UNO, Mega, Nano, ESP32, ESP8266, Raspberry Pi |
| Recommended Library | IRremote / IRLib2 (Arduino IDE) |
| Protocol Support | NEC protocol (standard) |
| Module Dimensions | Approx. 18 x 13 x 10 mm (receiver) |
| Type | Electronics Component / Sensor Module Kit |
| Origin | Original / Authentic |
- Kit Contents: IR Receiver Module + IR Remote Control
- IR Receiver Chip: VS1838B / HX1838 (38 kHz)
- Carrier Frequency: 38 kHz
- Receiver Operating Voltage: 2.7V - 5.5V DC
- Remote Battery: CR2025 Coin Cell (included)
- Remote Buttons: 17-21 keys (numeric, directional, function)
Why Choose Infrared IR Wireless Remote Control Module Kit for Arduino?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Infrared IR Wireless Remote Control Module Kit for Arduino
- Complete Ready-to-Use Kit: Includes both the IR receiver module and a handheld remote control - no additional components needed to get started.
- 38 kHz Demodulated Output: The VS1838B receiver demodulates the incoming IR signal, delivering clean digital output directly readable by any microcontroller.
- Wide Operating Voltage: Functions reliably from 2.7V to 5.5V, making it compatible with both 3.3V and 5V logic-level boards.
- Plug-and-Play 3-Pin Interface: Simple Signal-VCC-GND connection requires no external pull-up resistors or additional circuitry.
- Multi-Button Remote: 17-21 tactile buttons including numeric keys (0-9), directional arrows, OK/Enter, and function keys for versatile control options.
- Up to 8-Metre Range: Reliable wireless communication across a room with clear line-of-sight transmission.
- NEC Protocol Standard: Uses the widely supported NEC IR protocol, easily decoded with the popular IRremote Arduino library.
- Breadboard Friendly: Pin headers fit standard breadboards and prototyping setups for rapid development.
- Low Power Consumption: Minimal current draw on the receiver; remote operates on a long-lasting CR2025 coin cell battery.
- Universal Compatibility: Works seamlessly with Arduino UNO, Mega, Nano, ESP32, ESP8266, STM32, Raspberry Pi, and other popular development boards.
- Extensively tested and verified for reliable performance with Arduino IDE
- Affordable, beginner-friendly kit that scales into advanced projects
Perfect For
- IR Remote-Controlled LED System: Toggle individual LEDs or LED strips on/off, change colours, and adjust brightness using different remote buttons.
- Home Automation Controller: Control fans, lights, and appliances through relay modules triggered by specific IR commands from the remote.
- Remote-Controlled Robot Car: Use directional arrow keys to drive a robot forward, backward, left, and right - a classic robotics starter project.
- IR-Based Security System: Arm and disarm a security alarm or door lock using a secret button combination on the remote.
- Custom TV/AC Remote Cloner: Capture and replay IR signals from household remotes to build a universal remote control system.
- Wireless Motor Speed Controller: Map numeric keys to different PWM duty cycles to control DC motor or servo speed wirelessly.
- Interactive Learning Tool: Teach students about wireless communication, signal encoding/decoding, and protocol analysis in an engaging hands-on way.
- Music & Sound Trigger:
