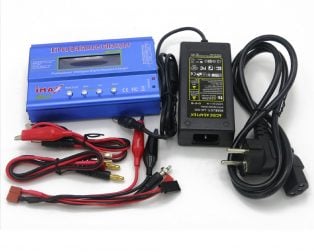

IMAX B6 80W 6A Charger/Discharger 1-6 Cells + DC 5A 12V 60W ADAPTER AC(Copy)
IMAX B6 80W 6A Charger/Discharger 1-6 Cells + DC 5A 12V 60W ADAPTER AC(Copy)
IMAX B6 80W 6A Charger/Discharger 1-6 Cells + DC 5A 12V 60W ADAPTER AC(Copy)
The IMAX B6 is a professional-grade intelligent battery charger and discharger designed for LiPo, LiFe, NiMH, NiCd, and Pb battery packs ranging from 1 to 6 cells. This dual-function device is extensively used by RC hobbyists, drone pilots, and electronics professionals who require precision charging with advanced safety features and real-time battery monitoring. It solves the critical problem of overcharging, over-discharging, and cell imbalance by providing microprocessor-controlled charging algorithms with individual cell balancing capabilities.
Product Overview
The IMAX B6 operates on a sophisticated constant-current constant-voltage (CC-CV) charging methodology with integrated cell balancing circuitry that monitors and equalizes voltage across individual battery cells during the charging cycle. The charger features a dual-display LCD screen showing real-time parameters including charging current, voltage, capacity in mAh, charging time, and individual cell voltages. The microprocessor intelligently detects battery type automatically and adjusts charging profiles accordingly, eliminating the risk of incorrect parameter selection that could damage expensive battery packs.
This model stands out through its dual-channel capability, allowing simultaneous charging and discharging operations on separate channels, and its comprehensive discharge function that enables battery capacity testing and conditioning cycles. The 80W power output with 6A maximum charging current provides rapid charging for multi-cell battery packs while maintaining thermal stability. The included DC 5A 12V 60W adapter AC ensures reliable power delivery with built-in protection against voltage fluctuations, making it suitable for both laboratory environments and field applications.
Key Specifications
| Specification | Details |
| Product Type | Intelligent Battery Charger/Discharger |
| Brand | IMAX |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Input Voltage | DC 12V 5A via AC adapter |
| Output Power | 80W maximum |
| Maximum Charging Current | 6A per channel |
| Battery Cell Range | 1-6 cells |
| Supported Battery Types | LiPo, LiFe, NiMH, NiCd, Pb |
| Display | LCD screen with dual-channel monitoring |
| Adapter Specifications | DC 5A 12V 60W AC adapter included |
Key Features
- Dual-Channel Operation: Simultaneously charge one battery pack while discharging another, doubling productivity for battery maintenance workflows
- Automatic Battery Type Detection: Microprocessor identifies LiPo, LiFe, NiMH, NiCd, and Pb batteries automatically, preventing user configuration errors that could damage cells
- Cell Balancing Technology: Individual cell voltage monitoring and active balancing ensures uniform voltage distribution across multi-cell packs, extending battery lifespan by up to 40 percent
- Real-Time LCD Display: Dual-screen monitoring shows charging current, voltage, mAh capacity, time elapsed, and individual cell voltages for complete transparency during charging cycles
- Discharge and Conditioning Function: Enables battery capacity testing, discharge cycles, and storage conditioning to maintain optimal battery health and performance
- Compact Design: Lightweight and portable form factor suitable for workshop, field, and laboratory applications
- Thermal Protection: Built-in temperature monitoring and automatic shutdown prevents overheating during extended charging sessions
- Included AC Adapter: DC 5A 12V 60W power adapter with voltage regulation ensures stable operation across varying mains conditions
Applications and Use Cases
- RC Aircraft and Drone Operations: Charge and balance LiPo battery packs used in quadcopters, fixed-wing drones, and RC helicopters with precision cell balancing to ensure consistent flight performance and safety
- Electric Vehicle Maintenance: Condition and test NiMH and LiFe battery packs in electric scooters, electric skateboards, and RC cars with discharge testing to verify actual capacity before field use
- Hobby Electronics and Robotics: Support development and testing of multi-cell battery systems in robot projects, sensor networks, and portable electronics with real-time voltage monitoring
- Professional Battery Testing Labs: Perform capacity verification, cycle testing, and storage conditioning on various battery chemistries with dual-channel simultaneous operations for efficiency
- Renewable Energy Systems: Maintain and balance battery banks in solar power systems and off-grid installations with individual cell monitoring to prevent imbalance-related failures
- Educational Institutions: Teach battery chemistry, charging algorithms, and power electronics with hands-on experience using professional-grade equipment in engineering labs
How to Use
Begin by connecting the included DC 5A 12V 60W AC adapter to the charger's power input port and verify the LCD display illuminates. Select your desired operation mode using the menu buttons: charging, discharging, or storage conditioning. Insert the battery pack connector into the appropriate channel port, ensuring correct polarity alignment. The microprocessor will automatically detect battery type and cell count within 2-3 seconds. Review the detected parameters on the LCD screen and adjust charging current if necessary using the increment/decrement buttons. The recommended charging current is 1C (1 times the battery capacity in Ah), for example 2A for a 2000mAh pack. Press the start button to initiate the charging cycle. The charger will display real-time voltage, current, capacity, and individual cell voltages throughout the process.
During charging, monitor the LCD display for any warning indicators or cell imbalance alerts. The charger will automatically terminate charging when all cells reach the target voltage and current drops below threshold levels, typically indicated by a completion beep. For discharge operations, follow the same connection procedure but select discharge mode and set the discharge current to 0.5C to 1C depending on battery chemistry. After completing charge or discharge cycles, allow the battery pack to rest for 15-20 minutes before use to stabilize cell voltages. For storage conditioning, select the storage mode which will charge the pack to approximately 50 percent capacity, ideal for long-term battery preservation.
Frequently Asked Questions
What is the difference between charging and discharging modes on the IMAX B6?
Charging mode uses constant-current constant-voltage methodology to replenish battery energy while monitoring individual cell voltages for balancing. Discharging mode safely removes energy from the battery at controlled rates, useful for capacity testing to verify actual mAh capacity, conditioning tired batteries, or preparing packs for long-term storage. The discharge function prevents over-voltage conditions that can occur when charged packs sit unused for extended periods.
Can the IMAX B6 charge different battery types simultaneously on both channels?
Yes, the dual-channel design allows simultaneous charging of different battery types on each channel. The microprocessor independently detects and manages each channel, applying appropriate charging profiles for LiPo, LiFe, NiMH, NiCd, or Pb batteries on separate channels. However, ensure each channel has its own dedicated battery connector and never cross-connect different battery types on the same channel.
What does cell balancing do and why is it important?
Cell balancing actively monitors voltage across individual cells in multi-cell battery packs and shunts charge between cells to equalize voltages during charging. This prevents cell over-voltage which degrades battery lifespan and creates safety hazards. Unbalanced cells can fail prematurely, reducing overall pack capacity by 20-30 percent. The IMAX B6's active balancing extends battery life significantly and maintains consistent performance across charge cycles.
What is the correct charging current setting for my battery pack?
The recommended charging current is 1C, meaning 1 times the battery capacity in Amps. For a 2000mAh (2Ah) battery, use 2A charging current. For a 5000mAh (5Ah) battery, use 5A charging current. The IMAX B6 supports up to 6A maximum. Lower currents like 0.5C provide slower but gentler charging, extending battery lifespan. Never exceed 6A total output current or the charger will limit charging automatically.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
