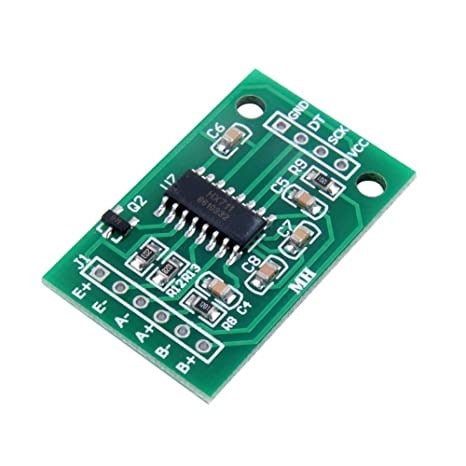

HX711 weighing sensor module
HX711 weighing sensor module
Shipping calculated at checkout.
Looking to buy HX711 weighing sensor module at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
Build accurate digital weighing systems with the HX711 24-bit ADC module from Tech Depot India, Bengaluru. This precision analog-to-digital converter is purpose-built for interfacing load cells with microcontrollers like Arduino and ESP32, delivering stable, high-resolution weight measurements.
Specifications
| IC | HX711 24-Bit Precision ADC |
| Input Channels | 2 differential input channels (Channel A & Channel B) |
| Channel A Gain | Selectable 128 or 64 |
| Channel B Gain | Fixed 32 |
| ADC Resolution | 24-bit (16,777,216 levels) |
| Output Data Rate | 10 SPS or 80 SPS (selectable) |
| Operating Voltage | 2.6V - 5.5V DC |
| Operating Current | < 1.5 mA (typical) |
| Interface | 2-wire serial (CLK & DOUT) - no SPI/I2C needed |
| Compatible Load Cells | Wheatstone bridge type (1 kg, 5 kg, 10 kg, 20 kg, 50 kg, etc.) |
| On-Board Regulator | Built-in voltage regulator for load cell excitation |
| Board Dimensions | ~33 mm x 20 mm |
| Microcontroller Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, STM32, PIC |
| Type | Weighing / Force Measurement ADC Module |
| Origin | Original/Authentic |
Why Choose HX711 weighing sensor module?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of HX711 weighing sensor module
- 24-Bit High Resolution: Captures extremely small weight changes, enabling gram-level and sub-gram accuracy depending on load cell quality.
- Selectable Gain (128/64/32): Channel A supports 128x or 64x gain for full-scale differential inputs of +/-20 mV or +/-40 mV; Channel B at 32x gain handles larger signals.
- Simple 2-Wire Digital Interface: Only two GPIO pins (DOUT and SCK) required - no SPI or I2C bus needed, freeing up communication peripherals.
- On-Board Voltage Regulator: Provides stable, low-noise excitation voltage to the load cell directly from the module, eliminating external regulator requirements.
- Low Power Consumption: Draws under 1.5 mA during operation with an automatic power-down mode when inactive, ideal for battery-powered projects.
- Integrated On-Chip Oscillator: No external crystal or clock source needed, reducing component count and PCB complexity.
- Wide Supply Voltage Range: Operates from 2.6V to 5.5V, making it compatible with both 3.3V and 5V logic microcontrollers.
- Simultaneous 50 Hz & 60 Hz Rejection: Built-in digital filtering suppresses power line noise for clean readings in any region.
- Breakout Header Pins: Pre-labeled E+, E, A+, A, B+, B pads for quick and reliable load cell wiring.
- 100% authentic HX711 IC from trusted suppliers - no counterfeit clones
- Proven reliability across thousands of hobbyist and commercial weighing projects
How It Works
The HX711 module acts as a bridge between an analog load cell and a digital microcontroller. A load cell is essentially a Wheatstone bridge of strain gauges that produces a tiny millivolt-level voltage proportional to the applied weight. The HX711 amplifies this minuscule signal using its programmable gain amplifier (PGA), then converts it to a 24-bit digital value using its internal sigma-delta ADC. Your microcontroller reads this digital value through a simple two-wire clock-and-data protocol. After calibration with a known weight, the raw ADC values are mapped to real-world weight units (grams, kilograms) in software.
Wiring Guide (Arduino Example)
| HX711 Pin | Arduino Pin |
| VCC | 5V |
| GND | GND |
| DOUT (DT) | Digital Pin 3 |
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your HX711 weighing sensor module today and start building your next project.
