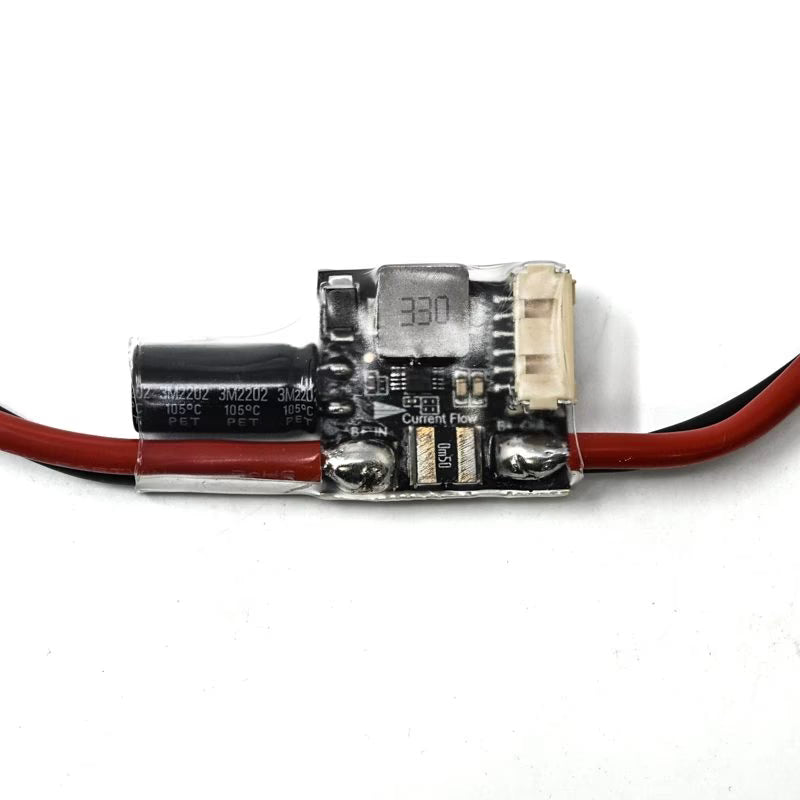

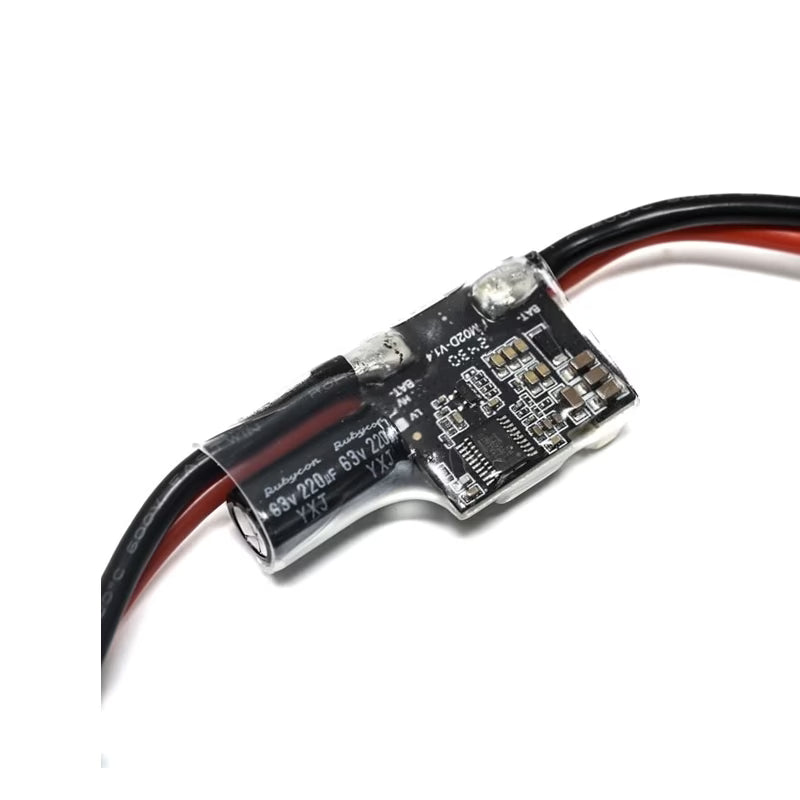

The Holybro PM02D Power Module High Voltage (2S–12S) is a precision power monitoring and regulation module designed for advanced UAV and robotics systems. Used by drone developers, autonomous vehicle engineers, and aerospace professionals, it provides accurate voltage and current sensing along with regulated power output for flight controllers. It solves critical power management challenges by enabling real-time telemetry and stable voltage supply even in high-voltage battery setups.
Product Overview
The PM02D power module is engineered to handle a wide input voltage range from 2S to 12S LiPo batteries, making it suitable for both small drones and large industrial UAV platforms. It integrates a high-precision current sensor and voltage divider circuitry that feeds real-time power data to compatible flight controllers such as Pixhawk. This allows accurate monitoring of battery health, consumption, and remaining capacity during flight operations.
In addition to sensing, the module features a built-in DC-DC switching regulator that provides a stable 5.3V output to power flight controllers and peripherals. Its efficient power conversion design minimizes heat generation and ensures consistent performance under high load conditions. The module is designed with high-quality components and connectors to maintain reliability in demanding environments.
Key Specifications
| Specification | Details |
| Product Type | Power Monitoring Module with BEC |
| Brand | Holybro |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Input Voltage | 2S – 12S LiPo (Up to ~50V) |
| Output Voltage | 5.3V Regulated |
| Max Current Sensing | Up to 90A (continuous) |
| Connector Type | XT60 Input/Output |
| Telemetry Interface | Analog Voltage & Current Output |
| Compatibility | Pixhawk and compatible flight controllers |
Key Features
- Wide input voltage range (2S–12S) supports both low and high-voltage UAV systems
- High-precision current and voltage sensing enables accurate battery monitoring and failsafe triggering
- Integrated 5.3V switching regulator provides stable power to flight controllers and onboard electronics
- Robust XT60 connectors ensure secure high-current connections with minimal resistance losses
Applications and Use Cases
- Industrial UAVs and long-endurance drones requiring high-voltage battery monitoring
- Autonomous systems using Pixhawk for telemetry-based power management
- Aerial mapping and surveying drones where accurate battery data is critical
- Advanced robotics platforms with high current draw and regulated power requirements
How to Use
Connect the PM02D module inline between your LiPo battery and the power distribution system using the XT60 connectors. Ensure correct polarity and secure connections to prevent power interruptions. The module outputs regulated 5.3V power and analog voltage/current signals, which should be connected to the power input and ADC pins of your flight controller.
Configure your flight controller (e.g., Pixhawk with ArduPilot) to read the voltage and current values using the appropriate calibration parameters. This ensures accurate telemetry data for battery monitoring and failsafe settings. Always test the system on the ground before flight to verify correct readings and stable output.
Frequently Asked Questions
Can this module handle 12S LiPo batteries safely?
Yes, the PM02D is specifically designed for high-voltage applications and supports up to 12S LiPo input, making it suitable for industrial UAVs.
Is this compatible with Pixhawk flight controllers?
Yes, it is fully compatible with Pixhawk and other flight controllers that support analog voltage and current sensing inputs.
Does it provide power to the flight controller?
Yes, the integrated 5.3V regulator powers the flight controller directly, eliminating the need for an external BEC in most setups.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
