HMC5883L Digital Electronic Compass
HMC5883L Digital Electronic Compass

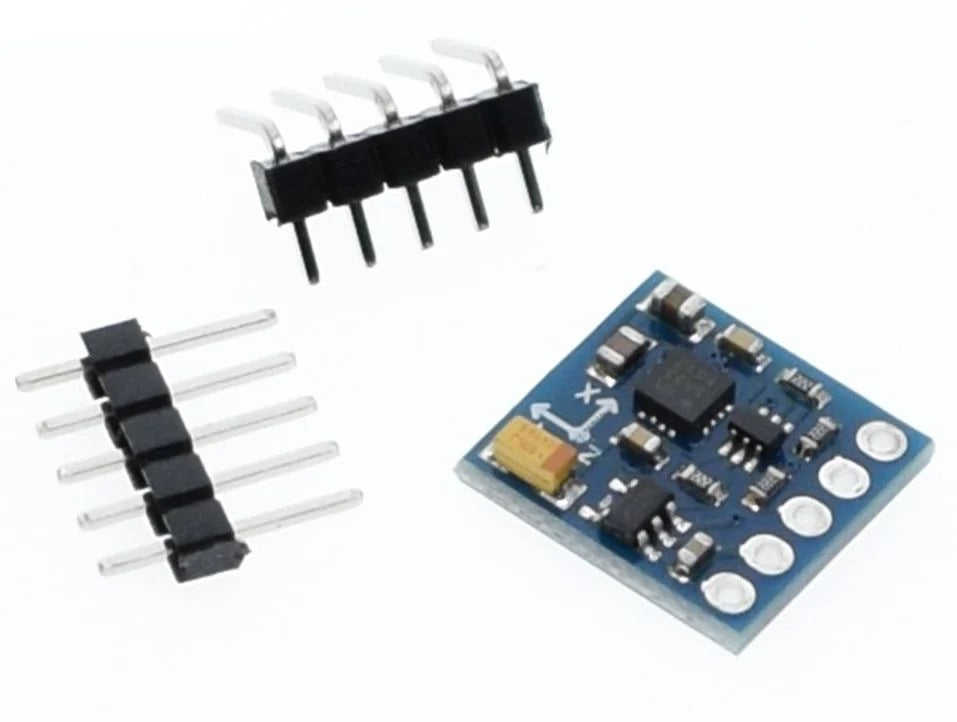

HMC5883L Digital Electronic Compass Module
Navigate your projects with precision using the HMC5883L 3-axis digital magnetometer module from The Tech Depot, Bengaluru. This compact compass sensor delivers accurate heading detection with I2C communication, making it ideal for robotics, drones, GPS navigation systems, and orientation-aware IoT devices. Fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Sensor IC | Honeywell HMC5883L 3-Axis Digital Magnetometer |
| Measurement Range | +/-1.3 to +/-8.1 Gauss (configurable) |
| Resolution | Up to 5 milli-Gauss (12-bit ADC) |
| Heading Accuracy | 1 degrees to 2 degrees typical |
| Communication Interface | I2C (address 0x1E) |
| Operating Voltage | 3.3V - 5V (onboard voltage regulator) |
| Output Data Rate | 0.75 Hz to 75 Hz (configurable) |
| Current Consumption | ~2 mA during measurement |
| Axes | 3-axis (X, Y, Z) magnetic field sensing |
| Board Dimensions | Approx. 14 mm x 15 mm (compact breakout) |
| Mounting | Standard 2.54 mm pitch header pins |
| Operating Temperature | -30 degreesC to +85 degreesC |
| Type | Magnetometer / Digital Compass Sensor Module |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and all I2C-capable microcontrollers |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- True 3-Axis Magnetometer: Measures Earth's magnetic field across X, Y, and Z axes for full 360 degrees compass heading calculation
- High Precision: 12-bit ADC with up to 5 milli-Gauss resolution delivers heading accuracy within 1 degrees-2 degrees under ideal conditions
- Simple I2C Interface: Only requires SDA and SCL connections - just two data wires to your microcontroller
- Wide Voltage Compatibility: Onboard regulator accepts 3.3V to 5V, making it plug-and-play with both 3.3V and 5V logic boards
- Low Power Consumption: Draws approximately 2 mA during active measurement, ideal for battery-powered and portable applications
- Configurable Data Rate: Choose output rates from 0.75 Hz to 75 Hz depending on your application's speed requirements
- Selectable Gain: Eight gain settings allow you to optimize sensitivity for different magnetic field environments
- Built-in Self-Test: Internal self-test feature enables you to verify sensor functionality during initialization
- Compact Form Factor: Tiny breakout board fits easily into drones, robots, wearables, and space-constrained enclosures
- Extensive Library Support: Works seamlessly with popular Arduino libraries (Adafruit HMC5883, QMC5883LCompass) and Python libraries for Raspberry Pi
Why Choose the HMC5883L from The Tech Depot?
- 100% authentic Honeywell HMC5883L sensor IC sourced from trusted, authorized distributors
- 1-5 day shipping, 7-8 day delivery across India from our Bengaluru warehouse; same-day delivery within Bengaluru
- Expert technical support included - get help with wiring, calibration, code, and integration
- Tested and quality-checked before dispatch to ensure reliable out-of-the-box performance
- Trusted by thousands of engineers, students, and makers across India
How It Works
The HMC5883L module contains three magneto-resistive sensors aligned along the X, Y, and Z axes. These sensors detect the strength and direction of the surrounding magnetic field, including Earth's magnetic field. The onboard 12-bit analog-to-digital converter digitizes the readings and makes them available over the I2C bus. Your microcontroller reads the raw magnetic field values from the sensor's registers and then calculates the compass heading using the arctangent function: heading = atan2(Y, Z). With proper calibration to compensate for local magnetic interference (hard-iron and soft-iron distortion), the module delivers reliable directional data for navigation and orientation applications.
Pin Configuration
| Pin | Label | Function |
| 1 | VCC | Power supply input (3.3V - 5V) |
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy HMC5883L Digital Electronic Compass Online in India
Purchase the HMC5883L Digital Electronic Compass online at The Tech Depot - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on HMC5883L Digital Electronic Compass with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
