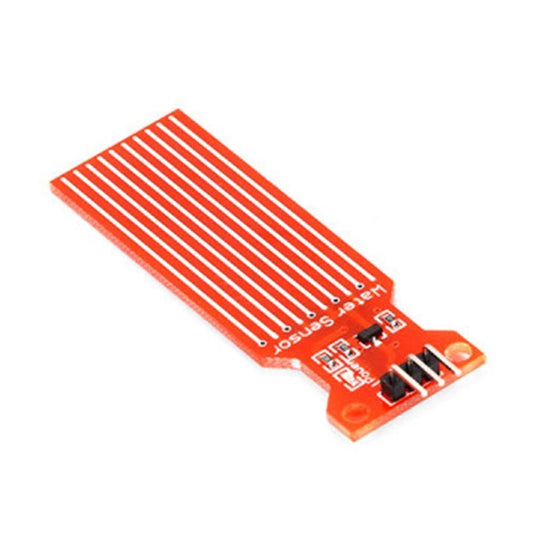

High Sensitivity Water Level Sensor compatible with Arduino
High Sensitivity Water Level Sensor compatible with Arduino
Shipping calculated at checkout.
Detect water presence and measure depth with precision using this high sensitivity water level sensor from Tech Depot India, Bengaluru. Featuring exposed PCB traces that act as a variable resistor, this sensor outputs an analog voltage proportional to water level - making it ideal for flood detection, irrigation monitoring, aquarium automation, and leak alert systems. Plug-and-play compatible with Arduino, ESP32, Raspberry Pi, and most 3.3V/5V microcontrollers.
Specifications
| Sensor Type | Resistive Water Level / Depth Detection Sensor |
| Operating Voltage | 3.3V - 5V DC |
| Output Type | Analog Voltage (proportional to water level) |
| Detection Area | 40mm x 16mm (exposed trace area) |
| Overall PCB Dimensions | Approx. 62mm x 20mm x 8mm |
| Interface | 3-Pin Header - S (Signal), VCC (+), GND () |
| Output Voltage Range | 0V (dry) to ~4.5V (fully submerged at 5V supply) |
| Sensitivity | High - detects as little as 1mm water contact |
| Response Time | < 1 second |
| Operating Current | < 20mA |
| Operating Temperature | 10 degreesC to 30 degreesC (water temperature) |
| Connector Type | Standard 2.54mm pitch header (breadboard & Dupont compatible) |
| Microcontroller Compatibility | Arduino Uno/Nano/Mega, ESP8266, ESP32, STM32, Raspberry Pi (with ADC), PIC |
| ADC Requirement | 10-bit ADC recommended (built into Arduino analog pins) |
| Weight | Approx. 3g |
| Mounting | Single M3 mounting hole on PCB |
| Lifespan Note | Prolonged submersion may cause trace corrosion; intermittent power recommended |
| Origin | Original / Authentic |
- Sensor Type: Resistive Water Level / Depth Detection Sensor
- Operating Voltage: 3.3V - 5V DC
- Output Type: Analog Voltage (proportional to water level)
- Detection Area: 40mm x 16mm (exposed trace area)
- Overall PCB Dimensions: Approx. 62mm x 20mm x 8mm
- Interface: 3-Pin Header - S (Signal), VCC (+), GND ()
Why Choose High Sensitivity Water Level Sensor compatible with Arduino?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of High Sensitivity Water Level Sensor compatible with Arduino
- High Sensitivity Detection: Exposed parallel copper traces detect water contact as shallow as 1mm, providing reliable early-warning capability for leaks and rising water levels.
- Analog Output for Precise Readings: Outputs a continuous analog voltage proportional to the depth of water covering the sensor traces, enabling accurate level measurement - not just on/off detection.
- Wide Voltage Compatibility (3.3V-5V): Works seamlessly with both 3.3V platforms (ESP32, STM32) and 5V platforms (Arduino Uno, Mega) without any level shifting required.
- Simple 3-Pin Interface: Standard S/VCC/GND pinout connects directly to any Arduino analog input pin - no external pull-up resistors, amplifiers, or signal conditioning needed.
- Compact & Lightweight Design: At just 62mm x 20mm and 3g, the sensor fits into tight enclosures, small tanks, and portable weather stations without adding bulk.
- Breadboard & Dupont Friendly: 2.54mm pitch header pins plug directly into breadboards or accept standard Dupont jumper wires for rapid prototyping.
- Fast Response Time: Sub-second response ensures your system reacts immediately to changing water conditions - critical for flood alerts and overflow prevention.
- Low Power Consumption: Draws less than 20mA, making it suitable for battery-powered and solar-powered IoT deployments.
- M3 Mounting Hole: Built-in mounting hole allows secure, vibration-resistant installation inside tanks, sumps, or outdoor enclosures.
- Corrosion Management: Sensor longevity can be significantly extended by powering the sensor only during readings (using a digital GPIO pin to control VCC), reducing electrolysis of the copper traces.
- Plug-and-Play Simplicity: No libraries, drivers, or complex wiring needed - connect three wires, use analogRead(), and you're measuring water level in under five minutes.
- Ideal for Indian Conditions: Perfect for monsoon flood monitoring
Perfect For
- Water-tank and rain-gauge level monitoring on Arduino/ESP32
- Leak detection and flood-warning DIY projects
- Automated pump or valve control triggered by water level
