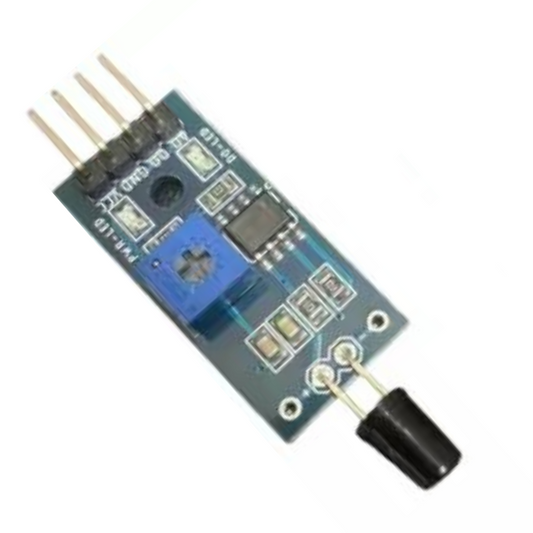

Heat Flame Sensor
Heat Flame Sensor
Heat Flame Sensor
Detect fire, flames, and heat sources with precision using this reliable Heat Flame Sensor from The Tech Depot, Bengaluru. Designed for safety systems, robotics, and automation projects, this sensor responds rapidly to infrared radiation emitted by open flames, providing real-time fire detection for critical applications. Fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support included.
Specifications
| Type | Infrared Flame / Heat Detection Sensor Module |
| Detection Spectrum | 760nm-1100nm (Near-Infrared) |
| Detection Angle | Approximately 60 degrees cone |
| Detection Range | Up to 80-100 cm (open flame) |
| Operating Voltage | 3.3V - 5V DC |
| Output Type | Digital (DO) and Analog (AO) |
| Indicator LEDs | Power LED + Detection Status LED |
| Sensitivity Adjustment | Onboard potentiometer for threshold tuning |
| Comparator Chip | LM393 dual comparator |
| Mounting | Bolt holes for secure installation |
| Module Dimensions | Approximately 36mm x 16mm |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, STM32, PIC |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Dual Output Modes: Digital output for simple flame/no-flame detection and analog output for measuring flame intensity and proximity
- Adjustable Sensitivity: Onboard potentiometer lets you fine-tune the detection threshold to minimize false alarms and match your environment
- Rapid Response Time: Detects flame presence in milliseconds, enabling instant triggering of alarms, sprinklers, or shutdown systems
- Wide Voltage Compatibility: Operates seamlessly at both 3.3V and 5V, making it plug-and-play with virtually any microcontroller platform
- LM393 Comparator: Reliable onboard comparator delivers clean, stable digital output with minimal noise interference
- Visual Status Indicators: Power and detection LEDs provide immediate visual feedback during setup, testing, and operation
- Compact and Mountable: Small form factor with mounting holes allows easy integration into enclosures, robots, and safety panels
- Low Power Consumption: Draws minimal current, ideal for battery-powered and solar-powered safety monitoring systems
Why Choose This Heat Flame Sensor?
- 100% authentic sensor module sourced from trusted and authorized suppliers
- Tested and verified for consistent flame detection performance before dispatch
- 1-5 day shipping, 7-8 day delivery across India from our Bengaluru warehouse
- Expert technical support to help you wire, code, and integrate the sensor into any project
- Comprehensive documentation and sample code resources available
- Trusted by thousands of engineers, students, and makers across India
How It Works
The Heat Flame Sensor uses a specialized infrared (IR) photodiode tuned to the 760nm-1100nm wavelength range - the spectrum where open flames emit strong infrared radiation. When a flame is present within the sensor's detection cone, the IR photodiode registers increased infrared energy. This signal is processed by the onboard LM393 comparator, which compares it against a threshold set via the potentiometer. If the signal exceeds the threshold, the digital output pin goes LOW (active), signaling flame detection. Simultaneously, the analog output provides a proportional voltage reading that reflects flame intensity and distance, allowing for more granular monitoring and data logging.
Pin Configuration
| Pin | Label | Description |
| 1 | VCC | Power supply input (3.3V-5V DC) |
| 2 | GND | Ground connection |
| 3 | DO | Digital output - LOW when flame detected, HIGH when no flame |
| 4 | AO | Analog output - voltage proportional to flame intensity |
Wiring Guide
| Sensor Pin | Arduino Uno Pin | ESP32 Pin |
| VCC | 5V | 3.3V |
| GND | GND | GND |
| DO | D2 (Digital Input) | GPIO4 (Digital Input) |
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
