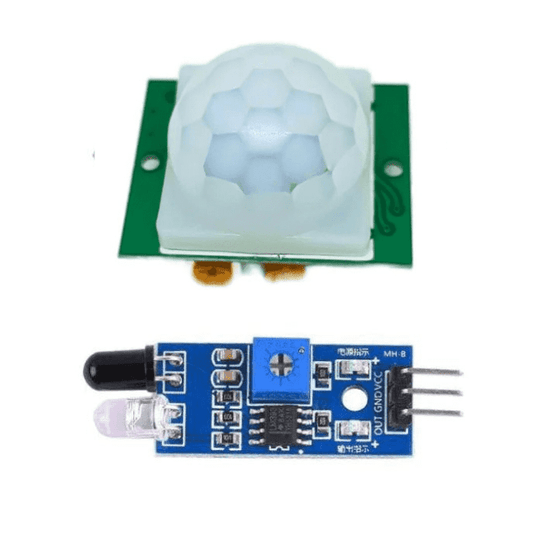

HC-SR501 PIR Sensor + IR Proximity Sensor Combo
Build smarter motion-detection and obstacle-avoidance systems with this essential sensor combo from The Tech Depot, Bengaluru. The HC-SR501 PIR sensor detects human body infrared radiation for security and automation projects, while the IR proximity sensor enables precise short-range object detection. Together, they form the backbone of countless robotics, IoT, and home-automation applications. Fast shipping across India, 7-day warranty on manufacturing defects, and dedicated technical support included.
Specifications
| Combo Contents | 1 x HC-SR501 PIR Sensor + 1 x IR Proximity Sensor Module |
| HC-SR501 PIR Sensor | |
| Operating Voltage | 4.5 V - 20 V DC (typically 5 V) |
| Output Voltage | 3.3 V (HIGH) / 0 V (LOW), TTL compatible |
| Detection Range | Up to 7 meters (adjustable via potentiometer) |
| Detection Angle | < 120 degrees cone |
| Trigger Modes | Single Trigger (L) / Repeatable Trigger (H), jumper selectable |
| Delay Time | 0.3 s - 300 s (adjustable via potentiometer) |
| Sensitivity | Adjustable via on-board potentiometer |
| Quiescent Current | < 50 uA |
| Lock Time | ~2.5 s after power-on |
| Board Dimensions | 32 mm x 24 mm (approx.) |
| IR Proximity Sensor | |
| Operating Voltage | 3.3 V - 5 V DC |
| Output Type | Digital (HIGH / LOW) with adjustable threshold potentiometer |
| Detection Range | 2 cm - 30 cm (adjustable) |
| IR Emitter / Receiver | Matched IR LED + photodiode pair |
| Indicator LEDs | Power LED + Signal LED |
| Comparator IC | LM393 |
| Board Dimensions | 31 mm x 13 mm (approx.) |
| General | |
| Interface | 3-pin header (VCC, GND, OUT) on each module |
| Microcontroller Compatibility | Arduino, Raspberry Pi, ESP32, ESP8266, STM32, PIC, and more |
| Origin | Original / Authentic modules |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Dual-Sensor Combo: Covers both passive infrared (human motion) and active infrared (obstacle/proximity) detection in a single kit
- Adjustable Parameters: On-board potentiometers on both modules let you fine-tune sensitivity, range, and delay without extra components
- Ultra-Low Power PIR: The HC-SR501 draws under 50 uA in standby, making it ideal for battery-powered and always-on security systems
- Dual Trigger Modes: Choose single-trigger or repeatable-trigger mode on the PIR via a simple jumper setting
- LM393 Comparator on IR Module: Delivers clean, noise-free digital output for reliable short-range object detection
- Universal 3.3 V / 5 V Logic: Both sensors work seamlessly with virtually any microcontroller platform-Arduino, Raspberry Pi, ESP32, and beyond
- Plug-and-Play Wiring: Standard 3-pin (VCC, GND, OUT) headers on each module; no external pull-ups or signal conditioning required
- Compact Form Factor: Small PCB footprints fit easily inside enclosures, behind panels, or on robot chassis
- Wide PIR Field of View: 120 degrees detection cone with up to 7 m range covers entire rooms or hallways
- Visual Feedback: On-board LEDs on the IR proximity sensor indicate power and detection status for quick debugging
Why Choose This Combo?
- 100% authentic modules sourced directly from authorized distributors-authentication verified
- Two complementary sensor technologies at one bundled price, saving you time and shipping costs
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse to most of India; same-day delivery within Bengaluru
- Expert technical support included-get wiring diagrams, sample code, and troubleshooting help via email or WhatsApp
- Extensively tested and
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
