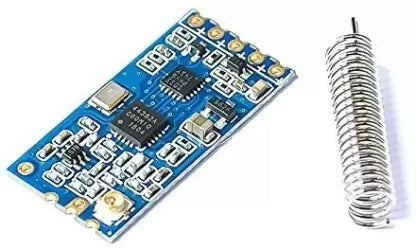

The HC-12 is a long-range wireless transceiver module operating in the 433 MHz frequency band, capable of transmitting data up to 1000 meters in open space with a baud rate of 1200-115200 bps. Electronics engineers, IoT developers, and roboticists use this module for remote control systems, telemetry applications, and wireless sensor networks where WiFi and Bluetooth are impractical. It solves the critical problem of establishing reliable long-distance communication between microcontroller-based systems without requiring internet connectivity or complex network infrastructure.
Product Overview
The HC-12 is a half-duplex wireless transceiver module that utilizes ASK (Amplitude Shift Keying) modulation on the 433 MHz ISM band, a globally unlicensed frequency that makes it ideal for international applications. The module features an on-board SI4463 RF chip that handles modulation, demodulation, and frequency hopping spread spectrum (FHSS) technology, which provides superior interference resistance and better penetration through obstacles compared to standard 433 MHz modules. It communicates with microcontrollers via a simple UART interface, requiring only TX, RX, VCC, and GND connections, making integration straightforward for embedded systems projects.
What distinguishes the HC-12 from conventional RF modules is its intelligent frequency hopping capability and adaptive transmission power control, which can be configured through AT commands to optimize range and power consumption based on specific application requirements. The module operates at 3.3V to 5.5V, drawing minimal current in sleep mode (approximately 0.5mA), and supports multiple channels within the 433 MHz band. Its compact form factor and low cost make it an excellent choice for DIY projects, agricultural monitoring systems, drone telemetry, and industrial IoT applications where long-range wireless communication is essential.
Key Specifications
| Specification | Details |
| Product Type | 433 MHz Wireless Transceiver Module |
| Brand | HC (Generic/Compatible) |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Operating Frequency | 433.05 MHz to 434.79 MHz (ISM Band) |
| Transmission Range | Up to 1000 meters in open space |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| Operating Voltage | 3.3V to 5.5V DC |
| Current Consumption | Transmit: 40-100mA, Receive: 15-20mA, Sleep: 0.5mA |
| Modulation Type | ASK with FHSS (Frequency Hopping Spread Spectrum) |
| Interface | UART (TTL/CMOS compatible) |
| Antenna Type | Ceramic chip antenna (on-board) |
| Dimensions | Approximately 40mm x 16mm x 10mm |
Key Features
- Extended Range Communication: Achieves up to 1000 meters transmission distance in open space using FHSS technology, eliminating the need for external amplifiers in most applications
- Frequency Hopping Capability: Automatically hops across 50 channels within the 433 MHz band to minimize interference and improve signal reliability in congested RF environments
- Low Power Consumption: Sleep mode draws only 0.5mA, making it ideal for battery-powered IoT devices and remote sensor networks requiring extended operational life
- Simple UART Interface: Direct TTL-level serial communication with microcontrollers (Arduino, PIC, ARM) via standard TX/RX pins without additional signal conditioning
- Configurable AT Commands: Allows runtime adjustment of transmission power, baud rate, and channel selection to optimize performance for specific deployment scenarios
- Wide Operating Voltage: Accepts 3.3V to 5.5V input, compatible with both 3.3V and 5V microcontroller platforms without level shifters
Applications and Use Cases
- Agricultural IoT Monitoring: Deploy wireless sensor networks across farms to monitor soil moisture, temperature, and humidity across multiple fields without WiFi infrastructure
- Drone and UAV Telemetry: Establish reliable command and control links between ground stations and unmanned aerial vehicles operating beyond WiFi range
- Industrial Equipment Monitoring: Monitor machinery vibration, temperature, and operational status in factories and plants where wired connections are impractical
- Home Automation and Remote Control: Create wireless control systems for gates, lighting, security systems, and appliances in areas with weak WiFi coverage
- Asset Tracking Systems: Implement GPS-free location tracking for vehicles, equipment, and inventory using signal strength triangulation across multiple HC-12 receivers
- Weather Station Networks: Build distributed weather monitoring systems with multiple sensor nodes transmitting data to a central collection point across large geographic areas
How to Use
To integrate the HC-12 module with your microcontroller, connect the module's VCC pin to your power supply (3.3V to 5.5V), GND to ground, TX pin to your microcontroller's RX pin, and RX pin to your microcontroller's TX pin. If using a 5V microcontroller with a 3.3V HC-12 module, implement a simple voltage divider on the RX line (10K and 20K resistors) to protect the module's input. Initialize serial communication at your desired baud rate (typically 9600 bps for standard applications) and send AT commands to configure the module before normal operation.
To configure the HC-12, enter AT command mode by sending "AT" and waiting for the "OK" response. Use commands like "AT+B9600" to set baud rate, "AT+C001" to select channel, and "AT+P20" to set transmission power level (ranging from 1 to 20 representing -1dBm to 20dBm). Once configured, the module automatically transmits any data received on its RX pin and outputs received data on its TX pin. For optimal range, mount the ceramic antenna vertically away from metal objects, and ensure both transmitter and receiver modules are configured with identical baud rates and channels for reliable bidirectional communication.
Frequently Asked Questions
What is the maximum transmission distance of the HC-12 module?
The HC-12 can achieve up to 1000 meters in open space with line-of-sight conditions and optimal antenna positioning. Actual range varies based on environmental factors including obstacles, terrain, atmospheric conditions, and antenna orientation. In urban environments with buildings and interference, expect practical range of 200-500 meters. Increasing transmission power via AT commands and using external antennas can extend range further.
Can I use HC-12 modules with Arduino and other microcontrollers?
Yes, the HC-12 is fully compatible with Arduino, Raspberry Pi, PIC microcontrollers, and any platform with UART capability. For Arduino, use the SoftwareSerial library to create a serial port on any two digital pins, or use the hardware serial pins (0 and 1) on boards like Arduino Uno. Simply connect TX to RX and RX to TX, ensuring proper voltage levels (use a voltage divider if connecting 5V Arduino to 3.3V HC-12).
What is the difference between HC-12 and other 433 MHz modules like RF69 or SX1276?
The HC-12 uses ASK modulation with FHSS for interference resistance and offers extended range with simple UART interface, making it ideal for beginners and cost-sensitive applications. RF69 modules provide FSK modulation with better noise immunity but require more complex SPI interfacing. SX1276 (LoRa) offers superior range and low power consumption but at higher cost and complexity. Choose HC-12 for simplicity and affordability, RF69 for better noise performance, and LoRa for extreme range requirements.
How do I configure the HC-12 module using AT commands?
Connect the HC-12 to your serial terminal (Arduino IDE Serial Monitor or similar tool) at 9600 baud. Send "AT" and you should receive "OK" response. Then use commands like AT+B (baud rate), AT+C (channel selection), AT+P (power level), AT+FU (mode selection), and AT+RX/AT+TX to configure the module. Each command must be followed by Enter, and changes typically take effect immediately or after module restart.
Is the HC-12 legal to use in India?
The HC-12 operates on the 433 MHz ISM band, which is license-free in India and most countries globally. However, transmission power is limited to 10mW EIRP in some regions. In India, the 433 MHz band is permitted for unlicensed use under WPC regulations. Always verify local regulations in your specific region before deployment, as power limits and frequency allocations may vary.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
