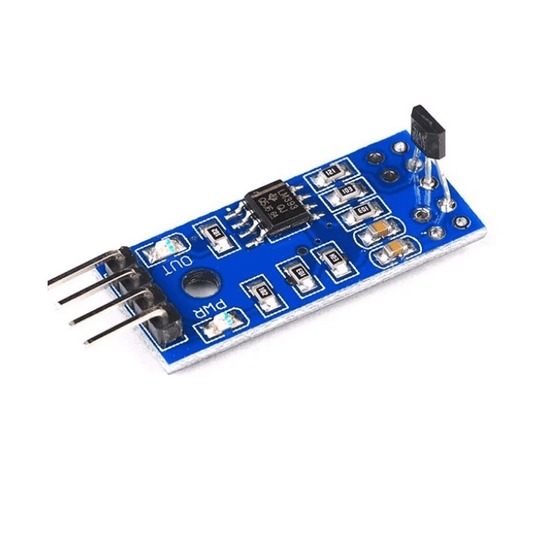

Hall Effect Sensor Module
Hall Effect Sensor Module
Hall Effect Sensor Module
Detect magnetic fields with precision using this compact Hall Effect Sensor Module - ideal for proximity sensing, speed detection, and contactless switching in Arduino, ESP32, and Raspberry Pi projects. Available now from The Tech Depot, Bengaluru, with fast shipping and full technical support.
Specifications
| Sensor Type | Hall Effect (Magnetic Field Detection) |
| Sensor IC | A3144 / 44E (or equivalent digital Hall Effect switch) |
| Operating Voltage | 3.3V - 5V DC |
| Output Type | Digital (HIGH/LOW) with onboard comparator |
| Detection | Responds to south pole of a magnet near the sensor face |
| Onboard LED | Yes - power indicator + signal indicator |
| Sensitivity Adjustment | Potentiometer for threshold tuning (on applicable modules) |
| Output Interface | 3-pin header (VCC, GND, DO) / 4-pin with AO on analog variants |
| Comparator IC | LM393 dual comparator |
| Response Time | < 2 us typical |
| Board Dimensions | Approx. 32 mm x 14 mm |
| Mounting | M3 mounting hole for secure installation |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, STM32, PIC, and other MCUs |
| Origin | Original / Authentic components |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Non-Contact Magnetic Detection: Senses the presence or absence of a magnetic field without physical contact, enabling wear-free, long-life operation.
- Clean Digital Output: Onboard LM393 comparator provides a crisp HIGH/LOW signal - no debouncing or complex analog processing needed.
- Dual LED Indicators: Power LED confirms module is energized; signal LED lights up when a magnetic field is detected for instant visual feedback.
- Wide Voltage Compatibility: Operates reliably at both 3.3V and 5V logic levels, making it plug-and-play with virtually any microcontroller platform.
- Ultra-Fast Response: Microsecond-level switching enables high-speed RPM measurement and real-time position sensing applications.
- Compact & Mountable: Small PCB footprint with an M3 mounting hole allows easy integration into enclosures, motor housings, and mechanical assemblies.
- Sensitivity Tuning: Onboard potentiometer (on applicable variants) lets you fine-tune the detection threshold for different magnet strengths and distances.
How It Works
The Hall Effect Sensor Module operates on the Hall Effect principle: when a magnetic field (specifically the south pole of a magnet) is brought near the sensor IC, it generates a voltage proportional to the field strength. The onboard LM393 comparator converts this analog response into a clean digital output - LOW when a magnet is detected and HIGH when it is absent. Simply connect VCC, GND, and the digital output pin to your microcontroller, and you can instantly read magnetic presence in your code. Attach a small magnet to a rotating shaft, a door, or a moving part, and the module becomes a versatile proximity, speed, or position sensor.
Why Choose This Hall Effect Sensor Module?
- 100% Authentic: Sourced directly from trusted, authorized component suppliers - no clones or counterfeits.
- Beginner-Friendly: Simple 3-pin digital interface requires no external components; connect and start reading in minutes.
- Reliable & Durable: No mechanical contacts mean no wear, no bounce, and virtually unlimited switching cycles.
- Versatile Detection: Works with neodymium magnets, ferrite magnets, and even electromagnetic coils for diverse applications.
- 1-5 days shipping: Ships from our Bengaluru warehouse to most locations across India; same-day delivery available in Bengaluru.
- Expert Technical Support: Our engineering team is available 24/7 via email and WhatsApp to help with wiring, code, and integration.
Project Ideas
- RPM / Speed Measurement: Mount a magnet on a motor shaft or wheel spoke and count pulses per revolution to calculate RPM - perfect for tachometers, fan speed monitors, and vehicle speedometers.
- Door / Window Security Alarm: Attach a magnet to the door and the sensor to the frame; trigger an alert or buzzer whenever the door opens and the magnetic field disappears.
- Contactless Proximity Switch: Replace mechanical buttons with a magnet-activated switch for waterproof, dustproof, and tamper-resistant control panels.
- Flow Meter Pulse Counter: Pair with a water or gas flow sensor that uses a magnetic rotor to count flow pulses and
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy Hall Effect Sensor Module Online in India
Purchase the Hall Effect Sensor Module online at The Tech Depot - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on Hall Effect Sensor Module with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy Hall Effect Sensor Module at the best price in India? The Tech Depot offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
