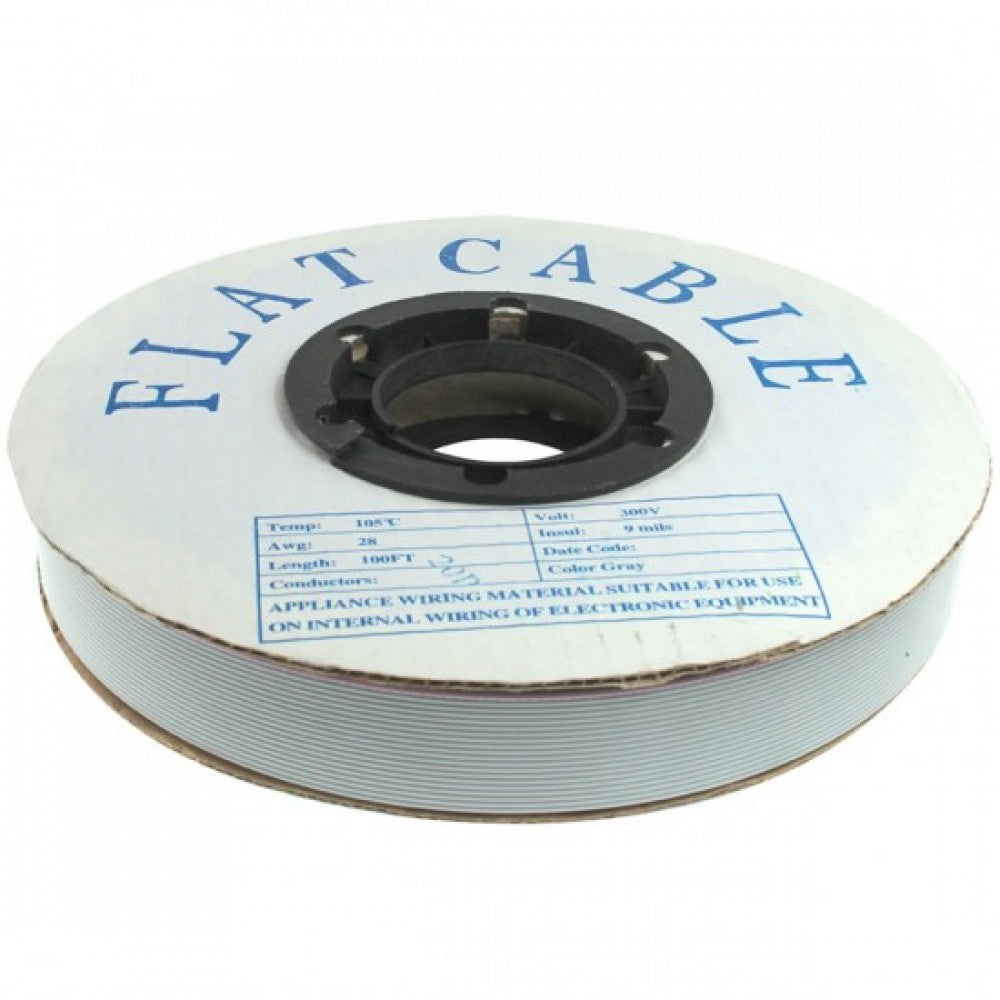

Flat Ribbon Cable 100ft Roll - 26 Pin - 26 conductors - FRC Computer Cable
Flat Ribbon Cable 100ft Roll - 26 Pin - 26 conductors - FRC Computer Cable
Flat Ribbon Cable 100ft Roll - 26 Pin - 26 conductors - FRC Computer Cable
The Flat Ribbon Cable 100ft Roll is a professional-grade FRC (Flat Ribbon Conductor) cable featuring 26 individual conductors, designed for high-density parallel data transmission in computer systems and industrial equipment. This cable is extensively used by electronics engineers, system integrators, and IT professionals who require reliable multi-conductor connectivity for legacy and modern computing applications. It solves the critical challenge of organizing multiple signal lines in compact spaces while maintaining signal integrity and reducing electromagnetic interference across parallel data buses.
Product Overview
Flat ribbon cables operate on the principle of parallel conductor arrangement, where 26 individual copper conductors are laminated together in a flat profile with insulating material. This configuration enables simultaneous transmission of 26 independent signals, making it ideal for parallel communication protocols such as IDE/PATA interfaces, printer connections, and industrial control systems. The flat geometry allows for easy routing through tight spaces, cable management in server racks, and simplified termination using IDC (Insulation Displacement Connector) technology without requiring individual wire stripping.
This 100-foot roll provides exceptional value for large-scale installations, system builds, and industrial projects where multiple connection points are required. The 26-conductor configuration supports legacy computer systems, vintage computing restoration, industrial automation equipment, and custom electronics projects. Superior conductor spacing maintains consistent impedance characteristics, while the durable PVC insulation resists abrasion, moisture, and moderate chemical exposure. The extended length eliminates the need for multiple shorter cables and splices, ensuring cleaner installations and superior signal fidelity across the entire run.
Key Specifications
| Specification | Details |
| Product Type | Flat Ribbon Cable (FRC) - 26 Conductor |
| Cable Length | 100 feet per roll |
| Number of Conductors | 26 individual copper conductors |
| Conductor Gauge | 28 AWG (0.32mm diameter) |
| Conductor Material | Tinned copper for corrosion resistance |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Cable Width | Approximately 2.54 inches (64.5mm) |
| Pitch Between Conductors | 0.10 inches (2.54mm) standard IDC spacing |
| Operating Temperature Range | -20°C to +80°C |
| Voltage Rating | 300V maximum |
| Impedance | 110 ohms nominal for controlled applications |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
Key Features
- 26 Individual Conductors with 0.10-inch IDC spacing for standard connector compatibility with legacy and modern termination systems
- 100-foot continuous roll eliminates splice points and maintains consistent signal integrity across extended cable runs for industrial installations
- Tinned copper conductors provide superior corrosion resistance and enhanced solderability for custom termination and harsh environment applications
- Flat profile design enables efficient cable routing through narrow conduits, server rack channels, and compact equipment enclosures
- PVC insulation rated for 300V operation with -20°C to +80°C temperature range suitable for both indoor and temperature-controlled industrial environments
- Standard 110-ohm impedance characteristics support reliable parallel data transmission for IDE, PATA, and custom parallel bus protocols
Applications and Use Cases
- Legacy Computer Systems: Connecting IDE/PATA hard drives, optical drives, and floppy drives in vintage computers and retro computing restoration projects requiring authentic parallel interface cables
- Industrial Automation: Multi-signal control lines in PLC systems, industrial machinery, and process control equipment where 26 parallel control signals must be transmitted reliably
- Printer and Peripheral Connections: Parallel printer interfaces, scanner connections, and legacy peripheral devices requiring 26-conductor parallel communication protocols
- Custom Electronics Projects: Robotics systems, embedded systems, and experimental electronics requiring flexible multi-conductor parallel buses for sensor arrays and control signal distribution
- Server and Data Center Infrastructure: Internal system interconnections, backplane connections, and legacy server equipment requiring high-density parallel conductor arrangements
- Educational and Laboratory Applications: Electronics training, signal integrity testing, and experimental setups requiring configurable multi-conductor parallel transmission media
How to Use
Begin by measuring the required cable length between your source and destination connectors, accounting for routing path and slack for future adjustments. Cut the ribbon cable to length using a sharp utility knife or cable cutter, ensuring a clean perpendicular cut to prevent conductor fraying. For IDC connector termination, align the cable with the connector's 0.10-inch pitch guides, position it squarely in the connector body, and apply firm downward pressure using the connector's actuator or crimping tool. The insulation displacement technology automatically pierces the PVC insulation and establishes contact with the tinned copper conductors without requiring individual wire stripping.
For soldered terminations, carefully separate individual conductors or small groups using a utility knife, strip approximately 0.25 inches of insulation from each conductor, tin the exposed copper with solder, and attach to your custom connector or PCB pads. Verify continuity using a multimeter across all 26 conductors before powering your system. Route the cable away from high-voltage power lines and sources of electromagnetic interference, securing it with cable clips or ties at regular intervals to prevent flexing stress. For applications requiring shielding, wrap the ribbon cable with conductive foil tape grounded at both ends to minimize EMI coupling into the parallel conductors.
Frequently Asked Questions
What is the difference between 26-conductor and other pin count ribbon cables?
The 26-conductor configuration provides 26 simultaneous parallel signal lines, making it ideal for legacy IDE/PATA interfaces and industrial systems requiring multiple control signals. Other common configurations include 16-conductor (parallel printers), 34-conductor (SCSI), and 40-conductor (IDE). The 26-pin variant is specifically optimized for applications requiring approximately 26 parallel data or control lines with standard 0.10-inch IDC spacing for universal connector compatibility.
Can I use this cable for high-speed data transmission?
The 26-conductor ribbon cable is designed for parallel data transmission at moderate speeds typical of legacy computer systems and industrial applications, supporting data rates up to approximately 5-10 Mbps depending on cable length and termination quality. For modern high-speed applications requiring gigabit speeds, differential signaling, or twisted-pair configurations, specialized twisted-pair or shielded cables are recommended. The flat ribbon design prioritizes ease of routing and multi-conductor density over high-frequency performance.
How do I properly terminate the ribbon cable without damaging the conductors?
For IDC connectors, position the cable squarely with the connector's pitch guides and apply firm, even pressure using the connector's actuator or a specialized crimping tool. Avoid twisting or angling the cable during insertion to prevent conductor displacement. For soldered terminations, use a 25-40 watt soldering iron with rosin-core solder, apply heat for 2-3 seconds per joint, and avoid excessive heat that could melt the PVC insulation. Always test continuity with a multimeter after termination to verify proper conductor contact and identify any shorts between adjacent conductors.
Is this cable suitable for outdoor or harsh environment applications?
The PVC insulation provides basic protection against moisture and moderate chemical exposure, with an operating temperature range of -20°C to +80°C suitable for temperature-controlled indoor and industrial environments. For outdoor, high-temperature, or chemically aggressive applications, consider upgrading to cables with polyimide or fluoropolymer insulation and UV-resistant jackets. For harsh environments, additional shielding, conduit protection, and strain relief are recommended to extend cable lifespan and maintain signal integrity.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
