Finger Print Sensor Module - R307
Finger Print Sensor Module - R307
Shipping calculated at checkout.
Looking to buy Finger Print Sensor Module - R307 at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.

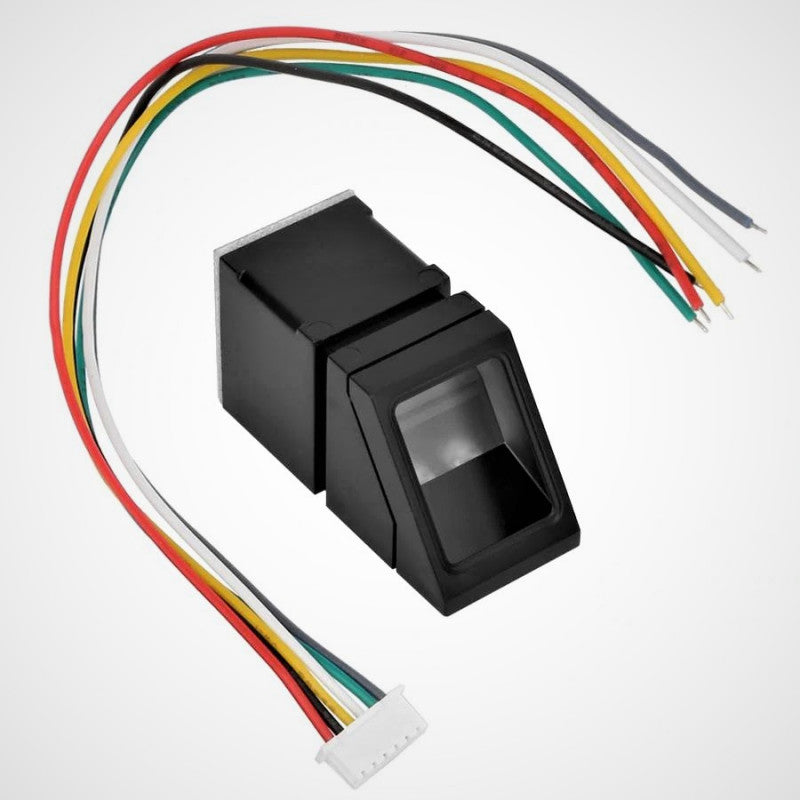

The R307 Fingerprint Sensor Module is a high-performance optical fingerprint reader designed for secure biometric authentication in embedded systems and IoT projects. Featuring an onboard DSP processor and built-in flash memory capable of storing up to 1,000 fingerprint templates, this module delivers fast, reliable identification with a low false acceptance rate.
Specifications
| Module Model | R307 |
| Sensor Type | Optical Fingerprint Sensor |
| Resolution | 500 DPI |
| Fingerprint Capacity | Up to 1,000 templates (onboard flash) |
| Matching Speed | < 1 second (1:1 verification) |
| False Acceptance Rate (FAR) | < 0.001% |
| False Rejection Rate (FRR) | < 1.0% |
| Image Capture Surface | 15 x 18 mm sensing area |
| Communication Interface | UART / TTL Serial (default baud rate 57600 bps) |
| Operating Voltage | 3.3V DC (logic level 3.3V TTL) |
| Supply Current | ~65 mA (typical during scanning) |
| Backlight | Built-in green/red LED indicator |
| Connector | JST-type 4-pin connector with wire harness |
| Dimensions | Approx. 55 x 32 x 21.5 mm |
| Operating Temperature | -20 degreesC to +50 degreesC |
| Compatible Platforms | Arduino, Raspberry Pi, ESP32, ESP8266, STM32, PIC, and other UART-capable microcontrollers |
| Library Support | Adafruit Fingerprint Sensor Library (Arduino IDE), Python (pyfingerprint) for Raspberry Pi |
| Origin | Original / Authentic |
Why Choose Finger Print Sensor Module - R307?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Finger Print Sensor Module - R307
- High-Resolution Optical Sensor: 500 DPI imaging captures detailed fingerprint patterns for accurate enrollment and matching.
- Onboard DSP Processing: Built-in processor handles fingerprint image capture, feature extraction, template generation, and matching-no external processing required.
- Large Template Storage: Internal flash memory stores up to 1,000 fingerprint templates, enabling standalone operation without a host database.
- Fast Verification: Completes 1:1 matching in under 1 second and 1:N search efficiently across the stored database.
- Ultra-Low False Acceptance Rate: FAR below 0.001% ensures robust security against unauthorized access.
- Simple UART Interface: 4-wire serial connection (VCC, GND, TX, RX) makes integration straightforward with virtually any microcontroller.
- 3.3V Logic Level: Directly compatible with 3.3V platforms like ESP32 and Raspberry Pi; works with 5V Arduino boards via the included wiring harness.
- LED Status Indicator: Built-in backlight illuminates the scanning window, providing visual feedback during enrollment and verification.
- Compact Form Factor: Small footprint (55 x 32 mm) fits easily into enclosures, door locks, attendance systems, and portable devices.
- Well-Documented Protocol: Comprehensive command set for enrollment, search, deletion, and system parameter configuration via serial packets.
Perfect For
- Biometric Door Lock System: Pair the R307 with an Arduino or ESP32 and a solenoid/electric strike to build a fingerprint-activated smart lock for home or office security.
- Employee Attendance System: Combine the sensor with a real-time clock module, LCD display, and SD card or cloud connectivity to create an automated attendance tracker.
- IoT-Enabled Access Control: Integrate with ESP8266/ESP32 and a web dashboard to manage fingerprint enrollment, access logs, and remote lock/unlock over Wi-Fi.
- Secure Locker
