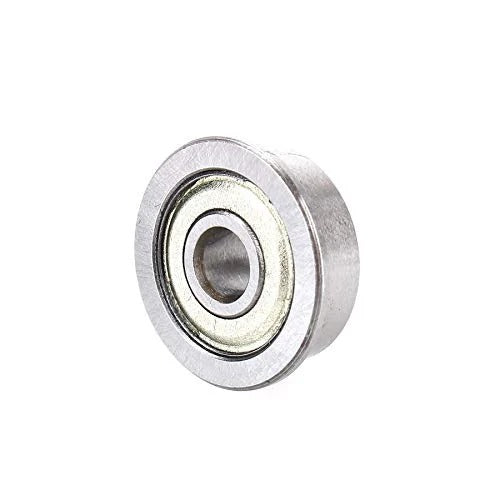

F604ZZ Flanged Shielded Ball Bearing
F604ZZ Flanged Shielded Ball Bearing
F604ZZ Flanged Shielded Ball Bearing
High-quality miniature flanged ball bearing from The Tech Depot, Bengaluru. Precision-engineered with double metal shields for reliable, low-friction rotary motion in compact mechanical assemblies. Fast shipping, expert support.
Specifications
| Type | Flanged Miniature Ball Bearing (Deep Groove) |
| Model | F604ZZ |
| Bore Diameter (d) | 4 mm |
| Outer Diameter (D) | 12 mm |
| Flange Diameter | 13.5 mm (approx.) |
| Width (B) | 4 mm |
| Shielding | ZZ - Double Metal Shielded |
| Material | Chrome Steel (GCr15 / AISI 52100) |
| Ball Material | Chrome Steel |
| Cage Material | Steel / Nylon |
| Lubrication | Pre-lubricated with Grease |
| Precision Rating | ABEC-1 / ABEC-3 |
| Dynamic Load Rating | ~950 N |
| Static Load Rating | ~340 N |
| Max Speed | ~30,000 RPM |
| Operating Temperature | -20 degreesC to +120 degreesC |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Integrated Flange: Built-in flange acts as a locating shoulder, eliminating the need for a separate retaining fixture and simplifying mounting in through-hole housings.
- Double Metal Shields (ZZ): Two pressed-steel shields on both sides protect internal components from dust, debris, and contaminants - extending service life in workshop and prototyping environments.
- Miniature 604 Series: Compact 4 mm bore x 12 mm OD footprint fits tight spaces commonly found in 3D printers, small CNC machines, and robotic joints.
- Pre-Lubricated: Factory-filled grease ensures smooth, quiet operation right out of the package with minimal break-in required.
- High-Speed Capable: Rated for speeds up to approximately 30,000 RPM, suitable for motorized spindles, fans, and high-RPM hobby applications.
- Chrome Steel Construction: GCr15 bearing steel delivers excellent hardness, wear resistance, and dimensional stability under load.
Why Choose This?
- 100% authentic bearings sourced from trusted, quality-verified suppliers
- Flanged design reduces assembly complexity - no snap rings or retaining clips needed
- Ideal drop-in replacement for standard F604ZZ bearings used across popular 3D printer and CNC designs
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse to most of India
- Expert technical support to help you select the right bearing for your application
Common Applications & Project Ideas
- 3D Printers: Widely used on idler pulleys, extruder assemblies, and motion axes in popular printers like Ender 3, Prusa i3 MK3, Voron, and custom CoreXY builds.
- CNC Machines & Laser Cutters: Smooth guide-wheel bearings for V-slot and linear rail gantry systems in desktop CNC routers and engravers.
- Robotics & RC Vehicles: Low-friction pivot points for robotic arms, pan-tilt mechanisms, steering linkages, and wheel hubs in small-scale robots and RC cars.
- DIY Motorized Projects: Shaft support bearings for small motors, spindles, fans, conveyor rollers, and custom mechanical assemblies.
- Learning & Education: Excellent hands-on component for mechanical engineering students studying bearing selection, fits and tolerances, and rotary motion systems.
What's in the Box
- 1 x F604ZZ Flanged Shielded Ball Bearing (4 x 12 x 4 mm)
- Factory packaging with protective coating
Frequently Asked Questions
Is this a genuine, quality-grade bearing?
Yes. Every F604ZZ bearing we sell is sourced from verified manufacturers and inspected for dimensional accuracy and smooth rotation before dispatch.
What is the difference between F604ZZ and a standard 604ZZ?
The "F" prefix indicates a flange - a thin lip extending beyond the outer diameter. This flange sits against the face of a housing or plate, preventing the bearing from pushing through and eliminating the need
