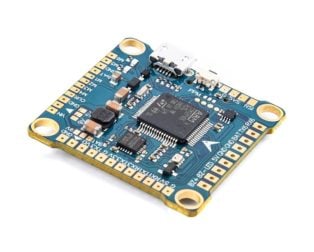

F4 V3S Plus Flight Control OSD 2-6S Two way 3A BEC 9V Pad Design For Betaflight RC FPV Racing Drone Quadcopter Frame

The F4 V3S Plus is a high-performance flight control board specifically engineered for competitive FPV racing drones, featuring integrated OSD (On-Screen Display) capabilities and dual BEC outputs for stable power distribution. Professional FPV racing pilots and drone enthusiasts utilize this flight controller to achieve precise flight dynamics, low-latency gyroscope response, and real-time telemetry visualization during high-speed racing maneuvers. This product solves the critical challenge of managing multiple power rails in compact racing frames while maintaining gyroscopic stability and providing essential flight data overlay on FPV goggles.

Product Overview

The F4 V3S Plus flight control board represents an advanced iteration of F4 architecture, optimized specifically for Betaflight firmware compatibility and racing drone applications. This controller integrates a 32-bit ARM Cortex-M4 processor running at high clock speeds to deliver rapid gyroscope sampling rates (up to 32kHz) and accelerometer fusion algorithms that ensure responsive attitude correction during aggressive racing maneuvers. The dual BEC (Battery Elimination Circuit) topology provides independent 5V and 9V power rails, enabling simultaneous operation of video transmitters, receivers, and servo systems without voltage sag or brownout conditions that plague single-BEC designs.

The integrated OSD module processes flight telemetry in real-time, overlaying critical flight parameters directly onto the FPV video feed without requiring external OSD boards. The 2-6S LiPo battery compatibility range provides flexibility across different racing frame classes, from lightweight 2S micro-drones to powerful 6S racing quads. The pad design utilizes solder-friendly through-hole and SMD pads arranged in industry-standard layouts, allowing seamless integration with common ESC (Electronic Speed Controller) protocols including DSHOT600, OneShot125, and PWM. Advanced gyroscope filtering algorithms reduce vibration-induced noise from high-RPM propellers, critical for maintaining flight stability during 100+ mph racing speeds.

Key Specifications

Key Features

• Dual BEC Architecture with independent 5V/2A and 9V/3A outputs eliminates voltage regulation conflicts and enables simultaneous powering of video transmitters and receiver systems without performance degradation
• Integrated MAX7456 OSD processor displays real-time flight telemetry including altitude, speed, battery voltage, current draw, and GPS coordinates directly on FPV goggles without external OSD modules
• 32kHz gyroscope sampling rate with advanced noise filtering algorithms provides ultra-responsive flight control during high-speed racing maneuvers and aggressive banking turns
• Betaflight-optimized firmware support with pre-configured PID tuning profiles for racing applications, reducing setup time and improving out-of-box flight stability
• Compact pad design with solder-friendly through-hole connections allows installation in tight racing frames with minimal wiring harness complexity
• Multi-protocol ESC support including DSHOT600 for ultra-low latency motor control and synchronization with gyroscope updates

Applications and Use Cases

• FPV Racing Competitions: Professional and amateur drone racing pilots utilize this board in competitive racing frames where real-time telemetry overlay and responsive flight control are essential for gate navigation and speed optimization
• High-Speed Freestyle Flying: Content creators and freestyle pilots benefit from the integrated OSD for capturing flight data visualization in aerial videos, combined with responsive gyroscope performance for complex 3D maneuvers
• Drone Racing Training: Beginner and intermediate pilots use this controller to develop racing skills with reliable flight stability and telemetry feedback that helps identify control input errors and tuning issues
• Acro Flying and Aerobatic Training: The advanced gyroscope filtering and dual BEC architecture support aggressive acrobatic maneuvers including inverted flight, knife-edge passes, and high-G rolls without voltage sag or control lag

How to Use

Installation begins with careful soldering of the flight controller to your racing frame's power distribution board (PDB) or ESC stack. Connect the battery positive and negative pads to your main power source, ensuring polarity is correct to prevent board damage. Solder the four motor signal wires (M1-M4) to the corresponding ESC outputs, maintaining consistent wire length to minimize signal skew. Connect your receiver to the designated UART or serial pins using appropriate protocol configuration in Betaflight configurator (SBUS, PPM, or IBUS depending on your receiver type).

For OSD functionality, connect your video transmitter's video input to the OSD output pad, and ensure the 9V BEC output is connected to power your video transmitter. Flash the latest Betaflight firmware using the Betaflight Configurator software, then calibrate your accelerometer and gyroscope through the configurator interface. Configure your motor directions and ESC protocol (DSHOT600 recommended for racing), then adjust PID tuning parameters based on your frame weight and propeller size. Test all four motors individually in the motor test tab before flying, and verify OSD telemetry display through your FPV goggles before attempting any flight operations.
