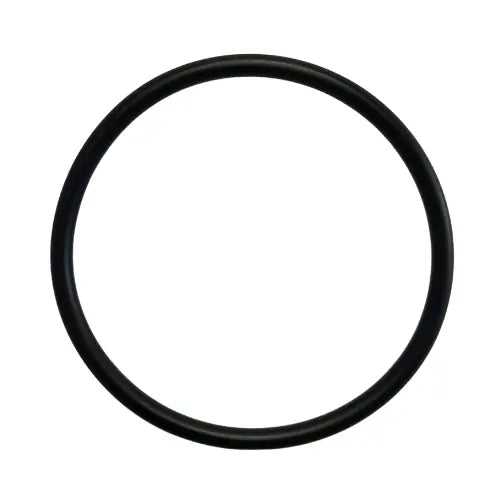

Evolis ribbon smooth belt
Evolis ribbon smooth belt
Evolis ribbon smooth belt
The Evolis ribbon smooth belt is a precision-engineered transfer component designed for card personalization and printing systems, specifically engineered to ensure smooth, friction-free card movement through thermal transfer and direct-to-card printing mechanisms. Professional card issuance operators, government ID centers, banking institutions, and corporate credential printing departments rely on this component to maintain consistent card feed rates and prevent jams during high-volume production runs. This belt solves critical alignment and wear issues that cause card misfeeds, print quality degradation, and system downtime in mission-critical identity and payment card production environments.
Product Overview
The Evolis ribbon smooth belt is a critical transport mechanism within Evolis card printers that facilitates seamless ribbon advancement and card positioning during the printing cycle. The belt operates on a closed-loop drive system, utilizing precision-molded elastomer material with optimized surface texture to minimize friction coefficients while maximizing grip on both ribbon spools and card guides. The smooth belt design reduces mechanical stress on the ribbon, preventing stretching and ensuring consistent ink transfer across the entire card surface. This component is manufactured to ISO 9001 certified standards with tight tolerance specifications that guarantee compatibility with Evolis printer models including Avansia, Primacy, and Tattoo series systems.
What distinguishes the Evolis ribbon smooth belt from generic alternatives is its proprietary elastomer compound formulation, which maintains dimensional stability across temperature ranges of 15-35 degrees Celsius and humidity levels up to 90 percent RH. The belt's surface finish is engineered to provide optimal grip without causing ribbon edge fraying or card surface scratching. Unlike standard rubber belts that degrade and harden after 500-1000 operating hours, the Evolis smooth belt maintains consistent performance characteristics for extended operational periods, reducing total cost of ownership and minimizing unscheduled maintenance windows in production facilities.
Key Specifications
| Specification | Details |
| Product Type | Ribbon Transfer Smooth Belt Assembly |
| Brand | Evolis |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Material Composition | Precision-molded elastomer with reinforced core |
| Operating Temperature Range | 15-35 degrees Celsius |
| Humidity Tolerance | Up to 90 percent RH |
| Service Life | 2000-3000 operating hours |
| Compatibility | Evolis Avansia, Primacy, Tattoo series printers |
Key Features
- Precision elastomer surface engineered to eliminate friction-induced ribbon stretching and card surface micro-scratches during transport cycles
- Optimized grip coefficient ensures reliable ribbon advancement at consistent speeds from 50-150mm per second without slippage or misalignment
- Temperature-stable compound maintains mechanical properties across 15-35 degree Celsius operating range, preventing belt hardening or softening that causes feed inconsistencies
- ISO 9001 certified manufacturing process with dimensional tolerances of plus-minus 0.1mm ensures drop-in compatibility with Evolis printer drive mechanisms
- Extended service life of 2000-3000 operating hours reduces replacement frequency and associated downtime in high-volume production environments
- Smooth surface finish prevents edge fraying on thermal transfer ribbons and eliminates card surface contamination that degrades print quality
Applications and Use Cases
- Government identity document production facilities requiring reliable card transport mechanisms for passport, driver license, and national ID card personalization systems operating at 500-1000 cards per day
- Banking sector credential issuance centers utilizing Evolis printers for debit card, credit card, and prepaid card personalization with zero-tolerance for card jams or print misalignment
- Corporate access control and employee badge printing departments requiring consistent card feed for multi-color direct-to-card printing with embedded security features and holographic elements
- Educational institution student ID card production systems operating in batch mode with mixed card stock types, requiring reliable ribbon advancement across thermal transfer and direct-to-card printing cycles
How to Use
Installation of the Evolis ribbon smooth belt requires accessing the printer's ribbon cartridge assembly, typically located beneath the card input hopper. Power down the printer completely and allow thermal components to cool for 15 minutes before beginning replacement procedures. Locate the belt drive mechanism by removing the ribbon cartridge access panel, identify the worn or damaged belt, and carefully disengage it from both the motor drive pulley and the ribbon spool guide rollers. Inspect the drive pulley and guide rollers for debris, dust accumulation, or mechanical damage that may have caused premature belt wear, and clean these surfaces with a dry, lint-free cloth before installing the replacement belt.
Position the new Evolis ribbon smooth belt around the motor drive pulley first, ensuring the belt sits flush against the pulley surface without twisting. Carefully thread the belt around the ribbon spool guide rollers, maintaining consistent tension without over-stretching the elastomer material. Reinstall the ribbon cartridge and close the access panel, then power on the printer and run a test cycle with a blank card to verify smooth belt operation. Monitor the first 10-15 cards for any signs of misalignment, ribbon advancement irregularities, or card surface scratching. If the printer displays ribbon tension error messages after installation, power cycle the device and recalibrate the ribbon advance mechanism using the printer's maintenance menu.
Frequently Asked Questions
How do I identify if my Evolis ribbon smooth belt requires replacement?
Replace the ribbon smooth belt when you observe visible wear patterns including surface cracking, hardening, loss of elasticity, or when the printer generates ribbon advance error messages despite correct ribbon cartridge installation. Additional indicators include card jams during ribbon positioning cycles, inconsistent ribbon speed causing print misalignment, or visible belt slippage on the drive pulley. Most Evolis smooth belts require replacement after 2000-3000 operating hours or approximately 18-24 months of continuous daily operation in high-volume production facilities.
Is the Evolis ribbon smooth belt compatible with all Evolis printer models?
The Evolis ribbon smooth belt is compatible with Avansia, Primacy, and Tattoo series printers. However, verify your specific printer model before ordering, as earlier generation Evolis systems may utilize different belt specifications. Check your printer's serial number and model designation on the device's rear panel or in the system settings menu under Device Information. If you are uncertain about compatibility, contact our technical support team with your printer model number, and we will confirm the correct belt specification for your system.
What is the difference between smooth belt and textured belt options for Evolis printers?
The Evolis ribbon smooth belt features a polished elastomer surface optimized for minimal friction and maximum ribbon advancement consistency, making it ideal for thermal transfer ribbon applications where ribbon stretching must be prevented. Textured belt variants provide enhanced grip for direct-to-card printing applications where card positioning precision is critical. The smooth belt design reduces mechanical stress on delicate thermal transfer ribbons and prevents edge fraying, while textured belts are engineered for higher friction coefficients to prevent card slippage during direct printing cycles. Select the smooth belt for thermal transfer ribbon printing and textured variants for direct-to-card printing applications.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
