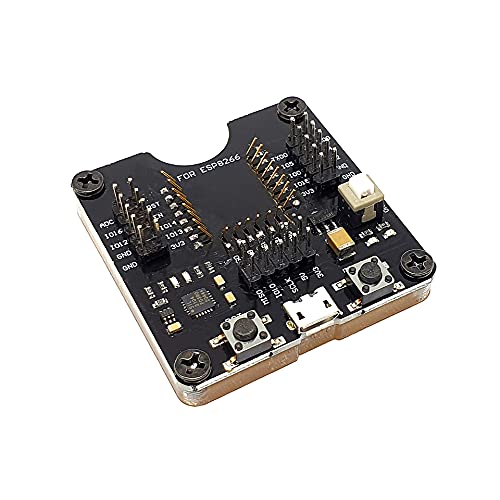

ESP8266 Wroom Downloader
ESP8266 Wroom Downloader
ESP8266 Wroom Downloader
Program your ESP8266 Wroom modules effortlessly with this dedicated USB downloader board from The Tech Depot, Bengaluru. Designed for seamless firmware flashing, this downloader provides reliable USB-to-serial conversion with auto-reset circuitry, eliminating the need for manual boot mode switching. Fast shipping, 7-day warranty on manufacturing defects, and expert support included.
Specifications
| Type | USB-to-Serial Programmer / Downloader Board |
| Compatible Module | ESP8266 Wroom (ESP-12E/ESP-12F and compatible variants) |
| USB-to-Serial Chip | CH340G / CP2102 (common variants) |
| Interface | Micro USB / USB Type-C (varies by version) |
| Baud Rate Support | Up to 921600 bps |
| Auto-Reset Circuit | Yes - DTR/RTS auto-program mode entry |
| Operating Voltage | 3.3V regulated output for ESP8266 |
| USB Power Output | 5V from USB, onboard 3.3V regulator |
| Pin Breakout | TX, RX, GND, 3.3V, GPIO0, RST, EN |
| LED Indicators | Power LED, TX/RX activity LEDs |
| Driver Support | Windows, macOS, Linux |
| IDE Compatibility | Arduino IDE, PlatformIO, ESP Flash Download Tool, esptool.py |
| Board Dimensions | Compact form factor, plug-and-play design |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- One-Click Flashing: Auto-reset circuitry using DTR and RTS signals automatically puts the ESP8266 into boot mode - no need to manually press FLASH and RESET buttons.
- Reliable USB-to-Serial Conversion: Built around a proven CH340G or CP2102 chip for stable, high-speed serial communication up to 921600 baud.
- Onboard 3.3V Regulator: Provides clean, regulated 3.3V power directly to the ESP8266 Wroom module during programming and debugging.
- Plug-and-Play Design: Header pin layout matches ESP8266 Wroom module pinout for direct connection or breadboard-friendly wiring.
- TX/RX Activity LEDs: Visual feedback during data transfer helps confirm active communication and troubleshoot connection issues.
- Cross-Platform Driver Support: Works seamlessly on Windows, macOS, and Linux with freely available drivers.
- Compact and Portable: Small footprint makes it easy to carry in your toolkit and use across multiple projects.
Why Choose This?
- 100% authentic downloader board sourced from trusted suppliers
- Eliminates manual boot mode entry - saves time and reduces programming errors
- Fully compatible with Arduino IDE, PlatformIO, and Espressif's official flash tools
- Stable 3.3V power delivery prevents brownout issues during firmware uploads
- 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse across India
- Expert technical support to help you set up drivers, configure your IDE, and start programming
How It Works
- Step 1 - Install Drivers: Download and install the CH340G or CP2102 USB driver for your operating system.
- Step 2 - Connect the Module: Wire the ESP8266 Wroom module to the downloader board using TX, RX, GND, 3.3V, GPIO0, RST, and EN pins (or use the direct-mount header if available).
- Step 3 - Configure Your IDE: In Arduino IDE, select "Generic ESP8266 Module" as the board, choose the correct COM port, and set the upload speed.
- Step 4 - Upload Firmware: Click the upload button. The auto-reset circuit handles boot mode entry automatically, and your sketch is flashed to the ESP8266.
- Step 5 - Serial Monitor: Use the same USB connection to open the Serial Monitor for debugging and real-time data output from your ESP8266 project.
Project Ideas
- IoT Sensor Nodes: Flash custom firmware to ESP8266 modules for Wi-Fi-connected temperature, humidity, motion, or air quality sensors reporting to cloud dashboards.
- Home Automation Controllers: Program ESP8266 modules to control relays, smart switches, and appliances via MQTT, Blynk, or Home Assistant.
- Weather Station: Upload code to collect and transmit weather data from BME280, BMP180, or DHT22 sensors to ThingSpeak or custom web servers.
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
