Buy ESP32 Development Board(30 Pin) Online in India

Name: ESP32 Development Board(30 Pin)
Brand: The Tech Depot
SKU: TTD-18069
Price: 855.84 INR
Availability: InStock

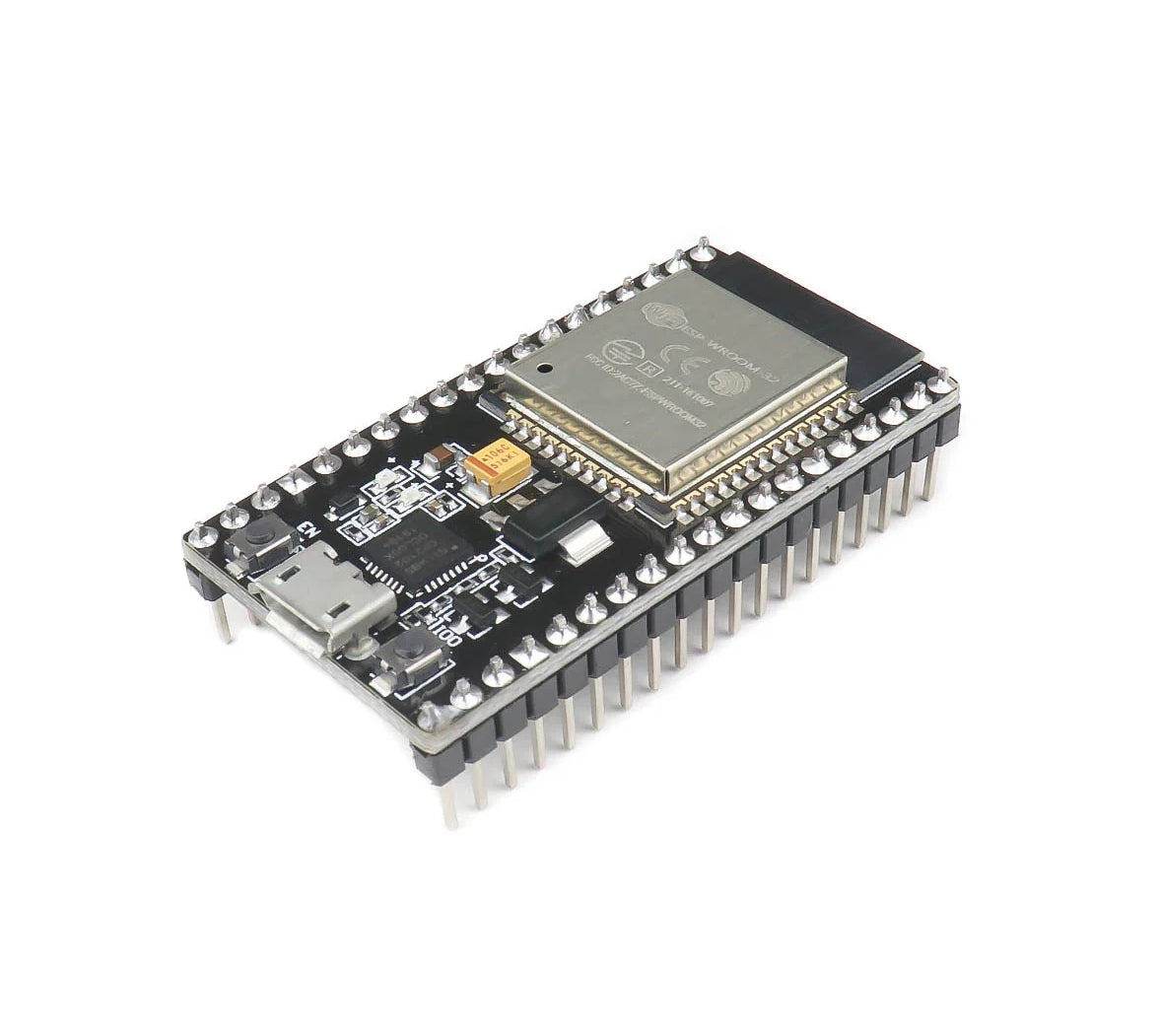

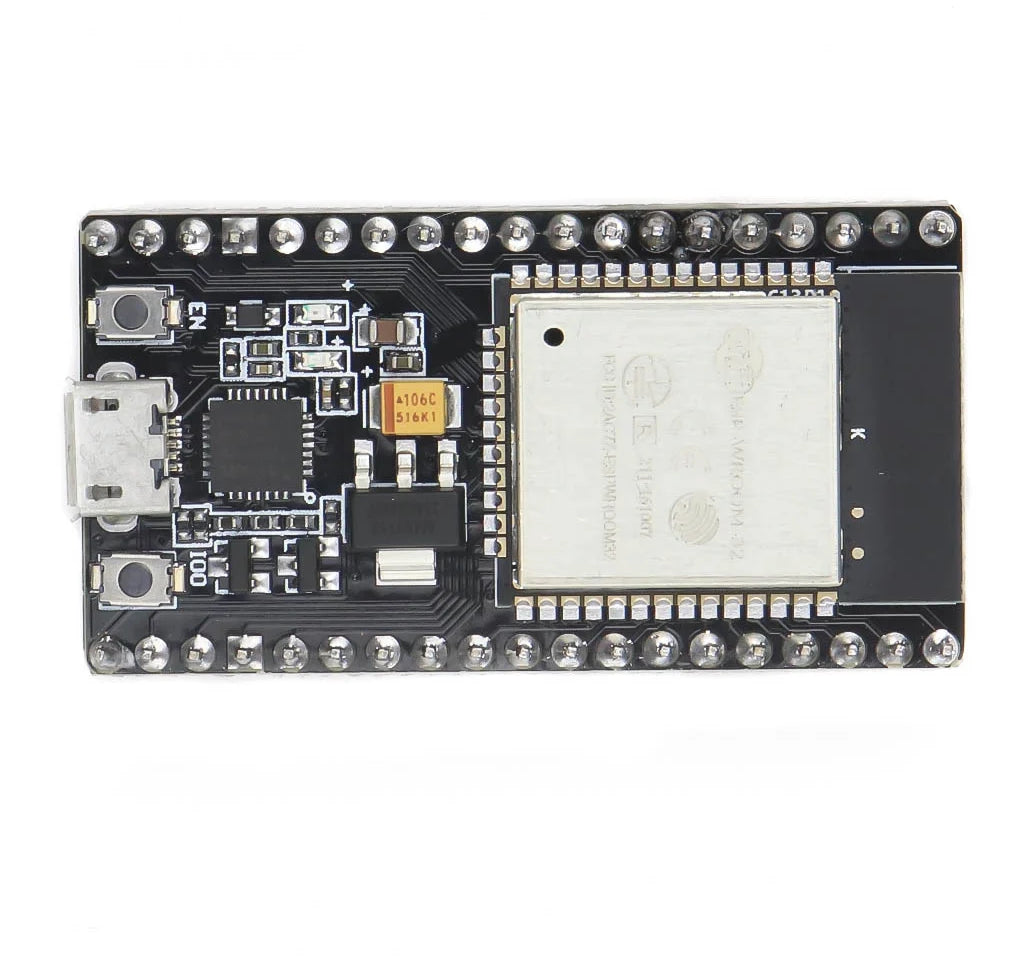

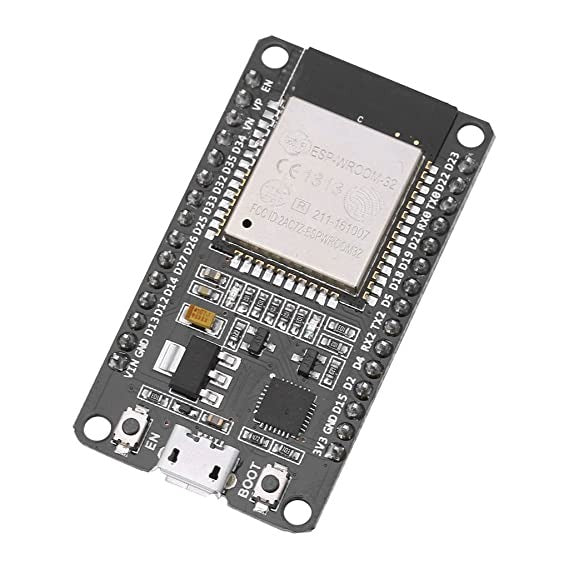

ESP32 Development Board(30 Pin)

Rs. 855.84

ESP32 Development Board(30 Pin)

Rs. 855.84

TTD-18069

🚚 Delivery in 8–10 days

In stock

Shipping calculated at checkout.

Check availability on WhatsApp Confirm live stock and delivery time for your pincode before ordering.

Looking to buy ESP32 Development Board(30 Pin) at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.

Specifications

Microcontroller	ESP32-WROOM-32 (Xtensa Dual-Core 32-bit LX6)
Clock Speed	Up to 240 MHz
Flash Memory	4 MB
SRAM	520 KB
Wi-Fi	802.11 b/g/n (2.4 GHz), up to 150 Mbps
Bluetooth	Bluetooth v4.2 BR/EDR and BLE
GPIO Pins	30 pins (25 GPIO available)
ADC Channels	Up to 18 channels (12-bit resolution)
DAC Channels	2 channels (8-bit)
Communication Interfaces	SPI, I2C, I2S, UART, CAN 2.0, SDIO
PWM Outputs	16 channels
Touch Sensor Pins	10 capacitive touch GPIOs
Operating Voltage	3.3 V (logic level)
Input Power	5 V via Micro-USB or VIN pin
USB-to-Serial Chip	CP2102 / CH340 (auto-download circuit)
Board Dimensions	~51 mm x 25.5 mm
Pin Pitch	2.54 mm (breadboard compatible)
Operating Temperature	-40 degreesC to +85 degreesC
Programming Environment	Arduino IDE, ESP-IDF, MicroPython, PlatformIO
Origin	Original / Authentic Module

Why Choose ESP32 Development Board(30 Pin)?

100% Authentic

GST Invoice - A GST invoice is included with every order.

Expert Support - Dedicated technical help on WhatsApp and email.

Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.

Trusted by Makers - Used by students, hobbyists and professionals nationwide.

Key Features of ESP32 Development Board(30 Pin)

Dual-Core Processing: Two Xtensa LX6 cores running at up to 240 MHz deliver ample processing power for multitasking - run your Wi-Fi stack on one core and your application logic on the other.
Integrated Wi-Fi & Bluetooth: Built-in 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 (Classic + BLE) eliminate the need for external wireless modules, reducing cost and board space.
Rich Peripheral Set: Access up to 25 GPIOs, 18 ADC channels, 2 DAC channels, 16 PWM outputs, 10 capacitive touch inputs, SPI, I2C, I2S, UART, and CAN bus - all on a compact 30-pin form factor.
Ultra-Low Power Modes: Deep sleep current as low as 10 uA makes the ESP32 ideal for battery-powered and energy-harvesting IoT applications.
Breadboard Friendly: The 30-pin layout with standard 2.54 mm pitch fits directly onto standard breadboards for quick prototyping without adapters.
Compact 30-Pin Form Factor: Smaller footprint compared to the 38-pin variant - perfect for space-constrained projects while still exposing all essential GPIOs.
Built-In Security: Hardware-accelerated AES, SHA-2, RSA, ECC, and secure boot ensure your IoT devices and data transmissions stay protected.
On-Board USB-to-Serial: CP2102 or CH340 chip with auto-program circuit means plug-and-play uploading - no manual boot-mode button pressing required.
Multi-Platform Support: Program with Arduino IDE, Espressif's ESP-IDF, MicroPython, or PlatformIO - choose the environment that fits your workflow.
On-Board Antenna: PCB trace antenna integrated into the module provides reliable wireless range without external antenna components.
Massive Community & Resources: Thousands

ESP32 Development Board (30 Pin)

Unleash the power of Wi-Fi and Bluetooth in your projects with the ESP32 Development Board (30 Pin). Built around the powerful ESP32-WROOM-32 module, this compact 30-pin board delivers dual-core processing, integrated wireless connectivity, and a rich set of peripherals - making it the go-to choice for IoT, home automation, wearable tech, and rapid prototyping.
