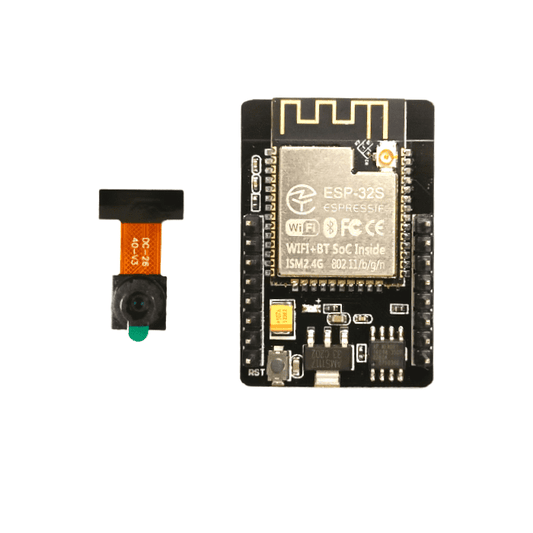

ESP32 Camera Module (ESP32-CAM) - Wi-Fi + Bluetooth with OV2640 Camera
Build smart surveillance systems, face detection projects, and IoT camera applications with the ESP32-CAM module. This compact, powerful board combines the dual-core ESP32 processor with a 2MP OV2640 camera, onboard Wi-Fi, Bluetooth, and a microSD card slot - all at an unbeatable price. Available now at The Tech Depot, Bengaluru, with fast shipping and full technical support.
Key Specifications
| Microcontroller | ESP32-S (Dual-core Xtensa 32-bit LX6, up to 240 MHz) |
| Camera Sensor | OV2640 - 2 Megapixel (supports OV7670 as well) |
| Image Resolution | Up to 1600 x 1200 (UXGA) |
| Image Output Formats | JPEG, BMP, Grayscale |
| Flash Memory | 4 MB (32 Mbit) SPI Flash |
| SRAM | 520 KB internal + 4 MB external PSRAM |
| Wi-Fi | 802.11 b/g/n (2.4 GHz), supports STA/AP/STA+AP modes |
| Bluetooth | Bluetooth 4.2 BR/EDR + BLE |
| Storage Slot | MicroSD card (up to 4 GB supported) |
| Onboard LED Flash | High-brightness white LED for low-light capture |
| GPIO Pins | 9 usable GPIO pins (some shared with camera/SD) |
| UART Interface | Via U0TXD (GPIO 1) and U0RXD (GPIO 3) - for programming |
| Operating Voltage | 5V (via 5V pin) or 3.3V regulated onboard |
| Deep Sleep Current | ~6 mA (camera off) |
| Board Dimensions | 27 mm x 40.5 mm x 4.5 mm (ultra-compact) |
| Antenna | Onboard PCB antenna (IPEX connector available on some variants) |
| Programming | Requires external USB-to-TTL adapter (FTDI/CP2102) - not included |
| Supported Frameworks | Arduino IDE, ESP-IDF, MicroPython, PlatformIO |
| Type | IoT Camera & Development Module |
| Origin | Original / Authentic - Quality Verified |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 Technical Assistance |
Features & Highlights
- 2MP OV2640 Camera: Captures still images up to 1600x1200 and streams video over Wi-Fi at adjustable resolutions and frame rates.
- Built-in Wi-Fi & Bluetooth: Stream live video to a browser, send images to a cloud server, or communicate with other BLE devices - no external modules needed.
- 4 MB PSRAM: External pseudo-static RAM enables high-resolution image buffering and smooth JPEG encoding without running out of memory.
- MicroSD Card Slot: Save captured photos and time-lapse sequences directly to a microSD card for offline storage and later retrieval.
- Onboard LED Flash: Built-in high-brightness white LED acts as a camera flash for low-light environments or doubles as a flashlight in projects.
- Ultra-Compact Form Factor: At just 27 x 40.5 mm, it fits inside enclosures, drones, doorbells, and wearable devices with ease.
- Deep Sleep Mode: Draws as little as 6 mA in deep sleep, making it viable for battery-powered and solar-powered deployments.
- Dual-Core 240 MHz Processor: Plenty of processing power to run face detection, motion detection, and image processing algorithms on-device.
- Arduino IDE Compatible: Extensive community libraries and example sketches get you streaming video in under 10 minutes.
- Versatile GPIO: Access spare GPIO pins for connecting sensors, relays, servos, and other peripherals alongside the camera.
Why Choose the ESP32-CAM from The Tech Depot?
- 100% Authentic Components: Sourced directly from authorized distributors - genuine ESP32-S chip and OV2640 sensor guaranteed.
- Quality Tested: Every module is inspected and verified for Wi-Fi connectivity, camera functionality, and flash memory integrity before dispatch.
- 1-5 days shipping: Fast delivery across India from our Bengaluru warehouse. Same-day delivery available within Bengaluru city.
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy ESP32 Camera Module Online in India
Purchase the ESP32 Camera Module online at The Tech Depot - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on ESP32 Camera Module with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy ESP32 Camera Module at the best price in India? The Tech Depot offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
