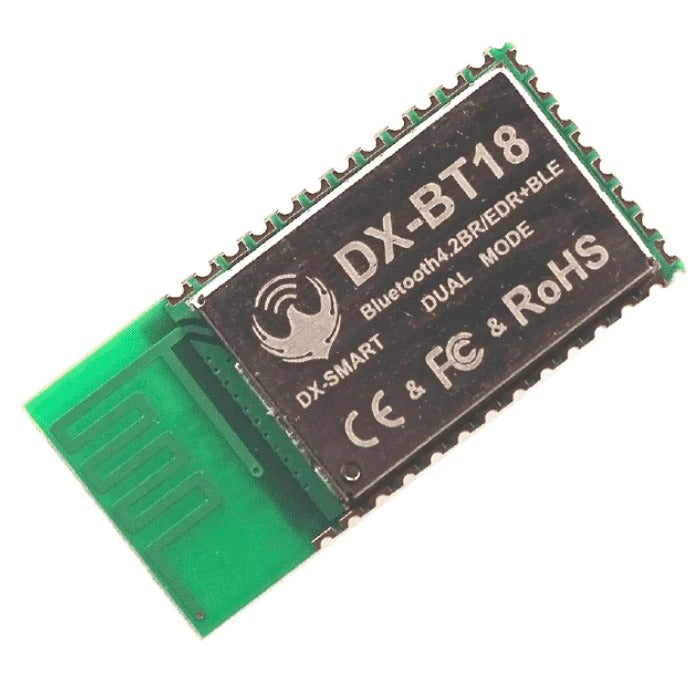

DX-BT18 Bluetooth Module - ORIGINAL
The DX-BT18 is an original, dual-mode Bluetooth module supporting both BLE 4.2 and Classic SPP communication. Designed for seamless wireless data transfer in embedded systems, IoT devices, and microcontroller projects, this compact module offers reliable connectivity with ultra-low power consumption. Available now from The Tech Depot, Bengaluru, with fast shipping and full technical support.
Specifications
| Module | DX-BT18 Bluetooth Dual-Mode Module |
| Bluetooth Version | Bluetooth 4.2 (BLE + Classic SPP) |
| Chipset | BK3432 (or equivalent dual-mode IC) |
| Operating Frequency | 2.4 GHz ISM Band |
| Communication Interface | UART (TTL Level Serial) |
| Default Baud Rate | 9600 bps (configurable via AT commands) |
| Supported Baud Rates | 1200 - 1382400 bps |
| Operating Voltage | 3.3V - 6V DC |
| Logic Level | 3.3V TTL |
| Transmit Power | Up to +4 dBm |
| Communication Range | Up to 10 meters (open air, line of sight) |
| Receiver Sensitivity | -80 dBm typical |
| Operating Current | ~8 mA (active), ~1 mA (standby/sleep) |
| Profiles Supported | SPP (Serial Port Profile), BLE GATT |
| Configuration Method | AT Commands via UART |
| Roles Supported | Master / Slave (configurable) |
| Default Device Name | DX-BT18 |
| Default Pairing PIN | 1234 or 0000 |
| Antenna | Onboard PCB Antenna |
| Dimensions | Approx. 27 mm x 13 mm x 2 mm |
| Pin Count | 6 pins (VCC, GND, TXD, RXD, STATE, EN/KEY) |
| Operating Temperature | -20 degreesC to +75 degreesC |
| Compatibility | Arduino, ESP32, STM32, Raspberry Pi, PIC, and most 3.3V/5V MCUs |
| Mobile Compatibility | Android and iOS (BLE mode for iOS, SPP for Android) |
| Authenticity | 100% Original Module |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 Technical Assistance |
Key Features
- Dual-Mode Bluetooth 4.2: Supports both Classic SPP for legacy Android communication and BLE (Bluetooth Low Energy) for iOS and modern applications in a single module
- Simple UART Interface: Connects directly to any microcontroller via standard TX/RX serial pins - no complex protocol stacks required
- AT Command Configuration: Easily change device name, baud rate, pairing PIN, master/slave role, and other parameters using familiar AT commands
- Ultra-Low Power Consumption: Draws only ~1 mA in standby mode, making it ideal for battery-powered and energy-efficient IoT projects
- Wide Voltage Tolerance: Operates from 3.3V to 6V, allowing direct connection to both 3.3V and 5V systems without additional level shifting in most cases
- iOS and Android Compatible: BLE mode enables communication with iOS apps, while SPP mode works seamlessly with Android serial Bluetooth apps
- Master/Slave Flexibility: Configurable as master or slave, enabling module-to-module communication or phone-to-device pairing
- Compact Form Factor: Tiny PCB footprint fits easily into space-constrained enclosures, wearables, and embedded designs
- Onboard PCB Antenna: No external antenna needed - provides reliable 10-meter range for typical indoor applications
- Drop-In HC-05/HC-06 Upgrade: Pin-compatible replacement for legacy HC-05/HC-06 modules with added BLE capability and iOS support
Pin Configuration
| VCC | Power supply input (3.3V - 6V DC) |
| GND | Ground connection |
| TXD | UART Transmit - connect to MCU RX pin |
| RXD |
